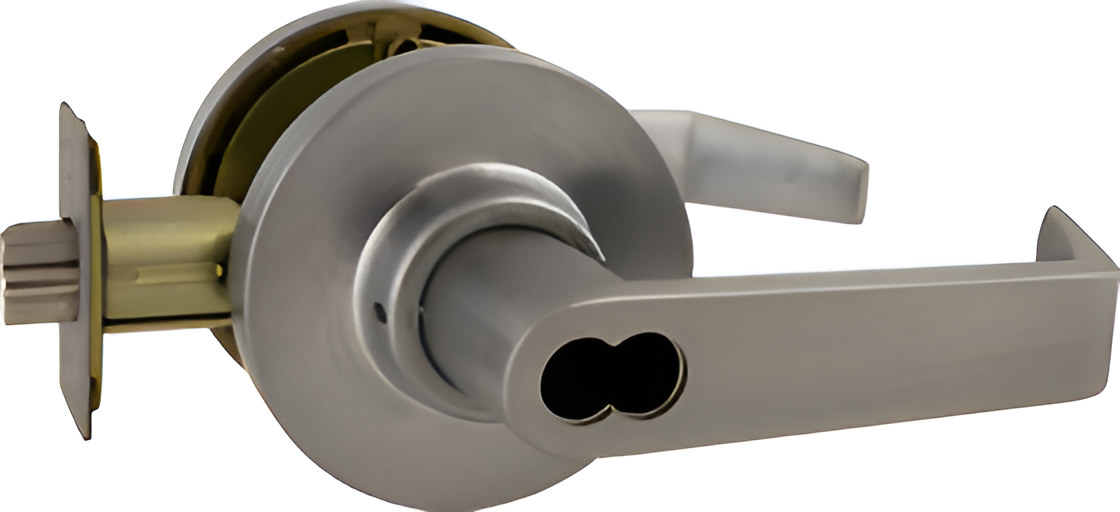

Marks Hardware 175RF26D-3/4 SFIC Storeroom Clutched Lever Lockset, Small Format IC, Satin Chrome, Grade 2

Marks Hardware 175RF26D-3/4 SFIC - Storeroom Clutched Lever Lockset is designed to deliver security and convenience for commercial applications. This Grade 2 lockset features a sturdy satin chrome finish (626/US26D) and is built to withstand the demands of high-traffic environments. With a backset of 2-3/4 inches, this lockset accommodates a variety of door thicknesses ranging from 1-5/8 inches to 1-7/8 inches. The deadlatch includes a 1/2-inch throw and a stainless steel nose, ensuring reliable performance. The solid cast Zamac levers are designed with a 1/2-inch return, providing a balanced aesthetic and functional grip. Engineered for interchangeable core access, the lockset accepts various 6 or 7 pin cores (not included), making it compatible with Marks, Medeco®, Schlage®, and Best® keyways. Installation is straightforward, featuring thru-bolted roses with a 3-1/4-inch diameter and spring-loaded mechanisms for added durability. This model is UL listed for a 120-minute fire rating, providing peace of mind in emergency situations. Ideal for storerooms, classrooms, and other secure areas, the Marks Hardware 175RF26D-3/4 SFIC Lockset combines quality craftsmanship with versatile functionality, making it a smart choice for professionals seeking reliable locking solutions.

SFIC - Storeroom Clutched Lever Lockset, Small Format IC, Less Core, 2-3/4in Backset, ANSI Strike, Grade 2, 626/US26D Satin Chrome

Standard & Hi-Security™ IC Core Models: Interchangeable Core models for 6 or 7 pin cores (not included). Accepts: Marks, Marks HI-SECURITY™, Medeco®, KeyMark™, Falcon, Schlage® small format & Best®

• IC Core models: Tailpieces included, core not included.
• Split designs available

Features:

• Backset: 2-3/4"
• Latch #1134, Front: 1-1/8" x 2-1/4"; Throw: 1/2"; Stainless steel nose
• Levers: Solid cast Zamac; w/ 1/2" return (except 370 & 470)
• Roses: Thru-bolted, 3-1/4" dia., spring loaded 2-#10 thru-bolts
• Strike: #1145, ASA strike
• Door thickness: 1-5/8" to 1-7/8"; for 1-3/8" door use K1704 spacer
• Cylinder: Marks "C" keyway, 6 pin w/ 2 keys

Functions:

• Passage
• Privacy
• Patio
• Communicating
• Entry
• Exit
• Classroom
• Storeroom
• Institution
• Vestibule
• Exit
• Corridor
• Service Station Lock
• Hotel
• Dummy Trim Outside
• Full Dummy Trim
