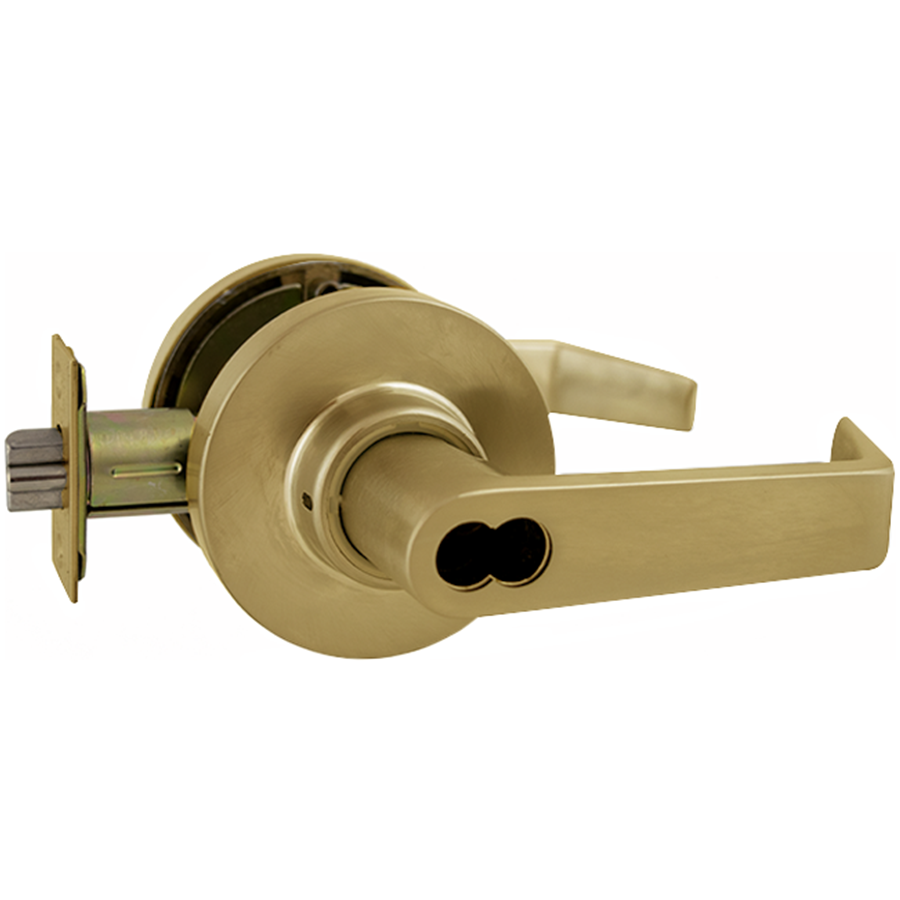

Marks Hardware 175RS3-3/4 SFIC Classroom Clutched Lever Lockset, Less Core, 2-3/4in Backset, Grade 2, Brass

Marks Hardware 175RS3-3/4 SFIC Classroom Clutched Lever Lockset is designed to enhance security and accessibility in educational and commercial settings. This Grade 2 lockset features a robust construction with a polished brass finish (605/US3) that not only offers durability but also adds an elegant touch to any door. Engineered for versatility, the lock set accommodates a 2-3/4 inch backset and is compatible with various interchangeable core models, including Marks and Medeco®. The solid cast Zamac levers provide a comfortable grip, while the spring-loaded roses ensure easy installation with two #10 thru-bolts. The deadlatch mechanism features a 1/2 inch throw, making it ideal for high-traffic areas that require quick access and reliable security. This lockset is suitable for doors with a thickness of 1-5/8 inches to 1-7/8 inches, and it meets ANSI and UL standards for fire safety, boasting a fire rating of 120 minutes. With multiple functions available, including passage, privacy, and classroom options, the Marks Hardware 175RS3-3/4 SFIC lockset is a smart choice for building professionals seeking a reliable, stylish, and functional locking solution.

SFIC - Classroom Clutched Lever Lockset, Small Format IC, Less Core, 2-3/4in Backset, ANSI Strike, Grade 2, 605/US3 Bright Brass

Standard & Hi-Security™ IC Core Models: Interchangeable Core models for 6 or 7 pin cores (not included). Accepts: Marks, Marks HI-SECURITY™, Medeco®, KeyMark™, Falcon, Schlage® small format & Best®

• IC Core models: Tailpieces included, core not included.
• Split designs available

Features:

• Backset: 2-3/4"
• Latch #1134, Front: 1-1/8" x 2-1/4"; Throw: 1/2"; Stainless steel nose
• Levers: Solid cast Zamac; w/ 1/2" return (except 370 & 470)
• Roses: Thru-bolted, 3-1/4" dia., spring loaded 2-#10 thru-bolts
• Strike: #1145, ASA strike
• Door thickness: 1-5/8" to 1-7/8"; for 1-3/8" door use K1704 spacer
• Cylinder: Marks "C" keyway, 6 pin w/ 2 keys

Functions:

• Passage
• Privacy
• Patio
• Communicating
• Entry
• Exit
• Classroom
• Storeroom
• Institution
• Vestibule
• Exit
• Corridor
• Service Station Lock
• Hotel
• Dummy Trim Outside
• Full Dummy Trim
