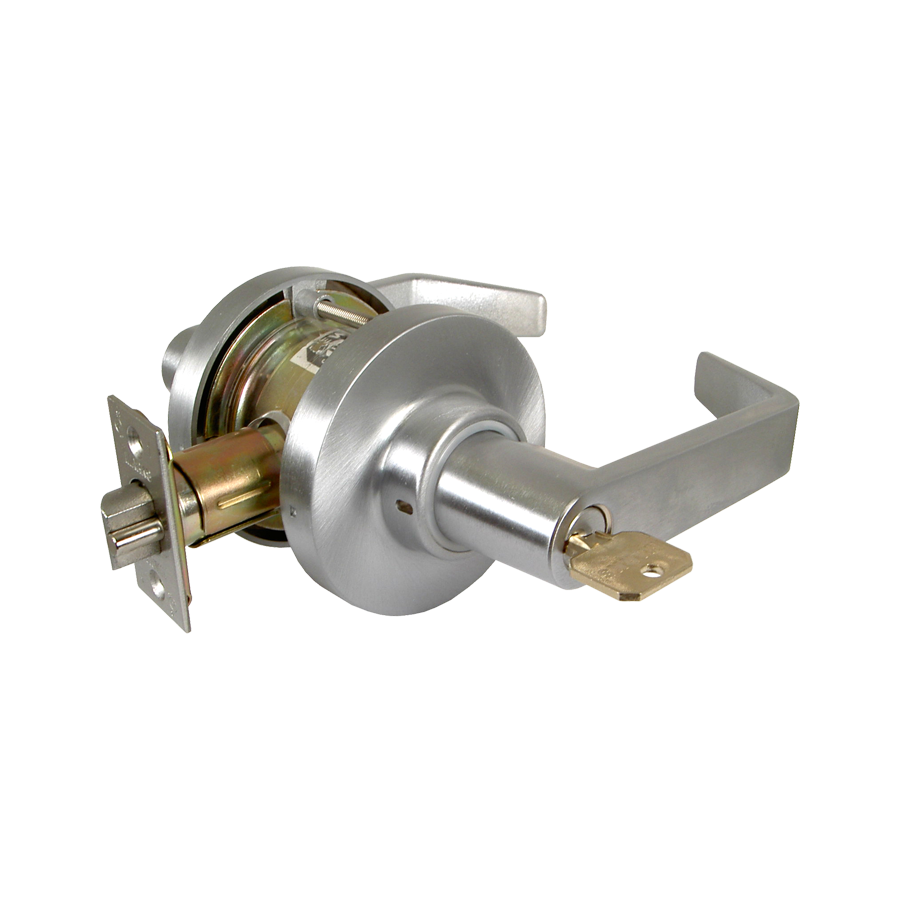

Marks Hardware 175S26D-3/4 Marks C Keyway Classroom Lever Lockset, 6 Pin, Grade 2, Satin Chrome

Marks Hardware 175S26D-3/4 Classroom Clutched Lever Lockset brings reliability and security to educational and commercial environments. Designed with the Marks C keyway, this 6-pin lockset features a 2-3/4" backset and is constructed to meet ANSI Grade 2 standards, ensuring durability and performance. The lockset includes a sturdy latch (#1134) with a 1/2" throw and a stainless steel nose, providing added protection against tampering. The solid cast Zamac levers feature a 1/2" return, while the 3-1/4" diameter thru-bolted roses ensure a secure fit. An ASA strike (#1145) complements the lockset, making it suitable for various door thicknesses ranging from 1-5/8" to 1-7/8". Versatile in function, this lockset accommodates multiple applications, including passage, privacy, communicating, entry, and institutional uses. Its satin chrome finish (626/US26D) not only enhances aesthetics but also offers resistance to wear and tear. Fire-rated for up to 120 minutes, the Marks Hardware 175S26D-3/4 classroom lockset is a dependable solution for maintaining safety and security in any setting. Suitable for a wide array of door applications, this lockset is a smart choice for those prioritizing functionality and style.

Classroom Clutched Lever Lockset, Marks C Keyway, 6 Pin, 2-3/4in Backset, ANSI Strike, Grade 2, 626/US26D Satin Chrome

Standard & Hi-Security™ IC Core Models: Interchangeable Core models for 6 or 7 pin cores (not included). Accepts: Marks, Marks HI-SECURITY™, Medeco®, KeyMark™, Falcon, Schlage® small format & Best®

• IC Core models: Tailpieces included, core not included.
• Split designs available

Features:

• Backset: 2-3/4"
• Latch #1134, Front: 1-1/8" x 2-1/4"; Throw: 1/2"; Stainless steel nose
• Levers: Solid cast Zamac; w/ 1/2" return (except 370 & 470)
• Roses: Thru-bolted, 3-1/4" dia., spring loaded 2-#10 thru-bolts
• Strike: #1145, ASA strike
• Door thickness: 1-5/8" to 1-7/8"; for 1-3/8" door use K1704 spacer
• Cylinder: Marks "C" keyway, 6 pin w/ 2 keys

Functions:

• Passage
• Privacy
• Patio
• Communicating
• Entry
• Exit
• Classroom
• Storeroom
• Institution
• Vestibule
• Exit
• Corridor
• Service Station Lock
• Hotel
• Dummy Trim Outside
• Full Dummy Trim
