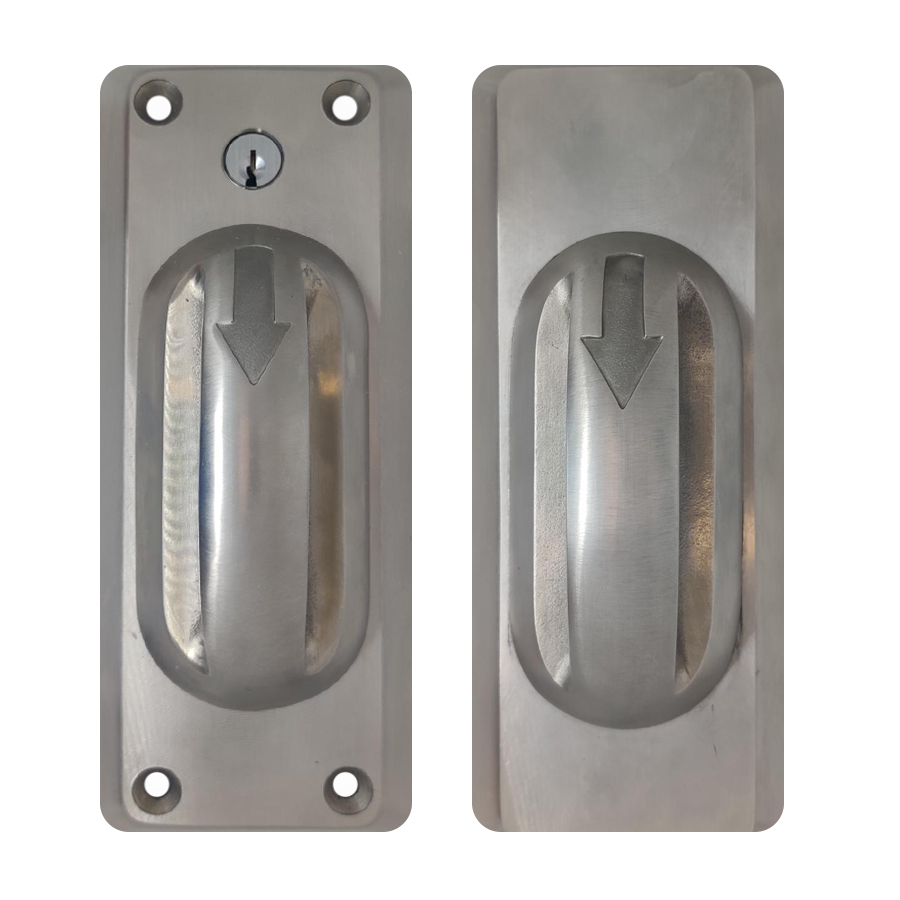

Marks USA has developed LifeSaver ANSI Grade 1 institutional life safety locksets to address managed liability, accident prevention, life safety and security in Behavioral Health Care Institutions, X-ray settings and correctional facilities. LifeSaver offers the most variations; unprecedented cylindrical, mortise styles, models & functions available, including electrified units, ideal for buzz-in and man-trap applications, plus antimicrobial finishes. With easy installation, they retrofit all popular preps and door constructions. All LifeSaver series locks are stainless steel and come with the Marks USA Lifetime Mechanical Warranty.
Attributes
Accessible: No
Ada Compliance: No
Alternate Codes: 195BHB/32D, 195BHB32D
Ansi: A156.2
Ansi Function: F82A
Baa Qualified: Yes
Backset: 2-3/4"
Bolt Projection: 9/16"
Bore Hole Diameter: 2-1/8"
Burglar Rated: No
Category: Commercial Locks, Hospital/Anti-Ligature Lever, Lock Sets
Certifications: A156.2, ANSI, BHMA, UL Listed 3 Hour
Commercial Residential: Commercial
Country of Origin: Usa
Country of origin: USA
Cylinder Type: Conventional
Door Application: Lock Sets
Door Thickness: 1-3/4"
Faceplate Height: 2-1/4"
Faceplate Width: 1-1/8"
Fasteners: Tamper Protection Mounting Screws
Finish: 630/US32D
Finish Code: 630
Finish Color: Satin Stainless Steel
Finish Description: Satin Stainless Steel
Finish Family: Matte Silver
Fire Rated: Yes
Fire Rating: 180 min
Function: Entry
Grade: Grade 1
Handing: Non-Handed
Installation: Commercial
Keying: Keyed Different
Keys: Cut
Latch Bore Diameter: 1"
Latch Throw: 1/2"
Latchbolt Type: Deadlatch
Leverknob Design: BH-D-Lig Slide
Leverknob Design Family: Anti-Ligature Pull
Limited Warranty: Lifetime
Lock Category: 5-Point Ligature Resistant Slide Cylindrical Locksets
Lock Face Size: 2-1/4" x 1-1/8"
Material: Stainless Steel
Mechanical Option: Marks Stainless Steel Retractor
Of Keys: 2
Origin: USA
Pack Qty: 1
Pins: 6
Projection: 3-1/16"
Restrictions: None
Screws: Combination
Series: 195BH LifeSaver
Std Keyway: Schlage C
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 1834A
Std Latch Type: Dead Latch (Guarded)
Std Strike Height: 4-7/8"
Std Strike Number: 1135
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4"
Strike Type: 4-7/8" ASA Curved Lip Strike
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL 10C
Unit of Measure: Each
