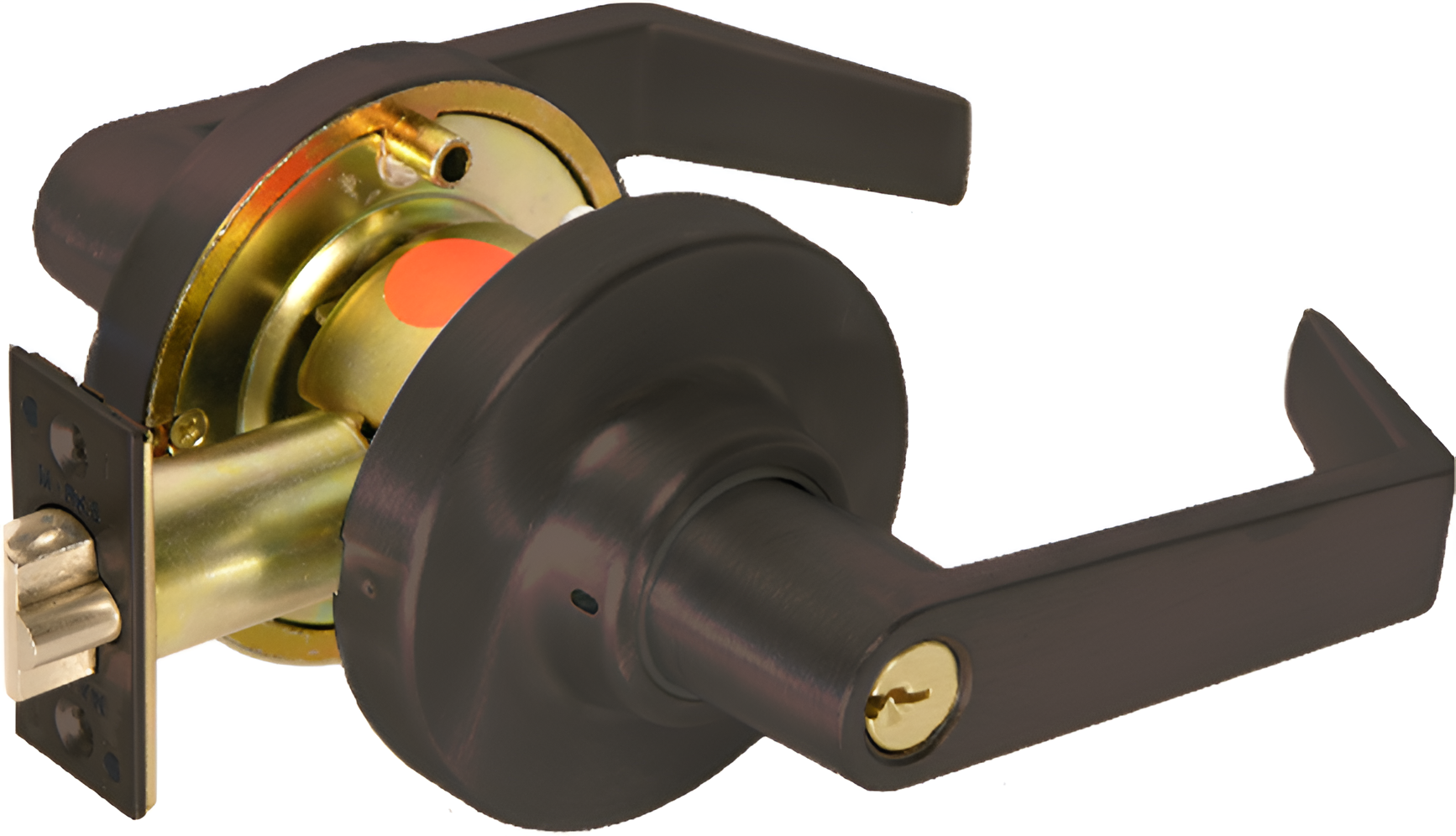

Marks Hardware 195FEU/10B EU 24V Clutched Lever Lockset, Marks C Keyway, Grade 1, Dark Bronze

Marks Hardware 195FEU/10B EU 24V Storeroom Clutched Lever Lockset combines robust security with advanced functionality for commercial environments. This Grade 1 lockset features a Marks "C" keyway with a 6-pin cylinder and comes with two nickel-silver keys, ensuring reliability and ease of access. Designed for durability, the retractor is crafted from cast stainless steel, complemented by bronze roller bearings that provide smooth operation and longevity. The unique clutch mechanism allows the outside lever to turn freely, reducing torque and minimizing wear, a significant advantage over traditional rigid levers prone to failure. This lockset is life-tested for over 6 million cycles, ensuring it remains fully operational even after extensive use. With a torque withstand capacity of 1800 inch-pounds-over double the ANSI/BHMA test standard-you can trust its strength. Installation is simplified with just two thru-bolts and vibration-proof #10 epoxy-coated bolts. The lockset accommodates door thicknesses from 1-5/8" to 1-7/8", and optional backsets are available. It also meets UL standards and is rated for 120 minutes in fire resistance. Ideal for various applications, including storerooms, classrooms, and hospitals, this lockset is the perfect choice for professionals seeking quality security solutions.

EU 24V Storeroom Clutched Lever Lockset, Marks C Keyway, 6 Pin, 2-3/4in Backset, ANSI Strike, Grade 1, 613/US10B Dark Bronze

The Grade 1 Survivor is supplied with 6 pin cylinders in Marks "C" keyway with 2 nickel-silver keys. The retractor is cast stainless steel with bronze roller bearings for ultra-high strength, smooth operation & long life. When locked, the Survivor’s clutch disengages the outside lever allowing it to turn freely without opening the latch. This reduces the torque applied to the outside lever. Other locksets with Rigid levers are prone to failure because of excessive torque.

• Withstands torque of 1800 inch-pounds; over twice ANSI/BHMA (1996) test value
• Life tested over 6 million cycles; Fully operational after these tests
• Thru-bolting with #10 epoxy coated bolts assures vibration-proof mounting
• Only two thru-bolts for easy installation
• Breakaway handles (American & Crescent design) protect against excessive abuse

Features:

• Backset: 2-3/4"; 2-3/8", 3-3/4" & 5" Optional
• Latch #1834, Front: 1-1/8" x 2-1/4"; Throw: 9/16"; Stainless steel nose
• Levers: Solid cast Zamac w/ 1/2" return
• Rose: Thru-bolted, 3-7/16" dia., spring loaded 2-#10 thru-bolts
• Strike: #1135, 4-7/8" ASA curved lip
• Door thickness: 1-5/8" to 1-7/8" (For 1-3/8" door use K1704 spacer.)
• Cylinder: Marks C keyway, 6 pin w/ 2 keys or IC Core housing
• Electrified functions - 100% duty cycle, 24V/AC supplied with bridge rectifier; 24V/DC, .21 Amps
• 12V/DC Optional, Contact factory for additional options
• Request to Exit Switch: Single pole, double throw, 3 amp,125 AC, wired either normally open or normally closed (REX Switch is not standard on electrified leverset)
• Features "The Clutch"
• UL Listed, 3 hour fire rated

Functions:

• Passage
• Privacy
• Patio
• Communicating
• Entry
• Exit
• Classroom
• Storeroom
• Institution
• Vestibule
• Corridor
• Store Door
• Hospital/Privacy
• Service Station Lock
• Classroom Intruder
• Dummy Trim Outside
• Full Dummy Trim
• Communicating Passage
• Communicating Storeroom
• Communicating Classroom
