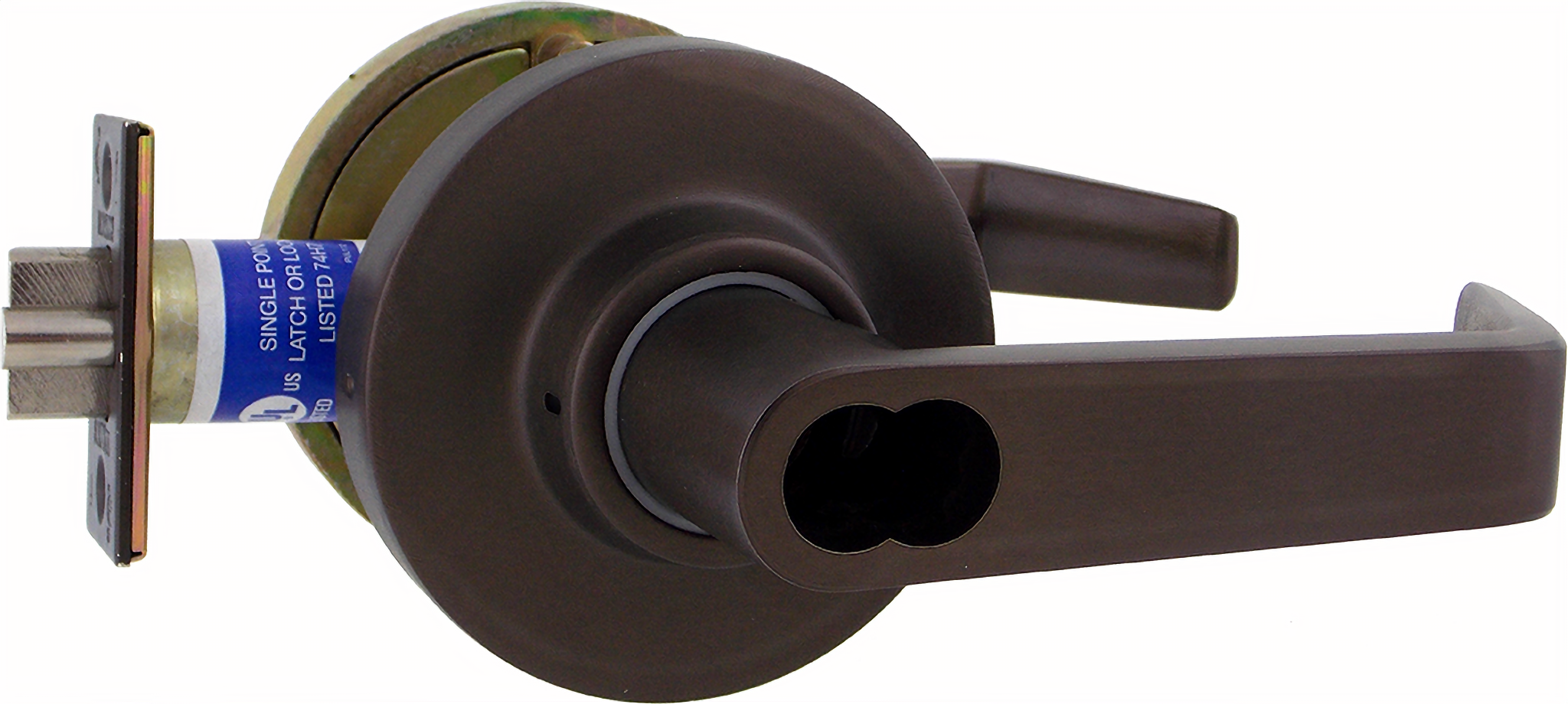

Images may not represent actual product and finish

Marks Hardware 195RAB/10B-F21 Ic Entry Lever G1 Medeco Lfic

Your Price: $331.29

Retail Price:$433.19

Your Savings:$101.90(24%)

Grade 1 Entrance/Office Cylindrical Lock, Medeco LFIC Less Core, American Lever, 3-7/16" Diameter Rose, Dark Oxidized Satin Bronze Oil Rubbed Finish, Non-Handed

Part Number : MAS_195RAB10BF21

Availability: 17 In Stock

Quantity

Description

Marks Hardware 195RAB/10B-F21 Ic Entry Lever G1 Medeco Lfic

Outside locked by pushing turn-button inside. Key outside opens lock. Rotating inside lever releases button and outside lever. By pushing and turning inside button, outside lever remains locked.

Backset: 2-3/4"; 2-3/8", 3-3/4" & 5" Optional
Latch #1834, Front: 1-1/8" x 2-1/4"; Throw: 9/16"; Stainless steel nose
Levers: Solid cast Zamac w/ 1/2" return
Rose: Thru-bolted, 3-7/16" dia., spring loaded 2-#10 thru-bolts
Strike: #1135, 4-7/8" ASA curved lip
Door thickness: 1-5/8" to 1-7/8" (For 1-3/8" door use K1704 spacer.)
Cylinder: MARKS C keyway, 6 pin w/ 2 keys or IC Core housing
Electrified functions - 100% duty cycle, 24V/AC supplied with bridge rectifier; 24V/DC, .21 Amps
12V/DC Optional, Contact factory for additional options
Request to Exit Switch: Single pole, double throw, 3 amp,125 AC, wired either normally open or normally closed (REX Switch is not standard on electrified leverset)
Features "The Clutch"
UL Listed, 3 hour fire rated

Attributes

Accessible: Yes

Ada Compliance: Yes

Alternate Codes: 140446, 195RAB/10B-F21, 195RAB10BF21

Ansi: A156.2

Ansi Function: F109

Baa Qualified: Yes

Backset: 2-3/4"

Bolt Projection: 9/16"

Bore Hole Diameter: 2-1/8"

Burglar Rated: No

Category: Commercial Locks, Cylindrical Levers, Lock Sets

Certifications: A156.2, ANSI, UL Listed 3 Hour

Commercial Residential: Commercial

Country of Origin: Usa

Country of origin: USA

Cylinder Included: No

Cylinder Type: IC Core Cylinder

Door Application: Lock Sets

Door Bore Size: 2-1/8"

Door Thickness: 1-5/8"-1-7/8"

Door Thickness Max: 1-7/8"

Door Thickness Min: 1-5/8"

Finish: 613/US10B

Finish Code: 613E

Finish Color: Oil Rubbed Bronze

Finish Description: Dark Oxidized Satin Bronze Oil Rubbed

Finish Family: Dark Bronze

Fire Rated: Yes

Fire Rating: 120 min

Function: Entrance

Grade: Grade 1

Handing: Non-Handed

Installation: Commercial

Knob/ Lever Design: 195

Knob/ Lever Style: Lever

Latch Bolt Face Type: Square Corner

Latch Bolt Faceplate Size: 2-1/4" x 1-1/8"

Latch Bolt Throw: 1/2"

Latch Bolt Type: Deadlatch

Latch Bore Diameter: 1"

Latch Throw: 9/16"

Latchbolt Type: Deadlatch

Lever Design: American

Lever/ Knob Cylinder Prep: Medeco IC core large format

Leverknob Design: 195 - American Lever

Leverknob Design Family: Straight Return Lever

Limited Warranty: Lifetime

Lock Category: Cylindrical Lock

Lock Face Size: 1-1/8" x 2-1/4"

Manufacturer: Marks USA

Origin: USA

Pack Qty: 1

Projection: 2-3/4"

Restrictions: None

Rose/ Escutcheon: 3-7/16" Diameter, Spring Loaded

Rose/ Escutcheon Size: 2-9/16"

Rose/ Escutcheon Style: Rose

Roseescutcheon Design: 3-7/16" Rose Diameter

Screws: Combination

Series: 95 Line

Std Latch Backset Dim: 2-3/4"

Std Latch Number: 1834A

Std Latch Type: Dead Latch (Guarded)

Std Strike Height: 4-7/8"

Std Strike Number: 1135

Std Strike Type: ASA Curved Lip Strike

Std Strike Width: 1-1/4"

Strike Size: 4-7/8" x 1-1/4"

Subtype: Cylindrical Lock

Supplier: Marks

Type: LOCK SETS

Ul Listing: UL 10C

Unit of Measure: Each
