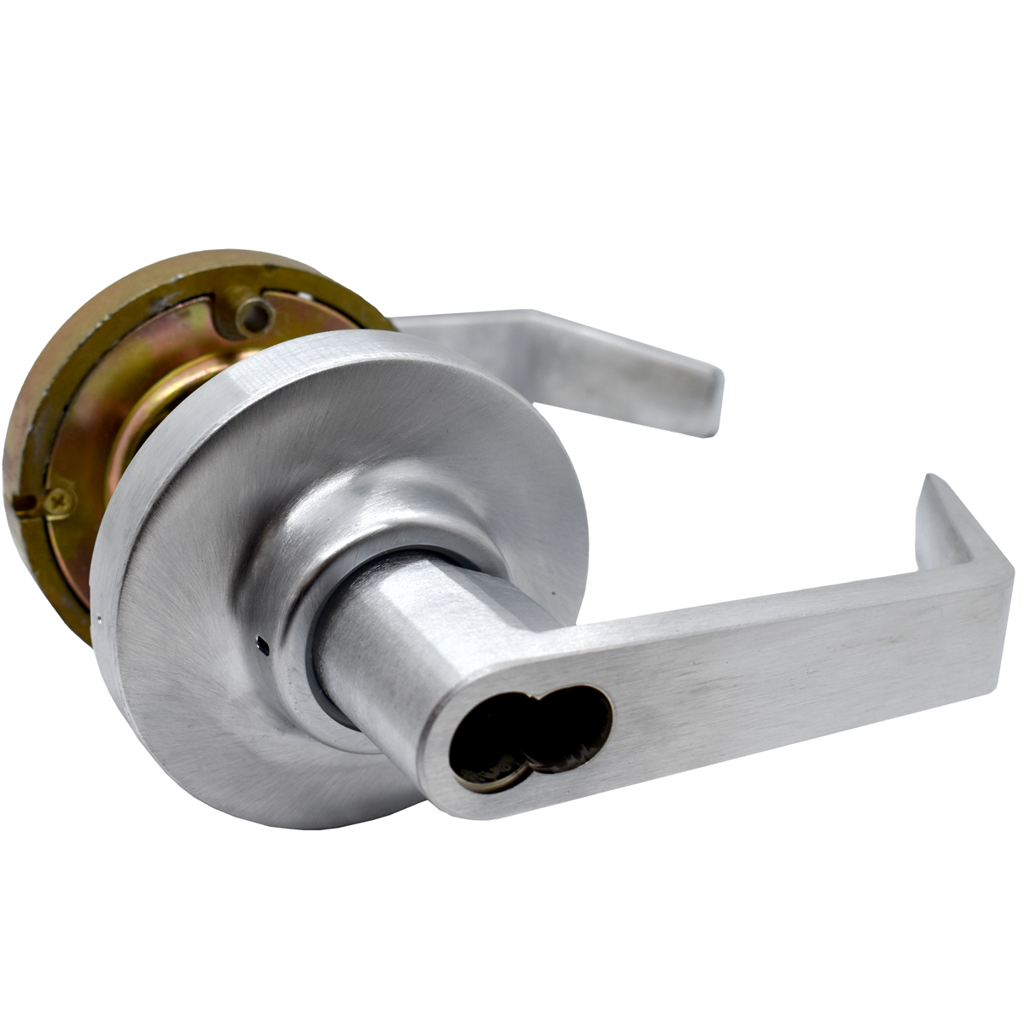

Marks Hardware 195RDW/26D-F20 Sargent 6 Pin LFIC Clutched Lever Lockset, Grade 1, Satin Chrome, Less Core

Marks Hardware 195RDW/26D-F20 LFIC Sargent 6 Pin - Institution Clutched Lever Lockset is engineered for exceptional durability and performance in high-traffic environments. Built with a robust cylindrical lock chassis, this lockset features cast retractors on bronze roller bearings, ensuring it withstands millions of cycles with ease. The unique "clutch" mechanism of the Survivor leverset reduces wear and tear significantly; when locked, the levers disengage from internal mechanisms, allowing them to move freely without resistance. This innovative design not only prolongs the lifespan of the lock but also eliminates common issues like lever droop. Rated at Grade 1, the 195RDW exceeds the BHMA specification by 300%, boasting over 3.6 million cycles of reliability. It includes a stainless steel latch with a generous throw of 9/16" and accommodates door thicknesses from 1-5/8" to 1-7/8". The lockset is available in a sleek satin chrome finish (626/US26D) and comes with a Marks "C" keyway, 6 pin cylinder and 2 keys. Additionally, the 195RDW is UL listed for a 3-hour fire rating, making it a secure choice for institutional settings. With a Marks Lifetime Mechanical Warranty, this lockset ensures peace of mind for building professionals and homeowners alike.

LFIC Sargent 6 Pin - Institution Clutched Lever Lockset, Sargent Full Size IC, Less Core, 2-3/4in Backset, ANSI Strike, Grade 1, 626/US26D Satin Chrome

Cylindrical locksets are designed for use in situations where durability is the deciding factor. Our cylindrical lock chassis are all constructed with cast retractors on bronze roller bearings. This strong, durable component gives our cylindrical sets the ability to last millions of cycles and is available in knob and lever sets. The Survivor leverset has a unique "clutch" mechanism that radically reduces the wear and abuse that typical cylindrical lever sets endure. When locked, the levers of the Survivor disengage from the retractor and other interior mechanisms of the lock. The levers of the Survivor swing freely, without resistance. This reduces the amount of wear on lock components and eliminates "lever droop". The use of a clutch results in longer lasting, lower maintenance, eloquent solution.

Features:

• High quality, longer lasting, lower maintenance design
• Competitively-priced for exceptional value
• Exceeds BHMA grade 1 spec by 300%, over 3.6 million cycles
• Unique stainless steel "clutch" and bronze bearings dramatically reduce wear and abuse & eliminates lever droop
• Marks Lifetime Mechanical Warranty
• 3-Hour Fire Rated; 2-3/8" and 2-3/4 Backsets

Specifications:

• Backset: 2-3/4"
• Latch #1834, Front: 1-1/8" x 2-1/4"; Throw: 9/16"; stainless steel nose
• Levers: Solid cast zamac; w/ 1/2" return (except 395 & 495)
• Roses: Thru-bolted, 3-7/16" dia, spring loaded 2-#10 thru-bolts
• Strike: #1135, 4-7/8" ASA curved lip strike
• Door Thickness: 1-5/8" to 1-7/8"; For 1-3/8" door use K1904 spacer
• Cylinder: Marks "C" keyway, 6 pin w/ 2 keys

Functions:

• N: Passage
• L: Privacy
• P: Patio
• DC: Communicating
• AB: Entry
• AQ: Exit
• S: Classroom
• F: Storeroom
• DW: Institution
• DA: Vestibule
• T: Corridor
• TO: Time out
• TK: Hospital/privacy
• GB: Store door
• BS: Service station lock
• H : Hotel
• DB: Classroom intruder
• DO: Dummy trim outside
• DT: Full dummy trim
• NB: Communicating passage
• FB: Communicating storeroom
• SB: Communicating classroom
• FEL: Electrically locked
• FEU: Electrically unlocked

Finishes:

• 3 - Bright brass
• 32D - Stainless steel
• 10B - Dark bronze
• 26D - Satin chrome
