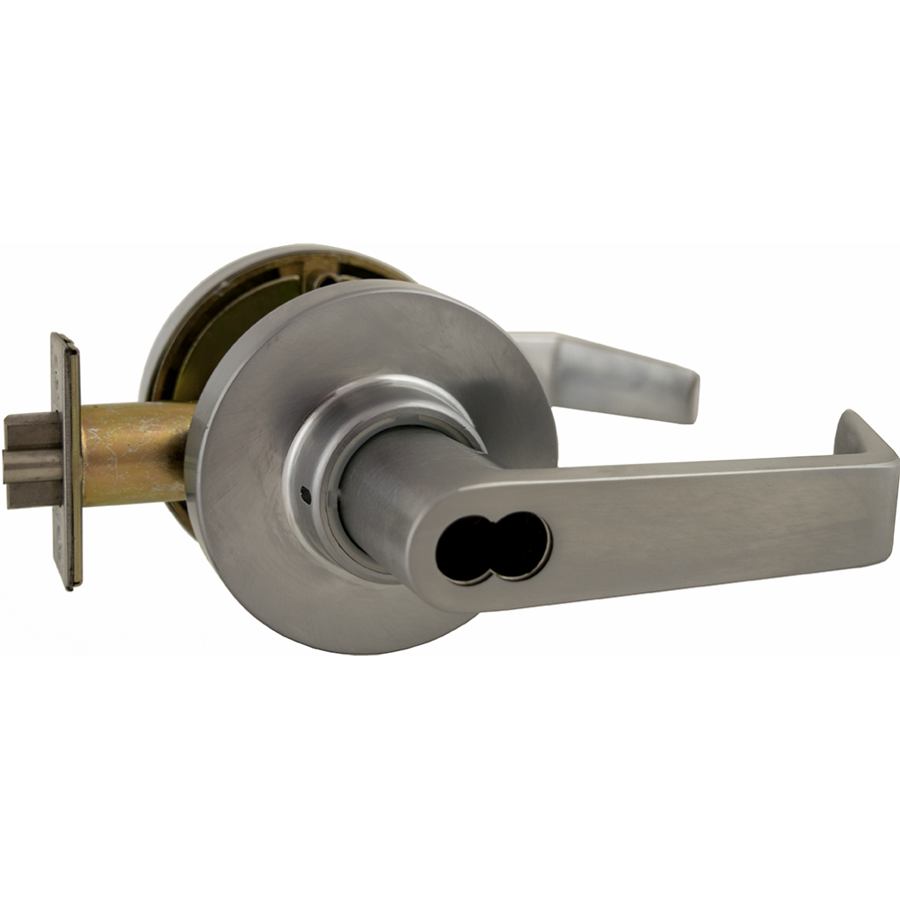

Marks Hardware 195RFEU/26D-H2 SFIC EU Storeroom Clutched Lever Lockset, Small Format IC, Grade 1, Satin Chrome

Marks Hardware 195RFEU/26D-H2 SFIC - EU Storeroom Clutched Lever Lockset offers exceptional durability and security for commercial environments. Designed with a small format interchangeable core, this lockset features a 2-3/4-inch backset and is ANSI Grade 1 certified, ensuring reliable performance that exceeds industry standards by 300% with over 3.6 million cycles. The innovative clutch mechanism allows the lever handle to swing freely when locked, significantly reducing wear and preventing common issues like lever droop. Constructed with solid cast zamac levers and bronze roller bearings, this lockset is engineered for longevity and minimal maintenance. The stainless steel components further enhance its resilience, making it an ideal choice for high-traffic areas. A 3-hour fire rating provides added peace of mind, while the sleek satin chrome finish ensures it complements any décor. Installation is straightforward with the included 4-7/8-inch ASA curved lip strike and support for door thicknesses ranging from 1-5/8 inches to 1-7/8 inches. The Marks Hardware 195RFEU/26D-H2 comes with a lifetime mechanical warranty, making it a smart investment for professionals seeking reliable and stylish locking solutions.

SFIC - EU Storeroom Clutched Lever Lockset, Small Format IC, Less Core, 2-3/4in Backset, ANSI Strike, Grade 1, 12V, 626/US26D Satin Chrome

Cylindrical locksets are designed for use in situations where durability is the deciding factor. Our cylindrical lock chassis are all constructed with cast retractors on bronze roller bearings. This strong, durable component gives our cylindrical sets the ability to last millions of cycles and is available in knob and lever sets. The Survivor leverset has a unique "clutch" mechanism that radically reduces the wear and abuse that typical cylindrical lever sets endure. When locked, the levers of the Survivor disengage from the retractor and other interior mechanisms of the lock. The levers of the Survivor swing freely, without resistance. This reduces the amount of wear on lock components and eliminates "lever droop". The use of a clutch results in longer lasting, lower maintenance, eloquent solution.

Features:

• High quality, longer lasting, lower maintenance design
• Competitively-priced for exceptional value
• Exceeds BHMA grade 1 spec by 300%, over 3.6 million cycles
• Unique stainless steel "clutch" and bronze bearings dramatically reduce wear and abuse & eliminates lever droop
• Marks Lifetime Mechanical Warranty
• 3-Hour Fire Rated; 2-3/8" and 2-3/4 Backsets

Specifications:

• Backset: 2-3/4"
• Latch #1834, Front: 1-1/8" x 2-1/4"; Throw: 9/16"; stainless steel nose
• Levers: Solid cast zamac; w/ 1/2" return (except 395 & 495)
• Roses: Thru-bolted, 3-7/16" dia, spring loaded 2-#10 thru-bolts
• Strike: #1135, 4-7/8" ASA curved lip strike
• Door Thickness: 1-5/8" to 1-7/8"; For 1-3/8" door use K1904 spacer
• Cylinder: Marks "C" keyway, 6 pin w/ 2 keys

Functions:

• N: Passage
• L: Privacy
• P: Patio
• DC: Communicating
• AB: Entry
• AQ: Exit
• S: Classroom
• F: Storeroom
• DW: Institution
• DA: Vestibule
• T: Corridor
• TO: Time out
• TK: Hospital/privacy
• GB: Store door
• BS: Service station lock
• H : Hotel
• DB: Classroom intruder
• DO: Dummy trim outside
• DT: Full dummy trim
• NB: Communicating passage
• FB: Communicating storeroom
• SB: Communicating classroom
• FEL: Electrically locked
• FEU: Electrically unlocked

Finishes:

• 3 - Bright brass
• 32D - Stainless steel
• 10B - Dark bronze
• 26D - Satin chrome
