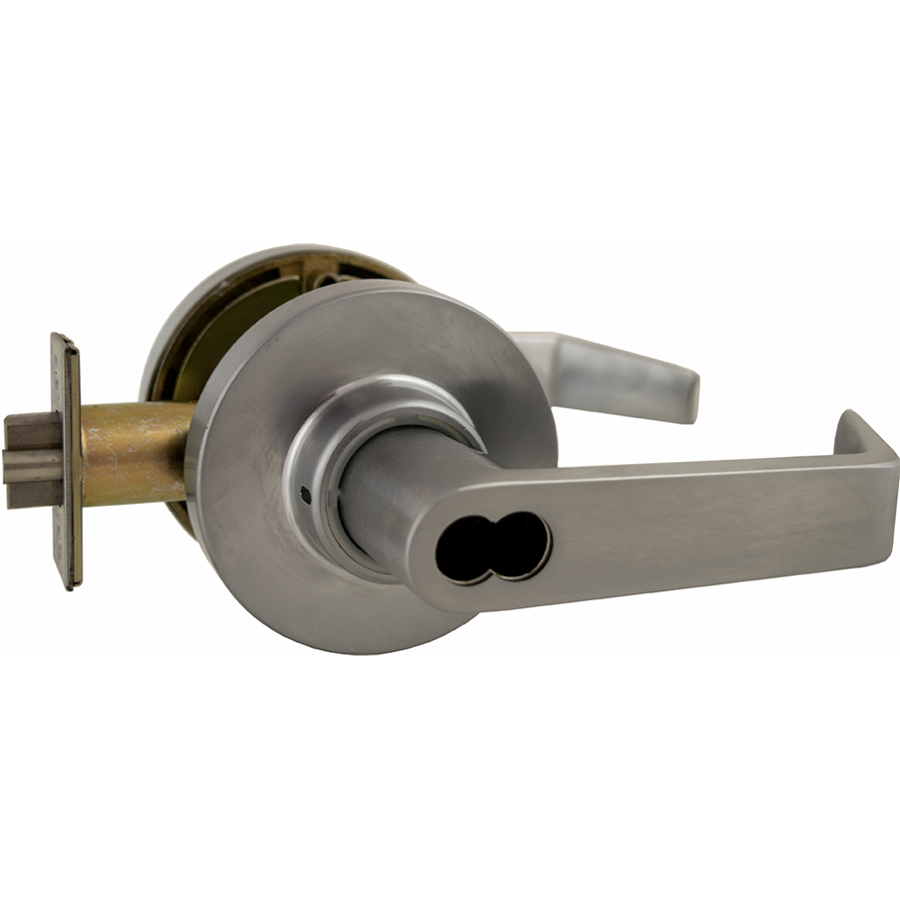

Marks Hardware 195RFEU/26D SFIC EU Storeroom Clutched Lever Lockset, Less Core, Grade 1, Satin Chrome

Marks Hardware 195RFEU/26D SFIC - EU Storeroom Clutched Lever Lockset offers a robust solution for securing storerooms with its advanced design and high-quality construction. This small format interchangeable core lockset features a durable 2-3/4" backset and is engineered to exceed the BHMA Grade 1 specifications by an impressive 300%, ensuring it withstands over 3.6 million cycles. The unique "clutch" mechanism of the Survivor leverset significantly reduces wear and tear, allowing the levers to swing freely when locked. This feature not only prevents lever droop but also extends the lifespan of the lock, minimizing maintenance needs. Constructed with solid cast zamac levers and stainless steel components, this lockset is designed for heavy-duty use in commercial environments. With a fire rating of 120 minutes and an ANSI strike, the 195RFEU/26D is a reliable choice for safety compliance. It accommodates door thicknesses ranging from 1-5/8" to 1-7/8" and includes a Marks "C" keyway cylinder with two keys. Finished in stylish satin chrome, this lockset combines functionality and aesthetic appeal, making it an excellent investment for professionals seeking a dependable locking solution. Enjoy peace of mind with the Marks lifetime mechanical warranty.

SFIC - EU Storeroom Clutched Lever Lockset, Small Format IC, Less Core, 2-3/4in Backset, ANSI Strike, Grade 1, 626/US26D Satin Chrome

Cylindrical locksets are designed for use in situations where durability is the deciding factor. Our cylindrical lock chassis are all constructed with cast retractors on bronze roller bearings. This strong, durable component gives our cylindrical sets the ability to last millions of cycles and is available in knob and lever sets. The Survivor leverset has a unique "clutch" mechanism that radically reduces the wear and abuse that typical cylindrical lever sets endure. When locked, the levers of the Survivor disengage from the retractor and other interior mechanisms of the lock. The levers of the Survivor swing freely, without resistance. This reduces the amount of wear on lock components and eliminates "lever droop". The use of a clutch results in longer lasting, lower maintenance, eloquent solution.

Features:

• High quality, longer lasting, lower maintenance design
• Competitively-priced for exceptional value
• Exceeds BHMA grade 1 spec by 300%, over 3.6 million cycles
• Unique stainless steel "clutch" and bronze bearings dramatically reduce wear and abuse & eliminates lever droop
• Marks Lifetime Mechanical Warranty
• 3-Hour Fire Rated; 2-3/8" and 2-3/4 Backsets

Specifications:

• Backset: 2-3/4"
• Latch #1834, Front: 1-1/8" x 2-1/4"; Throw: 9/16"; stainless steel nose
• Levers: Solid cast zamac; w/ 1/2" return (except 395 & 495)
• Roses: Thru-bolted, 3-7/16" dia, spring loaded 2-#10 thru-bolts
• Strike: #1135, 4-7/8" ASA curved lip strike
• Door Thickness: 1-5/8" to 1-7/8"; For 1-3/8" door use K1904 spacer
• Cylinder: Marks "C" keyway, 6 pin w/ 2 keys

Functions:

• N: Passage
• L: Privacy
• P: Patio
• DC: Communicating
• AB: Entry
• AQ: Exit
• S: Classroom
• F: Storeroom
• DW: Institution
• DA: Vestibule
• T: Corridor
• TO: Time out
• TK: Hospital/privacy
• GB: Store door
• BS: Service station lock
• H : Hotel
• DB: Classroom intruder
• DO: Dummy trim outside
• DT: Full dummy trim
• NB: Communicating passage
• FB: Communicating storeroom
• SB: Communicating classroom
• FEL: Electrically locked
• FEU: Electrically unlocked

Finishes:

• 3 - Bright brass
• 32D - Stainless steel
• 10B - Dark bronze
• 26D - Satin chrome
