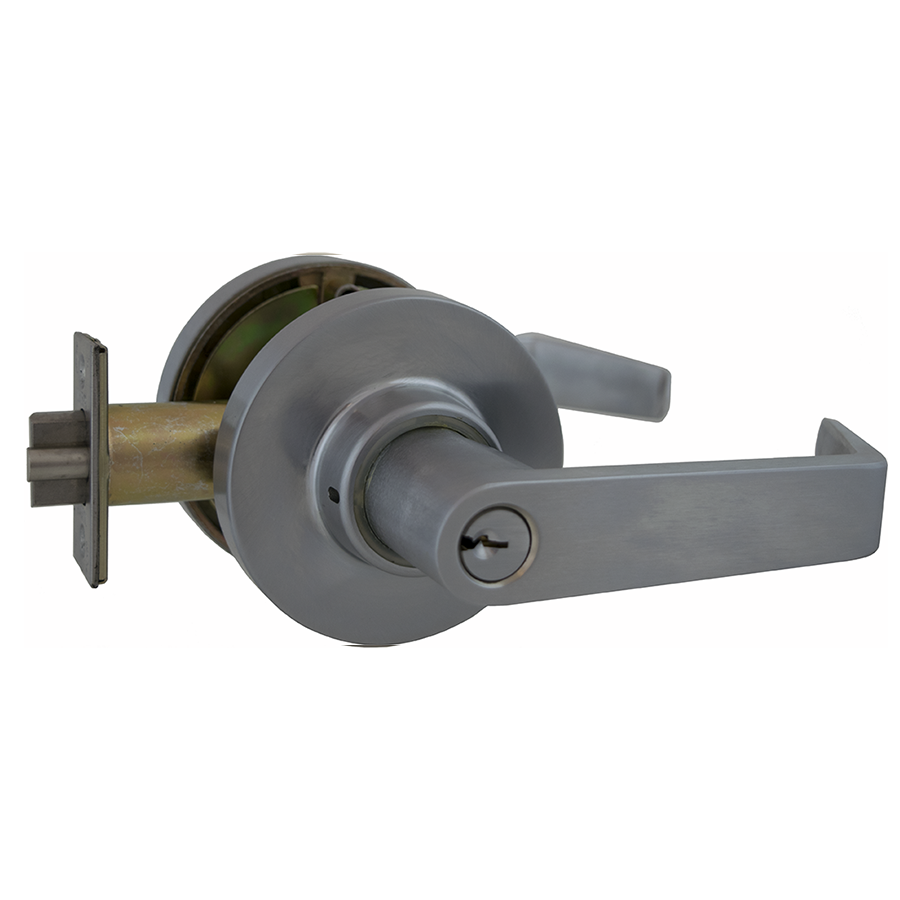

Marks Hardware 195S/26D-G3 Classroom Clutched Lever Lockset, Less Cylinder, Grade 1, Satin Chrome

Marks Hardware 195S/26D-G3 Classroom Clutched Lever Lockset is engineered for durability and high performance in educational environments. Designed with a 2-3/4 inch backset, this Grade 1 lockset exceeds BHMA specifications by an impressive 300%, ensuring it can withstand over 3.6 million cycles of use. Its robust construction features solid cast zamac levers and bronze roller bearings, which provide exceptional longevity and reliability. The unique stainless steel "clutch" mechanism allows the levers to disengage from the retractor when locked, minimizing wear and eliminating common issues such as lever droop. This innovative design not only extends the lifespan of the lock but also reduces maintenance efforts, making it an ideal choice for busy settings. With a satin chrome finish (626/US26D), this lockset adds a touch of modern elegance while maintaining its resilience. It is fire rated for up to 120 minutes, ensuring safety in case of emergencies. The Marks Hardware 195S/26D-G3 is compatible with door thicknesses ranging from 1-5/8 inches to 1-7/8 inches, and it comes with a Marks Lifetime Mechanical Warranty for peace of mind. Elevate your security with this reliable and aesthetically pleasing classroom lockset.

Classroom Clutched Lever Lockset, Less Cylinder, 2-3/4in Backset, ANSI Strike, Grade 1, 626/US26D Satin Chrome

Cylindrical locksets are designed for use in situations where durability is the deciding factor. Our cylindrical lock chassis are all constructed with cast retractors on bronze roller bearings. This strong, durable component gives our cylindrical sets the ability to last millions of cycles and is available in knob and lever sets. The Survivor leverset has a unique "clutch" mechanism that radically reduces the wear and abuse that typical cylindrical lever sets endure. When locked, the levers of the Survivor disengage from the retractor and other interior mechanisms of the lock. The levers of the Survivor swing freely, without resistance. This reduces the amount of wear on lock components and eliminates "lever droop". The use of a clutch results in longer lasting, lower maintenance, eloquent solution.

Features:

• High quality, longer lasting, lower maintenance design
• Competitively-priced for exceptional value
• Exceeds BHMA grade 1 spec by 300%, over 3.6 million cycles
• Unique stainless steel "clutch" and bronze bearings dramatically reduce wear and abuse & eliminates lever droop
• Marks Lifetime Mechanical Warranty
• 3-Hour Fire Rated; 2-3/8" and 2-3/4 Backsets

Specifications:

• Backset: 2-3/4"
• Latch #1834, Front: 1-1/8" x 2-1/4"; Throw: 9/16"; stainless steel nose
• Levers: Solid cast zamac; w/ 1/2" return (except 395 & 495)
• Roses: Thru-bolted, 3-7/16" dia, spring loaded 2-#10 thru-bolts
• Strike: #1135, 4-7/8" ASA curved lip strike
• Door Thickness: 1-5/8" to 1-7/8"; For 1-3/8" door use K1904 spacer
• Cylinder: Marks "C" keyway, 6 pin w/ 2 keys

Functions:

• N: Passage
• L: Privacy
• P: Patio
• DC: Communicating
• AB: Entry
• AQ: Exit
• S: Classroom
• F: Storeroom
• DW: Institution
• DA: Vestibule
• T: Corridor
• TO: Time out
• TK: Hospital/privacy
• GB: Store door
• BS: Service station lock
• H : Hotel
• DB: Classroom intruder
• DO: Dummy trim outside
• DT: Full dummy trim
• NB: Communicating passage
• FB: Communicating storeroom
• SB: Communicating classroom
• FEL: Electrically locked
• FEU: Electrically unlocked

Finishes:

• 3 - Bright brass
• 32D - Stainless steel
• 10B - Dark bronze
• 26D - Satin chrome
