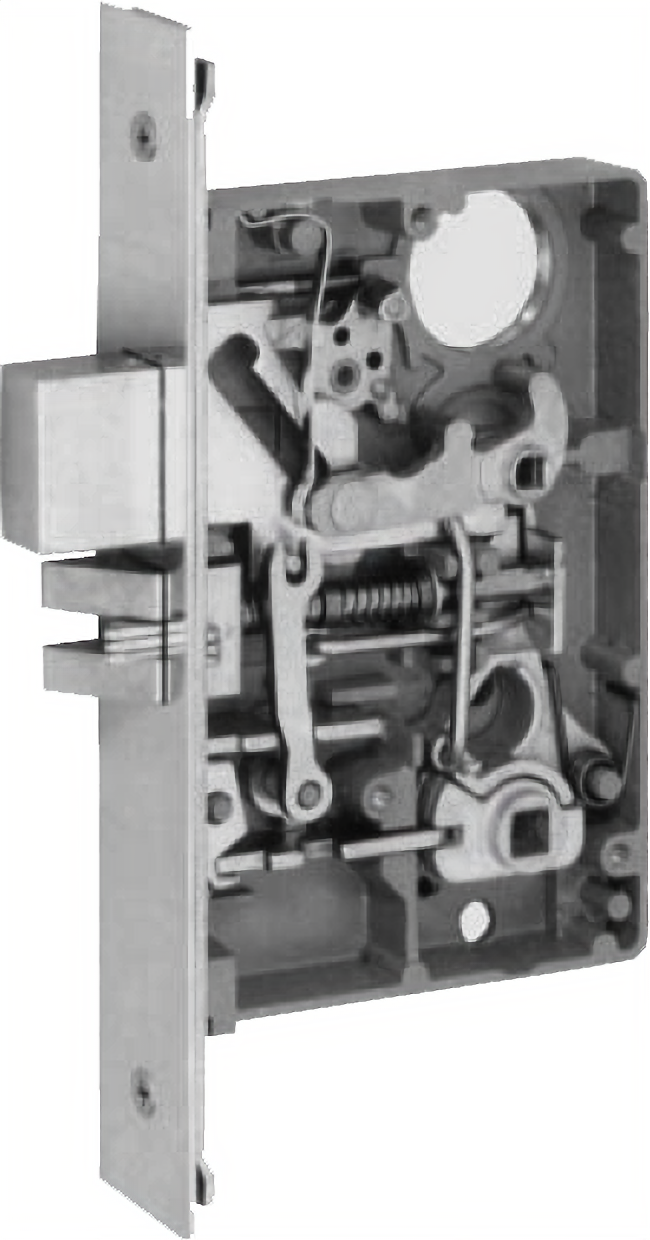

Marks Hardware 7A/32DLH Entry Mortise Body Only is designed for durability and security, making it an ideal choice for high-traffic areas. Crafted with precision, this Grade 2 mortise lock features a robust 2-3/4-inch backset, ensuring a secure fit in your door. The lock boasts a cast alloy bolt that delivers a full 1-inch throw, complemented by a 5/8-inch anti-friction latch throw, providing both strength and functionality. Engineered for long-lasting performance, the Marks Hardware mortise lock stands out with its high-pressure cast zamac case and baked enamel finish, adding a layer of resilience against wear and tear. The front measures 1-1/4 inches by 8 inches and is available in various finishes, including satin stainless steel (630), which not only enhances the aesthetic appeal but also offers superior corrosion resistance. As a testament to its reliability, this lock meets ANSI grade 1 specifications and is BHMA certified. It also carries a lifetime mechanical warranty, ensuring peace of mind with your investment. With various function options available, including entrance and dormitory configurations, the Marks Hardware 7A/32DLH is a versatile choice for residential and commercial applications alike. Choose this mortise lock for its proven performance and trusted security features.

Entry Mortise Body Only, 2-3/4in Backset, Deadbolt and Latch, Front 1-1/4 x 8in, Grade 2, 630/US32D Stainless Steel

Marks USA has been making mortise locks for over 30 years. From their introduction, our mortise locks have enjoyed a reputation for long life and their ability to excel in high traffic, high abuse areas. Marks USA mortise locks are engineered to provide years of maintenance-free performance. Our Nova series mortise locks exceed 6 million cycles of continuous use.

Features:

• Meets ANSI grade 1 specification: ANSI-A156.13
• Underwriters laboratories 3-hour fire rating
• BHMA Certified
• Lifetime mechanical warranty
• Available in 2-1/2" and 2-3/4" backset
• Stainless steel bolts, latches, independent lever support springs (on lever sets)

Specifications:

• Backset: 2-3/4"
• Bolt throw: Cast alloy full 1" throw
• Latch throw: 5/8" (anti-friction)
• Case: High pressure cast zamac, baked enamel finish
• Front: 1-1/4" x 8", Flat or 3° bevel
• Hubs: 9/32" on square steel, w/security separator

Keyed Single Cylinder, No Deadbolt Functions:

• D: Office/vestibule
• DW: Vestibule

Keyed Single Cylinder, with Deadbolt Functions:

• A: Entrance, ANSI F08, F10
• B: Entrance, ANSI F21
• F: Dormitory, ANSI F12
• FS: Dormitory
• FW: Dormitory, ANSI F13

Keyed Double Cylinder, with Deadbolt Functions:

• AC: Entrance, ANSI F35
• C: Storeroom, ANSI F14
• FA: Dormitory, ANSI F11
• FX: Dormitory, ANSI F33

Keyless Functions:

• N: Passage, ANSI F01
• L: Bathroom, ANSI F02
• LF: Privacy, ANSI F19

Finishes:

• 3 - Bright brass
• 32D - Stainless steel
• 10B - Dark bronze
