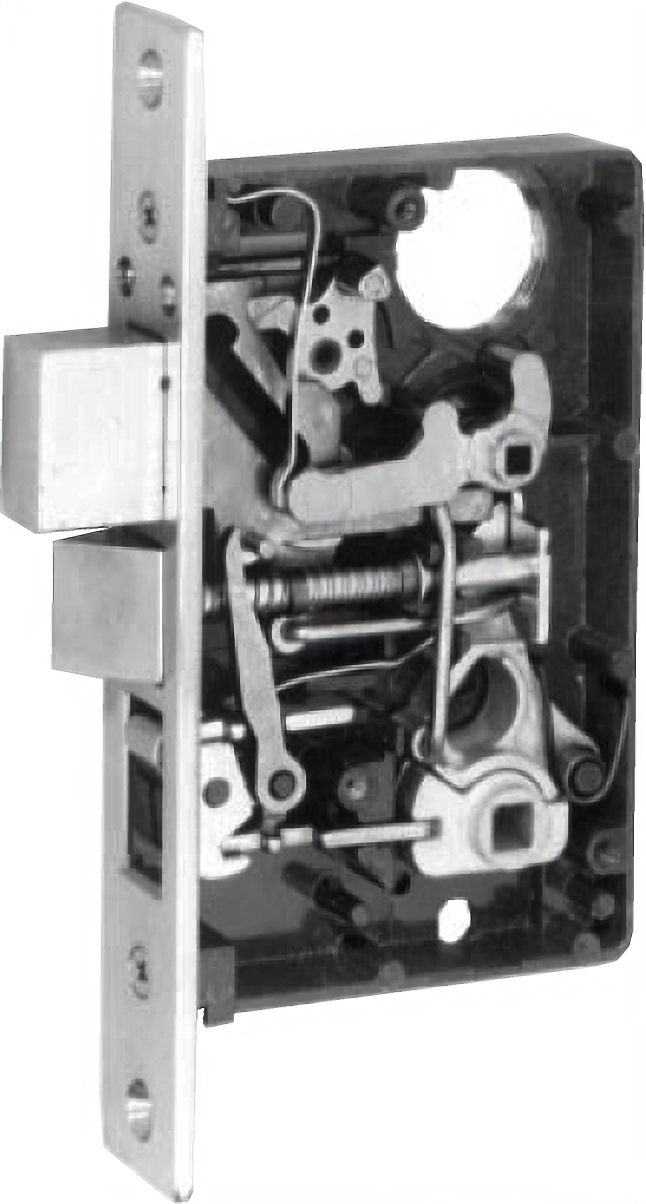

Marks Hardware 8DW/3RH Vestibule Mortise Body for Handlesets, 2-1/2in Backset, Grade 2, Bright Brass

Marks Hardware 8DW/3RH Vestibule Mortise Body Only is engineered to provide exceptional security for entrances requiring a robust locking solution. Designed specifically for handlesets, this mortise lock features a 2-1/2 inch backset, making it an ideal choice for various commercial and residential applications. With a deadbolt and latch system, this model ensures reliable performance in high-traffic areas, supported by Marks USA's reputation for durability over 30 years. Constructed from high-pressure cast Zamac with a baked enamel finish, the body combines strength and aesthetic appeal. It features a 1-inch full bolt throw and a reversible 1/2-inch solid brass latch throw. The front measures 1-1/16 x 7-5/8 inches, offering flexibility with flat or 3° bevel options. Certified with an ANSI grade 1 specification and a 3-hour fire rating, it meets stringent safety standards, ensuring peace of mind. This right-handed vestibule lock is available in a bright brass finish, adding a classic touch to any door. Backed by a lifetime mechanical warranty, the Marks Hardware 8DW/3RH provides maintenance-free performance, making it a smart investment for those seeking reliable security solutions.

Vestibule Mortise Body Only, for Handlesets, 2-1/2in Backset, Deadbolt and Latch, Front 1-1/16 x 7-5/8in, Grade 2, 605/US3 Bright Brass

Marks USA has been making mortise locks for over 30 years. From their introduction, our mortise locks have enjoyed a reputation for long life and their ability to excel in high traffic, high abuse areas. Marks USA mortise locks are engineered to provide years of maintenance-free performance. Our Nova series mortise locks exceed 6 million cycles of continuous use.

Features:

• Meets ANSI grade 1 specification: ANSI-A156.13
• Underwriters laboratories 3-hour fire rating
• BHMA Certified
• Lifetime mechanical warranty
• Available in 2-1/2" and 2-3/4" backset
• Stainless steel bolts, latches, independent lever support springs (on lever sets)

Specifications:

• Backset: 2-1/2"
• Bolt throw: Cast alloy full 1" throw
• Latch throw: Solid brass 1/2" throw, reversible
• Case: High pressure cast Zamac, baked enamel finish
• Front: 1-1/16" x 7-5/8", Flat or 3° bevel
• Hubs: 9/32" (72mm) on square

Keyed Single Cylinder, No Deadbolt Functions:

• DW: Vestibule

Keyed Single Cylinder, with Deadbolt Functions:

• A: Entrance, ANSI F08, F10
• B: Entrance, ANSI F21
• F: Dormitory, ANSI F12

Keyed Double Cylinder, with Deadbolt Functions:

• AC: Entrance, ANSI F35
• C: Store door B body, ANSI F25
• SO: Store door, ANSI F25

Finishes:

• 3 - Bright brass
• 32D - Stainless steel
• 10B - Dark bronze
