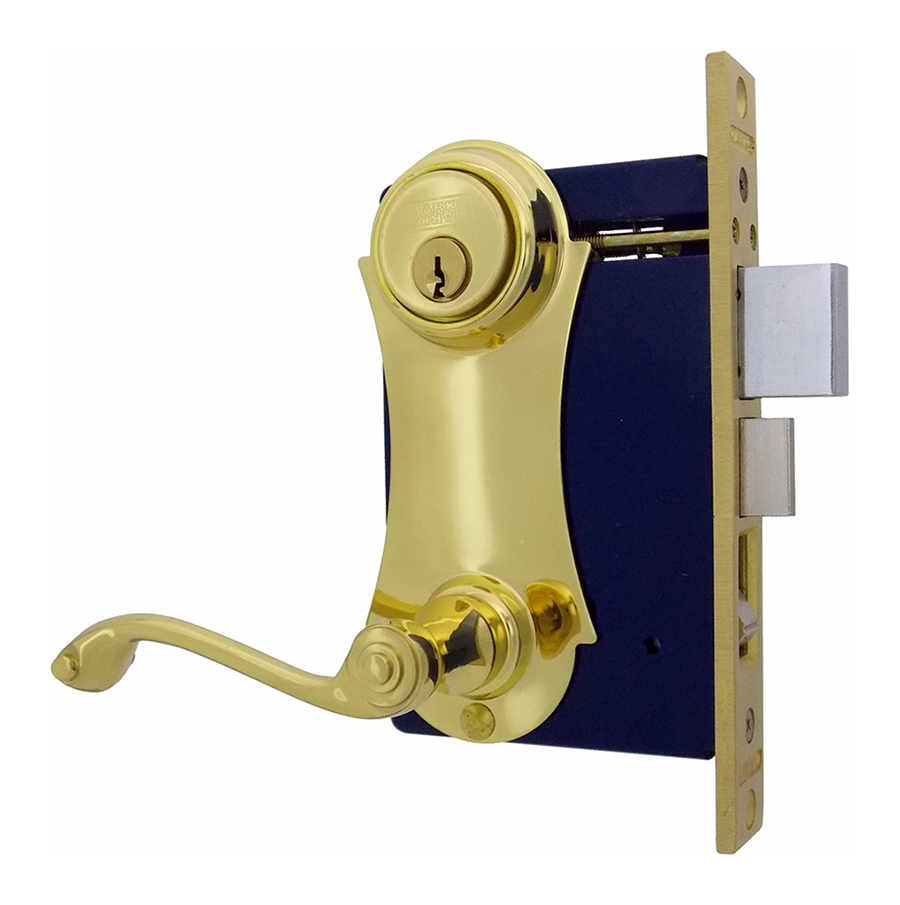

Marks Hardware 9215AC/3LHR-W Double Cylinder Mortise Lockset with Lever, 2-1/2in Backset, Bright Brass

Marks Hardware 9215AC/3LHR-W Entrance Mortise Lockset offers exceptional security with its double cylinder design, making it an ideal choice for both residential and commercial applications. This lockset features a robust lever on plate trim and a 2-1/2 inch backset, ensuring a perfect fit for standard doors. The lock includes a 1-inch bolt and a 1/2-inch latch projection, providing reliable protection against unauthorized entry. Constructed with a thru-bolted design and solid brass trim, the 9215AC/3LHR-W emphasizes durability and ease of installation. The spring-loaded captivated spindles enhance its mechanical reliability, while the Marks A keyway, equipped with a 5-pin cylinder and two keys, ensures that you have control over access. This lockset is designed for doors with a thickness of 1 inch and features a faceplate height of 7-1/8 inches. Available in a stunning bright brass finish, it adds an elegant touch to any entrance while offering a lifetime mechanical warranty for peace of mind. Whether you’re securing a storeroom door or enhancing the safety of your home, the Marks Hardware 9215AC/3LHR-W Entrance Mortise Lockset combines superior craftsmanship with innovative features to deliver reliable performance you can trust.

Entrance Mortise Lockset, Double Cylinder, with Lever on Plate Trim, 2-1/2in Backset, Marks A Keyway, Front 1in x 7-1/8in, Deadbolt and Latch, 605/US3 Bright Brass

Marks USA has been a primary manufacturer of ornamental iron storm door locks for many years. During that time, many innovative improvements were developed to increase the reliability and ease of installation. Innovations includes the "uni-lock" model with single screw assembly, elimination of threaded swivel spindles in favor of the more secure thru-bolted design, helper springs in lever-rose sets, and steel hubs for greater endurance.

Features:

• Lifetime mechanical warranty
• Thru-bolted, solid brass trim

Specifications:

• Door thickness: 1"
• Series 9 lock body, backset: 2-1/2"
• Reversible mortise lock 1" bolt, 1/2" latch projection
• Lock front Series 7: 1-1/4" x 8"; series 9: 1-1/16" x 7-5/8"
• Thru-bolted solid brass trim assemblies
• Spring loaded captivated spindles
• 5/16" Cylinder: Marks "A" keyway, 5 pin w/ 2 keys; keyed alike-6

Functions:

• Keyed Single Cylinder, with Deadbolt: DW/F/FW: Single cylinder panic proof
• Keyed Double Cylinder, with Deadbolt: AC: Entrance
• Dummy Trim: DT: Full dummy

Finishes:

• 3 - Bright brass
• 10B - Dark bronze
• 26D - Satin chrome
