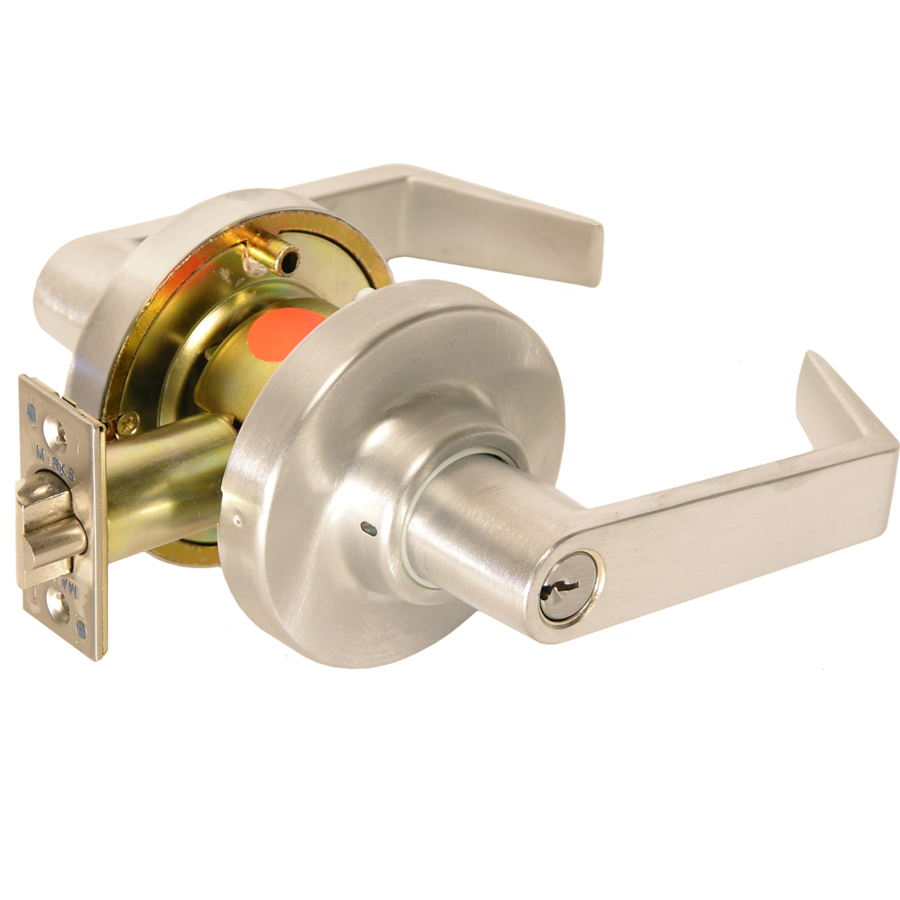

Marks Hardware EA195FEU/26D 24V EU Fail-Secure Storeroom Clutched Lever Lockset, Marks C Keyway, Satin Chrome

Marks Hardware EA195FEU/26D is a high-performance 24V electric unlocked, fail-secure storeroom clutched lever lockset designed to enhance security and functionality in commercial settings. With its Request to Exit (REX) feature, this lockset ensures efficient access control while maintaining robust security measures. The innovative Marks C keyway provides added protection against unauthorized access. This model is equipped with a 2-3/4 inch backset and features a solid cast Zamac lever, ensuring durability and a reliable grip. The stainless steel latch, with a throw of 9/16 inches, offers smooth operation, while the concealed latches enhance security by preventing tampering. Designed for doors ranging from 1-5/8 inches to 1-7/8 inches thick, the EA195FEU/26D is versatile enough for various applications. Installation is straightforward, saving time and labor with the ability to wire directly through the hinges, eliminating the need for extensive alterations. With compatibility for both 12VDC and 24VDC systems, and a low operating current for cool running, this lockset is ideal for high-traffic areas. Certified to meet ANSI/BHMA A156.13 grade 1 standards, the Marks Hardware EA195FEU/26D is a reliable choice for those seeking top-tier security solutions.

24V, EU Electric Unlocked, Fail-Secure, Storeroom Clutched Lever Lockset, (REX) Request to Exit, Marks C Keyway, 2-3/4in Backset, 626/US26D Satin Chrome

New locks by Marks electrified mortise and cylindrical locks - They offer labor-saving electrified models in both mortise and cylindrical locksets in various functions, and for a variety of applications. Both mortise and cylindrical solenoid-operated locks in 12 or 24 VDC, Marks USA locks utilize solenoid actuators and are supplied with bridge rectifiers for use with either AC or DC current.

Features:

• Flexibility in ease of installation. Marks USA can offer dramatic savings in time and labor over electric strikes, and a cleaner installation, by wiring directly through the hinges. This eliminates the time-consuming requirement of cutting into cement-filled frames.
• Mortise models provide better security, with various modes of operation and lock information i.e., request to exit switch (REX), key override switch &/or latch bolt sensor
• Concealed latches for greater security - electrified mortise or cylindrical models are more secure than electric strikes, that have exposed latch keeper
• Fail-safe or fail-secure models – Ideal for stairwell doors with fire alarm system integration. (choose EU fail secure, electrically unlocked or EL fail safe, electrically locked)
• Cylindrical models with long life stainless steel retractor
• Mortise model with quick connect harness, with 2 convenient plug-in connectors for easy, quick wiring. One is always used; the second optional plug-in connector is used only with key position sensor.
• Request to exit and latch bolt-monitored options. Are frequently chosen, for example, to integrate with enterprise access control and/or "man-traps"
• 12VDC & 24 VDC compatible (AC rectifier module supplied)
• Mortise Low operating current for cool running (265 mA 12VDC; 150mA 24VDC)
• Meet or exceed ANSI/BHMA A156.13 grade 1

Specifications:

• Backset: 2-3/4"; 2-3/8", 3-3/4" or 5" optional
• Latch #1834, Front: 1-1/8" x 2-1/4"; throw: 9/16"; Stainless steel nose
• Levers: Solid cast Zamac w/ 1/2" return (except 395 & 495)
• Rose: Thru-bolted, 3-7/16" dia, spring loaded 2-#10 thru-bolts
• Strike: #1135, 4-7/8" ASA curved lip
• Door thickness: 1-5/8" to 1-7/8" (For 1-3/8" door use K1704 spacer)
• Cylinder: MARKS "C" keyway, 6 pin w/ 2 keys
• Request to Exit Switch: Single pole, double throw, 3 amp,125 AC, wired either normally open or normally closed
• Electrified functions: 100% duty cycle, 24V/DC standard, supplied with bridge rectifier; 3 watts, 25amps

Functions:

• F: Storeroom Latch by lever inside. Outside lever always locked
• FEL: Electrically locked Outside always locked electrically. Open by key outside, switch or loss of power. Latch by lever inside.
• FEU: Electrically unlocked Outside always locked until unlocked by key or electrically energized. Latch by lever inside.

Finishes:

• 3 - Bright brass
• 32D - Stainless steel
• 10B - Dark bronze
• 26D - Satin chrome
