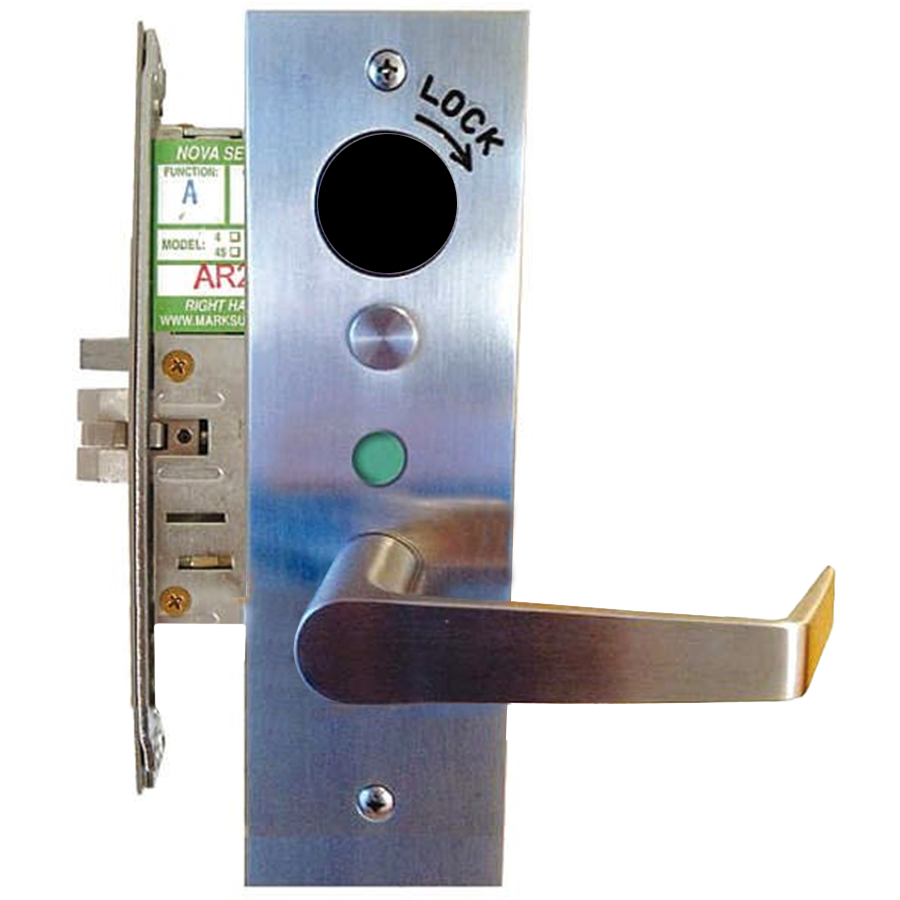

Marks Hardware LA318GJ/32D-G3 RHR Classroom Security Indicator Mortise Lockset, Right Hand, Stainless Steel

Marks Hardware LA318GJ/32D-G3 RHR Classroom Security Indicator Mortise Lockset combines robust engineering with enhanced security features, making it an ideal solution for educational and institutional settings. Crafted from durable stainless steel with a satin finish, this lockset measures 8-1/2 inches high, 2-3/4 inches wide, and 7/16 inches deep, ensuring a sleek yet resilient profile. Designed to meet ANSI Grade 1 specifications, this lockset boasts a 3-hour fire rating and is UL listed, ensuring maximum safety and compliance. Its innovative "override guard" feature promotes longevity by allowing the spindle to yield under excessive torque, preventing damage to the lock body. The lockset is equipped with an occupancy indicator, displaying green for unlocked and red for lockdown, enhancing situational awareness. The LA318GJ/32D-G3 is a right-hand reverse model, suitable for doors 1-3/4 inches thick. It incorporates stainless steel bolts and latches, ensuring reliable operation. The cast stainless steel escutcheon features a screwless design and a recess for a rotating security cylinder ring. Additionally, the lockset comes with a lifetime mechanical warranty, reinforcing its quality and durability. Choose the Marks Hardware LA318GJ/32D-G3 for dependable security solutions that stand the test of time.

Classroom Security Indicator Mortise Lockset, ANSI Strike, Right Hand Reverse, Steel Escutcheon 8-1/2in H x 2-3/4in W x 7/16in Deep, 630/US32D Stainless Steel, Less Core.

All Protector series mortise locksets feature an "override guard" which is designed to result in spindle failure when torque of over 550 foot lbs. is applied. The lockset remains locked and when spindle is replaced, the lockset is fully operational. Protector series locksets have a lifetime mechanical warranty, meet or exceed all operational and security tests of ANSI A156.13-2002 for series 1000, grade 1. Protector series locksets are UL listed, 3-hour fire rated and meet ADA requirements.

Features:

• Meets ANSI grade 1 specification: ANSI-A156.13
• Underwriters laboratories 3-hour fire rating
• BHMA Certified
• Lifetime mechanical warranty
• Available in 2-1/2" and 2-3/4" backset
• Stainless steel bolts, latches, independent lever support springs (on lever sets)

Specifications:

• Function: Latch by lever either side except when outside lever is locked from inside or outside by key. When locked, exterior key will retract latchbolt. Outside key locks or unlocks exterior lever. Inside key is single acting in one direction and will lock exterior lever only; will not unlock exterior lever. Auxiliary latch deadlocks latch. Inside always free for egress.
• Trim: Cast satin stainless steel escutcheon 8-1/2" x 2-3/4" x 7/16". Recess in escutcheon to accept cylinder with rotating security cylinder ring. Cast screwless satin stainless steel lever handles to within 1/2" from face of door secured to escutcheon plate with hardened steel retainer ring. Lever handle, with spring-loaded torque sensitive 5/16" spindle Integral torque override preventer recessed into escutcheon plate. Spindle will yield if excessive torque applied, preventing any damage to lock body.
• Exterior: Two 1/4" diameter threaded thru posts. Two 1/4" diameter center posts pass thru lock body, automatically aligning trim.
• Interior: Two #10-32 phillips head stainless steel mounting thru bolts. Escutcheon with "lock" and directional arrow engraved and black filled near cylinder location. Occupancy indicator recessed into escutcheon plate Indicator window to display unlocked (green Day-Glo) and Lockdown (red Day-Glo) positions.
• Cylinders: Two 1-1/8", 6-pin solid brass with 2101 cam int, 2105 cam ext, with two keys. Outside cylinder rotates in both directions. Inside cylinder rotates in one direction only. Cams supplied to accommodate Corbin, Sargent and Schlage cylinders
• Strike: 4-7/8" X 1-1/4" X 3/32" thick, 5/8" curved lip
• Door Thickness: 1-3/4"
• Lock Body: 5 series "GJ" function double cylinder lock. Lock handing completely reversible without opening lock case

Keyed Single Cylinder, No Deadbolt Functions:

• D: Office vestibule
• DW: Vestibule
• E: Office, ANSI F04
• EW: Storeroom, ANSI F07
• GL: Inst. Privacy, ANSI F26
• J: Classroom, ANSI F05
• JM/JR: Hospital (holdback), ANSI F06
• GS: Classroom security T-turn
• EL: Electrically locked
• U: Electrically unlocked

Keyed Single Cylinder, with Deadbolt Functions:

• A: Entrance, ANSI F08, F10
• B: Entrance, ANSI F21
• F: Dormitory, ANSI F12
• FS: Dormitory
• FW: Dormitory, ANSI F13
• FD: Apartment, ANSI F20
• H: Hotel, ANSI F15
• LH: Spec. privacy

Keyed Double Cylinder, No Deadbolt Functions:

• G: Entrance, ANSI F09
• GC: Intruder latchbolt, ANSI F32
• GG: Classroomsecurity
• GR: Classroom security w/holdback
• WW: Institution, ANSI F30
• GJ: Classroom security

Keyed Double Cylinder, with Deadbolt Functions:

• AC: Entrance, ANSI F35
• C: Storeroom, ANSI F14
• FC: Intruder deadbolt, ANSI F34
• FA: Dormitory, ANSI F11
• FX: Dormitory, ANSI F33

Keyless Functions:

• N: Passage, ANSI F01
• L: Bathroom, ANSI F02
• F: Privacy, ANSI F19
• LJ: Privacy, ANSI F22
• EX: Exit, ANSI F31

Dummy Trim Functions:

• DI/DO: Dummy Trim inside/outside
• DT: Dummy Trim
