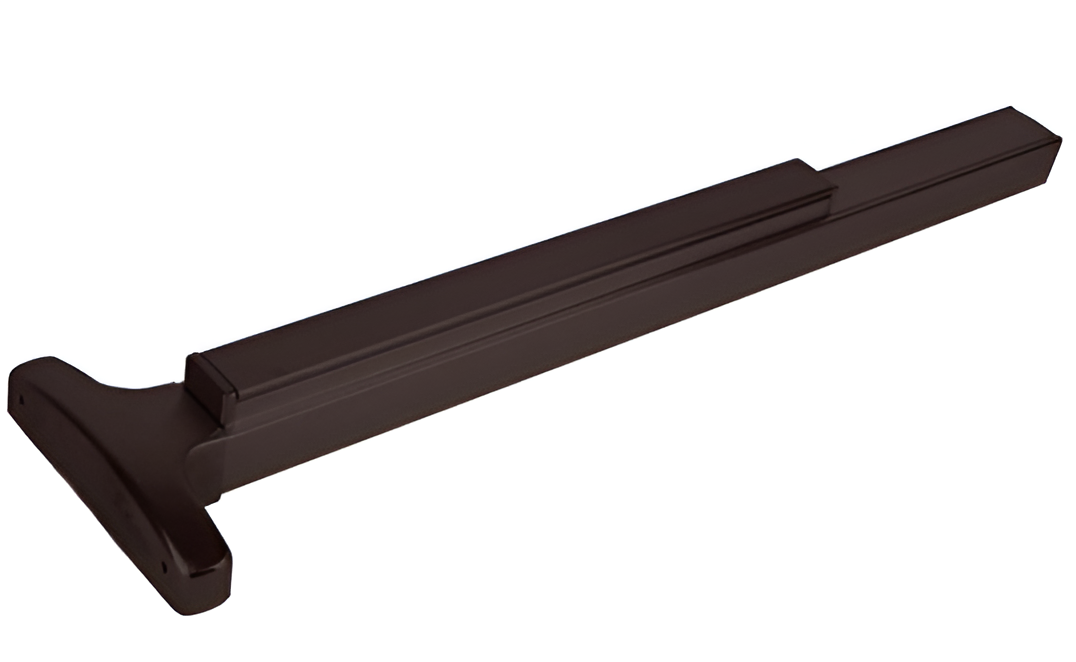

Marks Hardware M8800-10B (19 BLACK) Narrow Stile Rim Exit Device, Hex Key Dogging, Grade 1, Flat Black 622/US19

Marks Hardware M8800-10B Narrow Stile Rim Exit Device combines functionality with robust design, making it an ideal choice for narrow stile single and double doors. This Grade 1 panic hardware is crafted for reliability and ease of installation, ensuring it meets the demands of both commercial and residential applications. One of the key features of the M8800-10B is its non-handed design, allowing it to be used on both left- and right-handed doors without modification. Its heavy gauge aluminum construction, complemented by a durable zinc alloy head cover and panic protector end caps, guarantees long-lasting performance. The device is designed to fit standard door sizes, accommodating thicknesses up to 2 inches and widths of 30 inches to 36 inches, making it versatile for various installations. Installation is straightforward, as the device comes with wood and machine screws and retrofits to popular preps. The stainless steel latch bolt provides a secure 3/4-inch throw, ensuring your exit is both safe and accessible. Available in a sleek matte black finish, the Marks Hardware M8800-10B not only enhances security but also adds an aesthetic appeal to your doors. With the backing of a lifetime warranty, you can trust this exit device for your security needs.

Narrow Stile Rim Exit Device, Hex Key Dogging, Grade 1, 622/US19 Flat Black Powder Coat (10B not Available, made in 19 Black)

Similar to the M9900, the 8800 series rim exit device is heavy-duty panic hardware for use on all types of narrow stile single and double doors with mullions. It includes panic protector endcaps and is designed for both easy mounting and reliability, backed by the Marks lifetime warranty.

Features:

• Reliably control all types of narrow stile single & double doors (non-handed)
• Ultra-durable, heavy gauge extrusion, 32D finish
• Steel flush mounted panic protector end cap
• Easy installation & retrofits all popular preps

Specifications:

• For Doors: (Please specify when ordering non standard size doors) Thickness: standard 1 3/4", may fit with door thickness up to 2" Width: standard 36", may fit door width 30"
• Mounting: Furnished standard with wood and machine screws
• Head Cover: Zinc alloy
• Chassis: Aluminum
• Rail Assembly: Heavy gauge extruded aluminum with stainless steel on top of touch bar
• End Cap: Zinc alloy
• Hand: Non-handed
• Latch Bolt: Stainless steel, 3/4" (18mm) throw
• Strike: Roller strike (stainless steel)
• Dogging: Allen key (equipped on panic rate devices only)
• Dimension: Touch bar height from finished floor: 41" (1041mm) from center of touch bar. Touch Bar Projection: Neutral: 3 5/16" (84mm), Depressed: 2 19/32" (66mm), Head Cover: LxWxH: 206mm x 76mm x 71mm, Device Length: 34 5/8" (88cm) for 36" door width 46 5/8" (118.5 cm) for 48" door width

Finishes:

• 19 - Matte black
• US32D - Satin stainless
