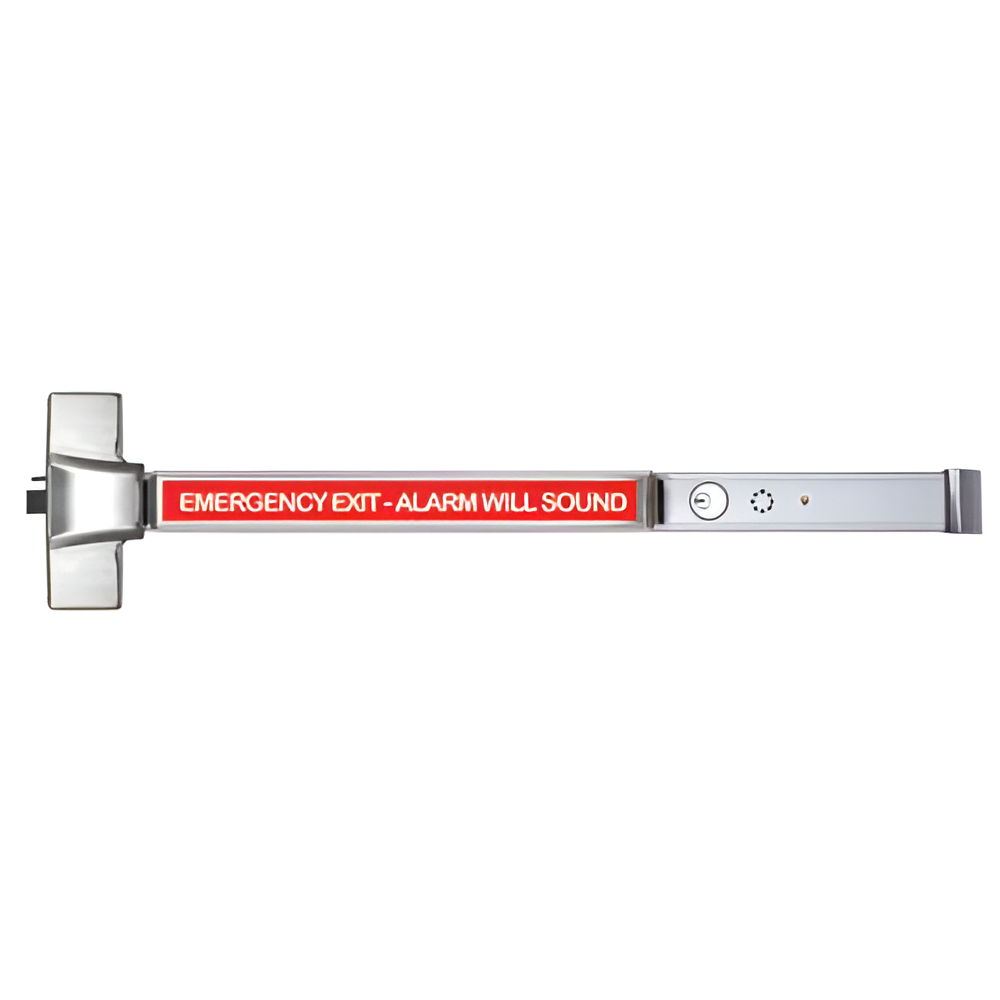

Marks Hardware M9900EA/32D-36 Rim Exit Device with Alarm, 15-60 Sec Delay, 9VDC, Grade 1, 36in, Stainless Steel

Marks Hardware M9900EA/32D-36 Rim Exit Device combines robust security with advanced functionality, making it an ideal choice for high-impact applications in schools, universities, and commercial buildings. This Grade 1 exit device features a 36-inch heavy-gauge aluminum rail assembly and a solid stainless steel 3/4" throw dead latch bolt, ensuring durability and reliability in emergency situations. Equipped with an exit alarm that activates with a 15 to 60 seconds arming delay, the M9900EA enhances safety while minimizing false alarms. The device includes a user-friendly 100dB piezo alarm and an LED indicator for clear feedback. Its non-handed design allows for easy installation and retrofitting to existing preps, ensuring flexibility across various door applications. The solid beveled "panic protector" end cover and roller strike are designed to withstand heavy use and prevent abuse, making this exit device a trusted choice for critical environments. Certified to ANSI 156.3 standards, the M9900EA is also UL listed for panic hardware and meets fire-rated requirements for doors up to 38" x 86". Available in satin stainless (US32D) and trendy matte black (US19), this device not only meets safety requirements but also complements modern design aesthetics, ensuring both functionality and style in any building.

Rim Exit Device, with Exit Alarm, 15 to 60 Seconds Arming Delay, 9VDC, Less Trim, 36in, Grade 1, 630/US32D Stainless Steel

The M9900 panic exit devices offer a simple, heavy-duty, easily installed solution where high quality panic and fire listed hardware is needed. These extremely durable, grade 1 exit devices are perfect for high impact applications such as schools, universities and other institutional or commercial buildings, and retrofit all popular preps. The heavy-duty cast chassis provides superior durability, while the smooth reduced projection touch-bar assembly minimizes catch hazards and mitered steel flush mounted panic protector end caps, prevent abuse. Other variations include the M9900 VR, with a vertical rod, and M9900 lockdown with visual lockdown indicator. M8800 Narrow stile exit device is designed for use on all types of narrow stile single and double doors, of 36" door width, and conveniently, non-handed for installation flexibility. Marks also stands behind its products with a lifetime mechanical warranty, an industry first. In compliance with ANSI BHMA A156.3 grade 1, ANSI/UL305 panic hardware and 2013 CA building code 11B-309.4, etc.

Features:

• Popular M9900 series, proven performance for high impact applications such as schools, universities and other institutional or commercial buildings, retrofitting all popular preps
• Choice of finishes and matching lever handles: Satin stainless US32D & trendy new matte black US19
• Ultra-durable, heavy-gauge extrusion with varying device lengths
• Solid flush mounted panic protector end cap & popular smooth case
• Easy installation and retrofits all popular preps.
• ANSI 156.3 (2001), grade 1
• 3 Hour fire-rated dead latch bolt; stainless steel 3/4" throw
• Miami-Dade hurricane version available
• Electronic latch retraction, REX, digital access, alarmed and delayed egress models available
• Narrow stile (M8800 series) ideal for glass door applications
• New! lockdown model (M99LD series) with clear view visual lockdown Indicator on inside, red or green, confirms outside handle is open or locked-down
• Key or T-turn on inside toggles the outside trim (included), with choice of finishes & many cylinder options, i.e., IC core
• Field reversible for easy stock and field application

Specifications:

• End Cover: Solid beveled "panic protector" design
• Strike: Roller strike
• Rail Assembly: Heavy gauge aluminum
• Dead latch Bolt: Stainless steel 3/4" throw
• Dead latch Bolt: Stainless steel 5/8"
• Dogging feature: Allen key (M9900)
• UL listed: For "panic hardware" and fire rated model 3 hour fire doors up to 38" x 86"
• ANSI: ANSI 156.3 (2001), requirements for grade 1
• 3 Hour fire rating

Finishes:

• 19 - Matte black
• US32D - Satin stainless
