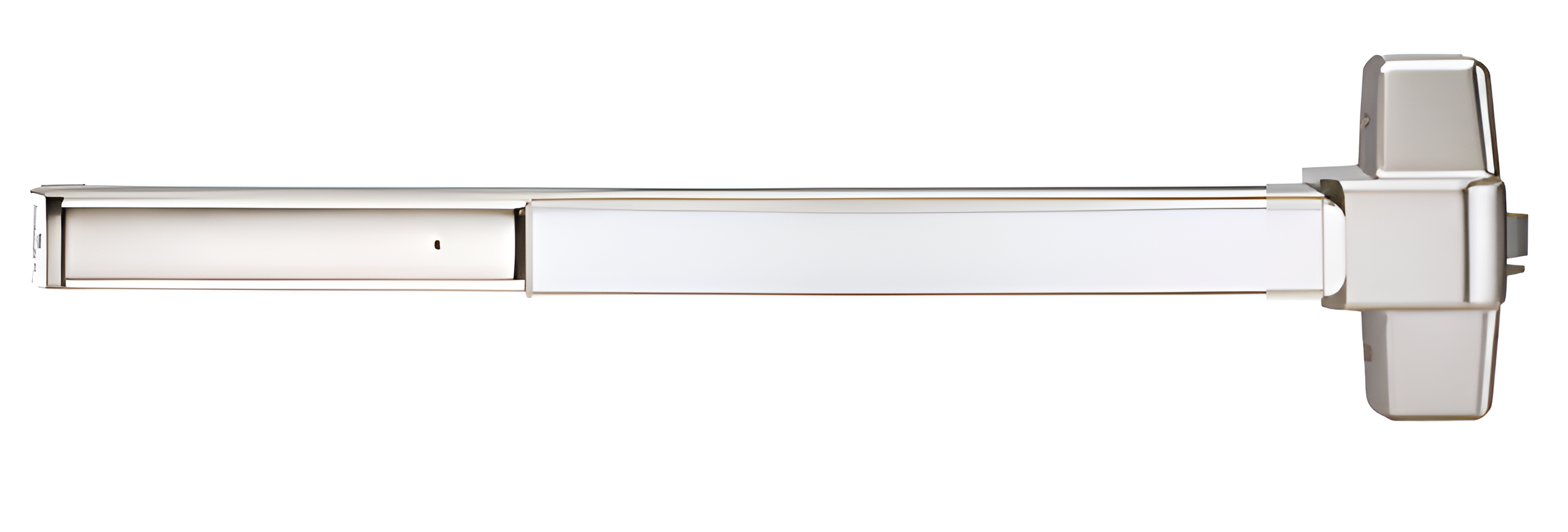

Marks Hardware M9900ER/32D-36 Rim Exit Device, Electric Latch Retraction, 24VDC, 36in, Grade 1, Stainless Steel

Marks Hardware M9900ER/32D-36 Rim Exit Device offers a robust solution for high-traffic environments, ensuring safety and accessibility. Designed with electric latch retraction, this device operates on 24VDC, making it an ideal choice for institutional and commercial buildings such as schools and universities. The heavy-duty cast chassis provides exceptional durability, while the stainless steel finish (630/US32D) ensures a sleek, professional appearance. This Grade 1 exit device features a 36-inch width and is non-handed, allowing for flexible installation on various door types. Its solid beveled "panic protector" end cover and smooth touch-bar assembly minimize potential hazards during operation. The M9900ER model accommodates retrofitting with popular preps, making it a convenient choice for upgrades. Compliant with ANSI BHMA A156.3 Grade 1 standards and UL listed for panic hardware, this exit device includes a 3-hour fire-rated dead latch bolt with a ¾-inch throw for enhanced security. The roller strike design ensures reliable engagement, while the optional models, including lockdown versions, cater to specific security needs. With a lifetime mechanical warranty from Marks Hardware, you can trust in the longevity and performance of this essential safety device.

Rim Exit Device, with Electric Latch Retraction, 24VDC, Less Trim, No Dogging, 36in, Grade 1, 630/US32D Stainless Steel

The M9900 panic exit devices offer a simple, heavy-duty, easily installed solution where high quality panic and fire listed hardware is needed. These extremely durable, grade 1 exit devices are perfect for high impact applications such as schools, universities and other institutional or commercial buildings, and retrofit all popular preps. The heavy-duty cast chassis provides superior durability, while the smooth reduced projection touch-bar assembly minimizes catch hazards and mitered steel flush mounted panic protector end caps, prevent abuse. Other variations include the M9900 VR, with a vertical rod, and M9900 lockdown with visual lockdown indicator. M8800 Narrow stile exit device is designed for use on all types of narrow stile single and double doors, of 36" door width, and conveniently, non-handed for installation flexibility. Marks also stands behind its products with a lifetime mechanical warranty, an industry first. In compliance with ANSI BHMA A156.3 grade 1, ANSI/UL305 panic hardware and 2013 CA building code 11B-309.4, etc.

Features:

• Popular M9900 series, proven performance for high impact applications such as schools, universities and other institutional or commercial buildings, retrofitting all popular preps
• Choice of finishes and matching lever handles: Satin stainless US32D & trendy new matte black US19
• Ultra-durable, heavy-gauge extrusion with varying device lengths
• Solid flush mounted panic protector end cap & popular smooth case
• Easy installation and retrofits all popular preps.
• ANSI 156.3 (2001), grade 1
• 3 Hour fire-rated dead latch bolt; stainless steel 3/4" throw
• Miami-Dade hurricane version available
• Electronic latch retraction, REX, digital access, alarmed and delayed egress models available
• Narrow stile (M8800 series) ideal for glass door applications
• New! lockdown model (M99LD series) with clear view visual lockdown Indicator on inside, red or green, confirms outside handle is open or locked-down
• Key or T-turn on inside toggles the outside trim (included), with choice of finishes & many cylinder options, i.e., IC core
• Field reversible for easy stock and field application

Specifications:

• End Cover: Solid beveled "panic protector" design
• Strike: Roller strike
• Rail Assembly: Heavy gauge aluminum
• Dead latch Bolt: Stainless steel 3/4" throw
• Dead latch Bolt: Stainless steel 5/8"
• Dogging feature: Allen key (M9900)
• UL listed: For "panic hardware" and fire rated model 3 hour fire doors up to 38" x 86"
• ANSI: ANSI 156.3 (2001), requirements for grade 1
• 3 Hour fire rating

Finishes:

• 19 - Matte black
• US32D - Satin stainless
