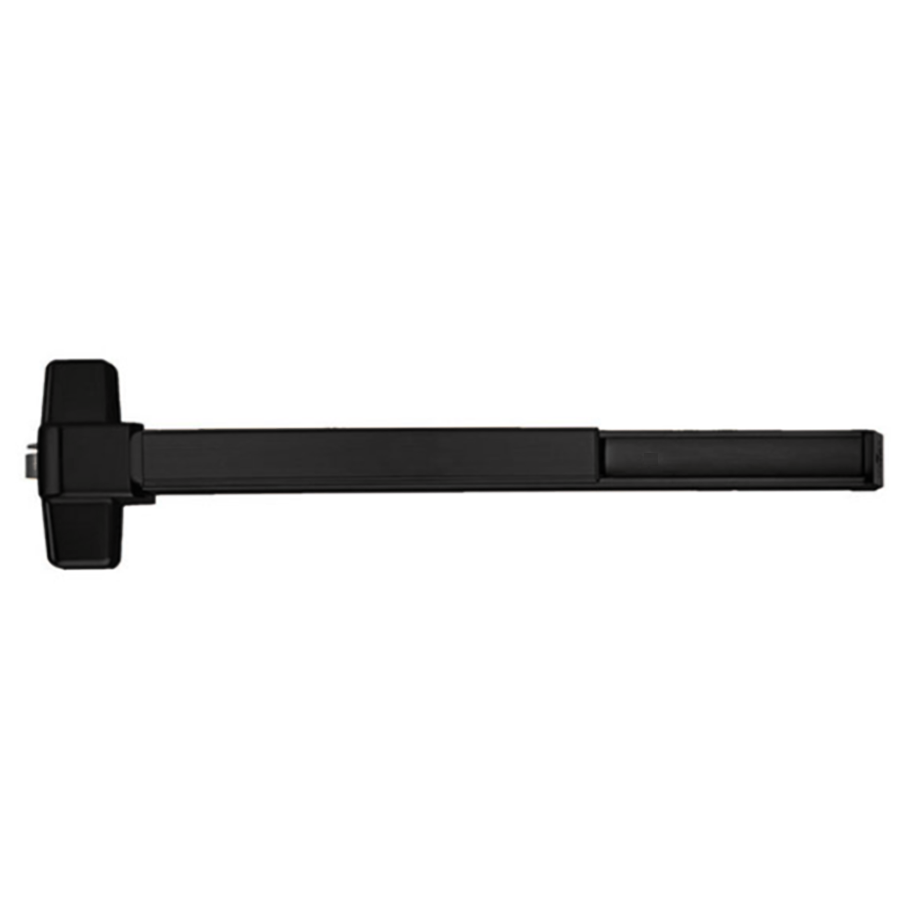

Marks Hardware M9900F-10B (19 BLACK) Fire Rated Rim Exit Device, 36in, Grade 1, Flat Black Powder Coat

Marks Hardware M9900F-10B (19 BLACK) Rim Exit Device combines functionality and durability in a sleek design tailored for high-impact environments. This fire-rated exit device is engineered for use in schools, universities, and commercial buildings, making it a reliable choice for safety and ease of access. With its heavy-duty cast chassis and robust flat black powder coat finish, this device stands up to rigorous use while maintaining a modern aesthetic. The M9900 series features a smooth touch-bar assembly, which minimizes catch hazards, ensuring a safe exit path in emergencies. Its non-handed design facilitates easy installation and retrofitting on various door preparations, enhancing flexibility for building professionals. The stainless steel 3/4" throw dead latch bolt provides a secure locking mechanism, while the solid beveled panic protector end cap adds an extra layer of durability against wear and tear. This model adheres to ANSI BHMA A156.3 grade 1 standards and is UL listed for panic hardware, with a fire rating of up to three hours for doors measuring 38" x 86". Backed by a lifetime mechanical warranty, the Marks Hardware M9900F-10B ensures long-lasting performance and peace of mind for property owners and building managers alike.

Rim Exit Device, Fire Rated, Less Trim, No Dogging, 36in, Grade 1, 622/US19 Flat Black Powder Coat (10B not Available, made in 19 Black)

The M9900 panic exit devices offer a simple, heavy-duty, easily installed solution where high quality panic and fire listed hardware is needed. These extremely durable, grade 1 exit devices are perfect for high impact applications such as schools, universities and other institutional or commercial buildings, and retrofit all popular preps. The heavy-duty cast chassis provides superior durability, while the smooth reduced projection touch-bar assembly minimizes catch hazards and mitered steel flush mounted panic protector end caps, prevent abuse. Other variations include the M9900 VR, with a vertical rod, and M9900 lockdown with visual lockdown indicator. M8800 Narrow stile exit device is designed for use on all types of narrow stile single and double doors, of 36" door width, and conveniently, non-handed for installation flexibility. Marks also stands behind its products with a lifetime mechanical warranty, an industry first. In compliance with ANSI BHMA A156.3 grade 1, ANSI/UL305 panic hardware and 2013 CA building code 11B-309.4, etc.

Features:

• Popular M9900 series, proven performance for high impact applications such as schools, universities and other institutional or commercial buildings, retrofitting all popular preps
• Choice of finishes and matching lever handles: Satin stainless US32D & trendy new matte black US19
• Ultra-durable, heavy-gauge extrusion with varying device lengths
• Solid flush mounted panic protector end cap & popular smooth case
• Easy installation and retrofits all popular preps.
• ANSI 156.3 (2001), grade 1
• 3 Hour fire-rated dead latch bolt; stainless steel 3/4" throw
• Miami-Dade hurricane version available
• Electronic latch retraction, REX, digital access, alarmed and delayed egress models available
• Narrow stile (M8800 series) ideal for glass door applications
• New! lockdown model (M99LD series) with clear view visual lockdown Indicator on inside, red or green, confirms outside handle is open or locked-down
• Key or T-turn on inside toggles the outside trim (included), with choice of finishes & many cylinder options, i.e., IC core
• Field reversible for easy stock and field application

Specifications:

• End Cover: Solid beveled "panic protector" design
• Strike: Roller strike
• Rail Assembly: Heavy gauge aluminum
• Dead latch Bolt: Stainless steel 3/4" throw
• Dead latch Bolt: Stainless steel 5/8"
• Dogging feature: Allen key (M9900)
• UL listed: For "panic hardware" and fire rated model 3 hour fire doors up to 38" x 86"
• ANSI: ANSI 156.3 (2001), requirements for grade 1
• 3 Hour fire rating

Finishes:

• 19 - Matte black
• US32D - Satin stainless
