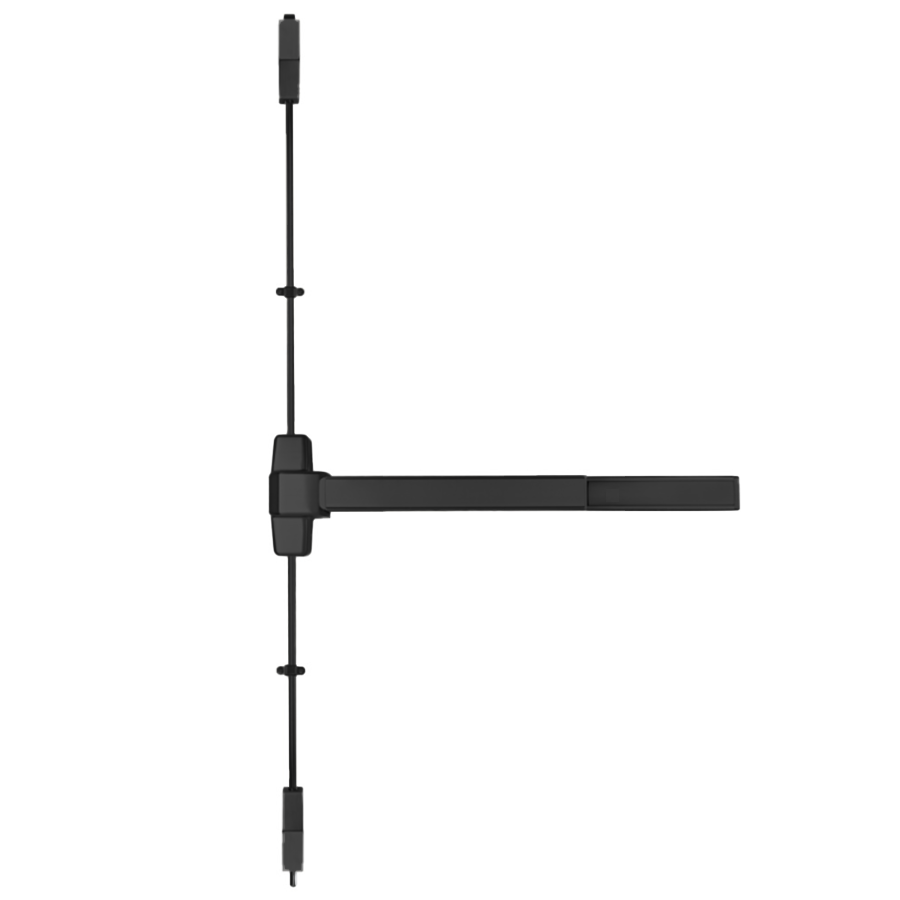

Marks Hardware M9900F-VR-10B (19 BLACK) SVR Fire Rated Surface Vertical Rod Exit Device, Hex Key Dogging, Flat Black

Marks Hardware M9900F-VR-10B (19 BLACK) SVR Surface Vertical Rod Exit Device offers a robust and reliable solution for environments requiring high-quality panic and fire-rated hardware. Designed for high-impact applications such as schools and commercial buildings, this device features a heavy-duty cast chassis that ensures exceptional durability and performance. The smooth reduced projection touch-bar assembly minimizes catch hazards, while mitered steel flush-mounted panic protector end caps enhance resilience against abuse. With a 3-hour fire-rated dead latch bolt, this exit device meets stringent safety standards, including ANSI BHMA A156.3 grade 1 and UL305 for panic hardware. The Marks Hardware M9900F is conveniently field reversible, making installation straightforward and adaptable to various door setups. It is designed to fit doors measuring 36 inches by 84 inches and can accommodate all popular preparations for retrofitting. Available in a stylish matte black finish (19) and supported by a lifetime mechanical warranty, this exit device not only provides security but also complements modern architectural aesthetics. Whether you are upgrading existing exits or outfitting new constructions, the M9900F-VR-10B is an essential choice for safety and durability in demanding settings.

SVR Surface Vertical Rod Exit Device, Fire Rated, Less Trim, Hex Key Dogging, 36in x 84in, Grade 1, 622/US19 Flat Black Powder Coat (10B not Available, made in 19 Black)

The M9900 panic exit devices offer a simple, heavy-duty, easily installed solution where high quality panic and fire listed hardware is needed. These extremely durable, grade 1 exit devices are perfect for high impact applications such as schools, universities and other institutional or commercial buildings, and retrofit all popular preps. The heavy-duty cast chassis provides superior durability, while the smooth reduced projection touch-bar assembly minimizes catch hazards and mitered steel flush mounted panic protector end caps, prevent abuse. Other variations include the M9900 VR, with a vertical rod, and M9900 lockdown with visual lockdown indicator. M8800 Narrow stile exit device is designed for use on all types of narrow stile single and double doors, of 36" door width, and conveniently, non-handed for installation flexibility. Marks also stands behind its products with a lifetime mechanical warranty, an industry first. In compliance with ANSI BHMA A156.3 grade 1, ANSI/UL305 panic hardware and 2013 CA building code 11B-309.4, etc.

Features:

• Popular M9900 series, proven performance for high impact applications such as schools, universities and other institutional or commercial buildings, retrofitting all popular preps
• Choice of finishes and matching lever handles: Satin stainless US32D & trendy new matte black US19
• Ultra-durable, heavy-gauge extrusion with varying device lengths
• Solid flush mounted panic protector end cap & popular smooth case
• Easy installation and retrofits all popular preps.
• ANSI 156.3 (2001), grade 1
• 3 Hour fire-rated dead latch bolt; stainless steel 3/4" throw
• Miami-Dade hurricane version available
• Electronic latch retraction, REX, digital access, alarmed and delayed egress models available
• Narrow stile (M8800 series) ideal for glass door applications
• New! lockdown model (M99LD series) with clear view visual lockdown Indicator on inside, red or green, confirms outside handle is open or locked-down
• Key or T-turn on inside toggles the outside trim (included), with choice of finishes & many cylinder options, i.e., IC core
• Field reversible for easy stock and field application

Specifications:

• End Cover: Solid beveled "panic protector" design
• Strike: Roller strike
• Rail Assembly: Heavy gauge aluminum
• Dead latch Bolt: Stainless steel 3/4" throw
• Dead latch Bolt: Stainless steel 5/8"
• Dogging feature: Allen key (M9900)
• UL listed: For "panic hardware" and fire rated model 3 hour fire doors up to 38" x 86"
• ANSI: ANSI 156.3 (2001), requirements for grade 1
• 3 Hour fire rating

Finishes:

• 19 - Matte black
• US32D - Satin stainless
