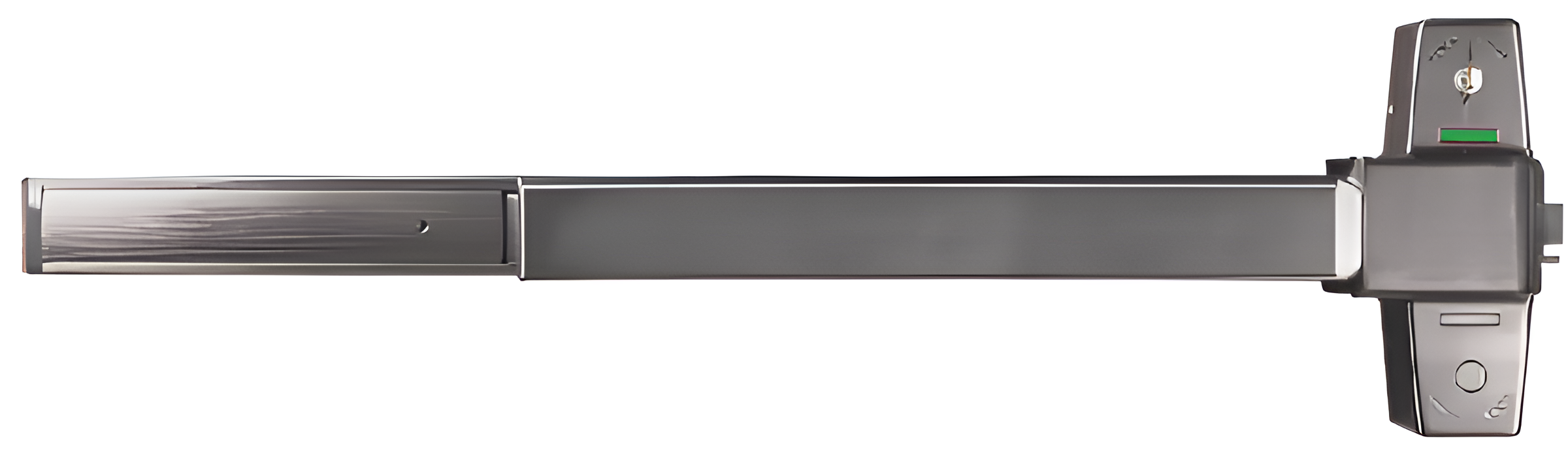

Marks Hardware M99LD-92/32D 36IN Lockdown Rim Exit Device, Marks C Keyway, 36in, Grade 1, Stainless Steel

Marks Hardware M99LD-92/32D 36IN Lockdown Rim Exit Device delivers a robust solution for high-security environments, featuring a Marks C keyway and a key-in-lever mechanism for effective lockdown capabilities. This field-reversible exit device is designed for effortless installation on various door configurations, making it a versatile choice for institutional and commercial buildings, including schools and universities. Crafted from durable stainless steel with a sleek satin finish, the M99LD-92/32D models a heavy-gauge aluminum rail assembly and solid panic protector end caps, ensuring reliability in high-impact applications. The device meets ANSI/BHMA A156.3 grade 1 standards and is fire-rated for up to three hours, providing peace of mind in emergency situations. Its innovative lockdown feature includes a clear view visual indicator to confirm the status of the outside handle, allowing for easy management of access. The included M996 trim with an American-style lever adds to its aesthetic appeal while enhancing functionality. With no dogging feature and a choice of finishes, this exit device not only meets safety regulations but also integrates seamlessly into any architectural design. Marks Hardware stands behind the M99LD-92/32D with a lifetime mechanical warranty, ensuring long-lasting performance and reliability in your security solutions.

Lockdown Rim Exit Device, Marks C Keyway, Key-in-Lever on Device Head for Lockdown, Field-Reversible, Includes M996 Trim with American Style Lever, 36in, No Dogging, Grade 1, 630/US32D Stainless Steel

The M9900 panic exit devices offer a simple, heavy-duty, easily installed solution where high quality panic and fire listed hardware is needed. These extremely durable, grade 1 exit devices are perfect for high impact applications such as schools, universities and other institutional or commercial buildings, and retrofit all popular preps. The heavy-duty cast chassis provides superior durability, while the smooth reduced projection touch-bar assembly minimizes catch hazards and mitered steel flush mounted panic protector end caps, prevent abuse. Other variations include the M9900 VR, with a vertical rod, and M9900 lockdown with visual lockdown indicator. M8800 Narrow stile exit device is designed for use on all types of narrow stile single and double doors, of 36" door width, and conveniently, non-handed for installation flexibility. Marks also stands behind its products with a lifetime mechanical warranty, an industry first. In compliance with ANSI BHMA A156.3 grade 1, ANSI/UL305 panic hardware and 2013 CA building code 11B-309.4, etc.

Features:

• Popular M9900 series, proven performance for high impact applications such as schools, universities and other institutional or commercial buildings, retrofitting all popular preps
• Choice of finishes and matching lever handles: Satin stainless US32D & trendy new matte black US19
• Ultra-durable, heavy-gauge extrusion with varying device lengths
• Solid flush mounted panic protector end cap & popular smooth case
• Easy installation and retrofits all popular preps.
• ANSI 156.3 (2001), grade 1
• 3 Hour fire-rated dead latch bolt; stainless steel 3/4" throw
• Miami-Dade hurricane version available
• Electronic latch retraction, REX, digital access, alarmed and delayed egress models available
• Narrow stile (M8800 series) ideal for glass door applications
• New! lockdown model (M99LD series) with clear view visual lockdown Indicator on inside, red or green, confirms outside handle is open or locked-down
• Key or T-turn on inside toggles the outside trim (included), with choice of finishes & many cylinder options, i.e., IC core
• Field reversible for easy stock and field application

Specifications:

• End Cover: Solid beveled "panic protector" design
• Strike: Roller strike
• Rail Assembly: Heavy gauge aluminum
• Dead latch Bolt: Stainless steel 3/4" throw
• Dead latch Bolt: Stainless steel 5/8"
• Dogging feature: Allen key (M9900)
• UL listed: For "panic hardware" and fire rated model 3 hour fire doors up to 38" x 86"
• ANSI: ANSI 156.3 (2001), requirements for grade 1
• 3 Hour fire rating

Finishes:

• 19 - Matte black
• US32D - Satin stainless
