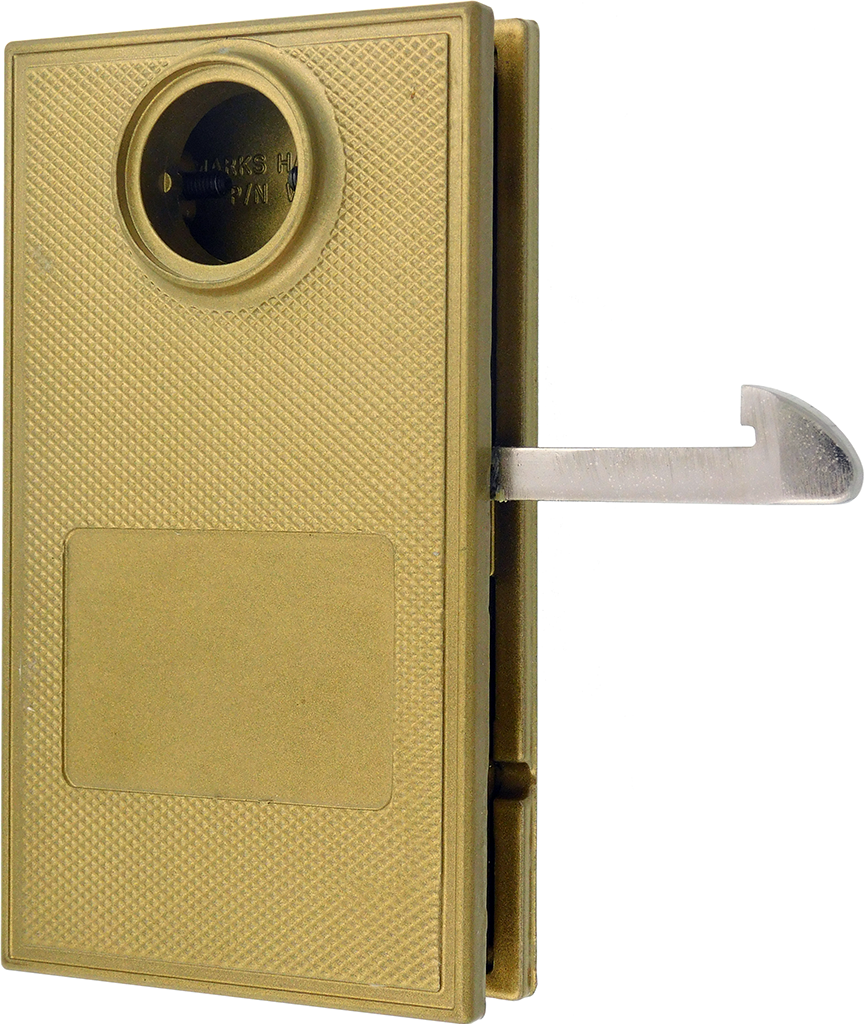

Marks Hardware W3860 Sliding Gate Lockset, Double Cylinder, 5/8in Channel, Bronze Powder Coat

Marks Hardware W3860 Sliding Gate Lockset offers a robust security solution for woven wire applications. Designed with a double cylinder mechanism, this lockset ensures enhanced protection for your gates. The patented "no fallout" feature keeps all internal components securely in place, even when the lock body is inverted or the cover is removed, simplifying maintenance and operation. Measuring 3-5/8" wide and 6-1/4" tall, this lockset is crafted from durable cast aluminum and finished with a bronze powder coat, delivering both strength and aesthetic appeal. The 5/8" channel size and .950" hook gap provide compatibility with various gate designs, while the easily reversible handing allows for straightforward installation and adjustment by simply reversing the latch or hook. Additionally, the tapered turnpiece design prevents unauthorized tampering from the locked side of the gate, enhancing security. Weighing in at 22 lbs, this lockset is built to withstand the rigors of daily use while maintaining its functionality. Whether for residential or commercial properties, the Marks Hardware W3860 Sliding Gate Lockset stands as a reliable choice for securing your gates effectively. Optional knob and lever actuators are available, allowing for customization to suit your specific needs.

Sliding Gate Lockset, Double Cylinder, .950in Hook Gap, 5/8in Channel Size, Reversible Handing, Bronze Powder Coat

Gate locks for woven wire applications feature a patented "no fallout" design. The lock components are held in place when the cover is removed, even if the lock body is inverted. Changing the handing of the lock only requires reversing the latch or hook. Models are available in several latch or hook projections and are finished in a durable gold powder coat.

Features:

• Easily reversible
• Case, cast aluminum 3-5/8" x 6-1/4" x 1"
• Bronze powder coat finish
• Groove: 1/2" wide x 3/16" deep, all sides for wire gate insertion
• 5 pin cylinder(s)
• Lock only, no keeper furnished
• Patented "no fallout" feature prevents components from falling out of the lock body when the handing is changed, even if the lock body is inverted.
• Handing is easily reversible
• Tapered turnpiece prevents tampering from locked side of gate
• Optional knob and lever actuators available

Models:

• W3800:
• Hook Gap: .825"
• Channel Size: 1/2"
• Weight: 21 lbs
• W3810:
• Hook Gap: .950"
• Channel Size: 5/8"
• Weight: 22 lbs
• W3820:
• Hook Gap: 1.075"
• Channel Size: 3/4"
• Weight: 21 lbs
• W3830:
• Hook Gap: 1.625"
• Channel Size: 1-1/4"
• Weight: 22 lbs
• W3850:
• Hook Gap: .825"
• Channel Size: 1/2"
• Weight: 22 lbs
• W3860:
• Hook Gap: .950"
• Channel Size: 5/8"
• Weight: 22 lbs
• W3870:
• Hook Gap: 1.075"
• Channel Size: 3/4"
• Weight: 22 lbs
• W3880:
• Hook Gap: 1.625"
• Channel Size: 1-1/4"
• Weight: 22 lbs
