Medeco 100400H-W-26-G3-P Biaxial Rim Cylinder 6-Pin, G3 Keyway, Pinned with 2 Keys, Satin Chrome 26

Medeco High Security Locks 100400H-W-26-G3-P Biaxial Rim Cylinder is designed for those who demand superior security and reliability. This 6-pin rim cylinder features a G3 keyway and is pinned with two keys, providing robust protection against unauthorized duplication through its patented key control. Constructed from solid brass, the cylinder boasts UL437 certification for drill and pick resistance, ensuring it can withstand various forms of physical attack. Its unique sidebar mechanism offers exceptional protection against picking and bumping, aligning keys only when elevated and rotated correctly. The Medeco³ design also allows for convenient retrofitting into existing hardware, reducing the need for costly replacements. With BHMA A156.30 and A156.5 Grade 1 certifications, this cylinder guarantees high-quality standards suitable for heavy use applications. The set screw pin chamber caps enable quick re-keying without disassembling the cylinder, streamlining maintenance. Designed specifically for auxiliary rim locks, this cylinder is versatile enough to fit various manufacturers' mortise and rim locks. The satin chrome finish not only enhances its aesthetic appeal but also provides added durability. For professionals and homeowners seeking reliable security solutions, the Medeco High Security Locks Biaxial Rim Cylinder stands as a premium choice that combines form, function, and exceptional security features.

Biaxial Rim Cylinder 6-Pin, G3 Keyway, Pinned with 2 Keys, Satin Chrome 26

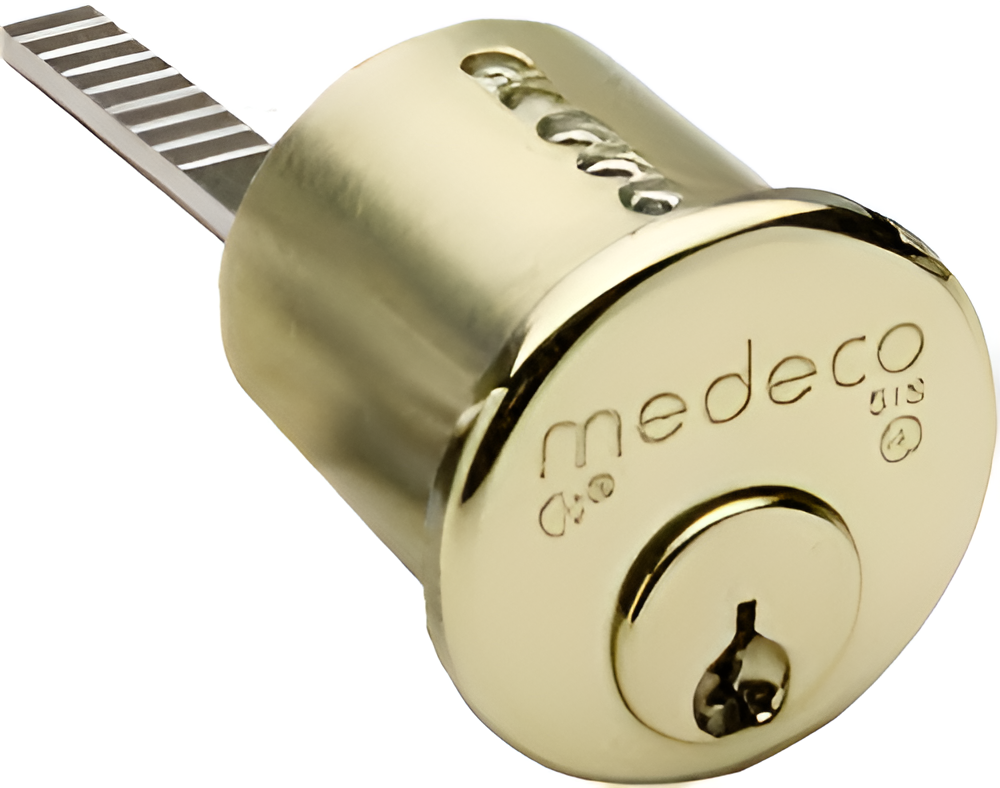

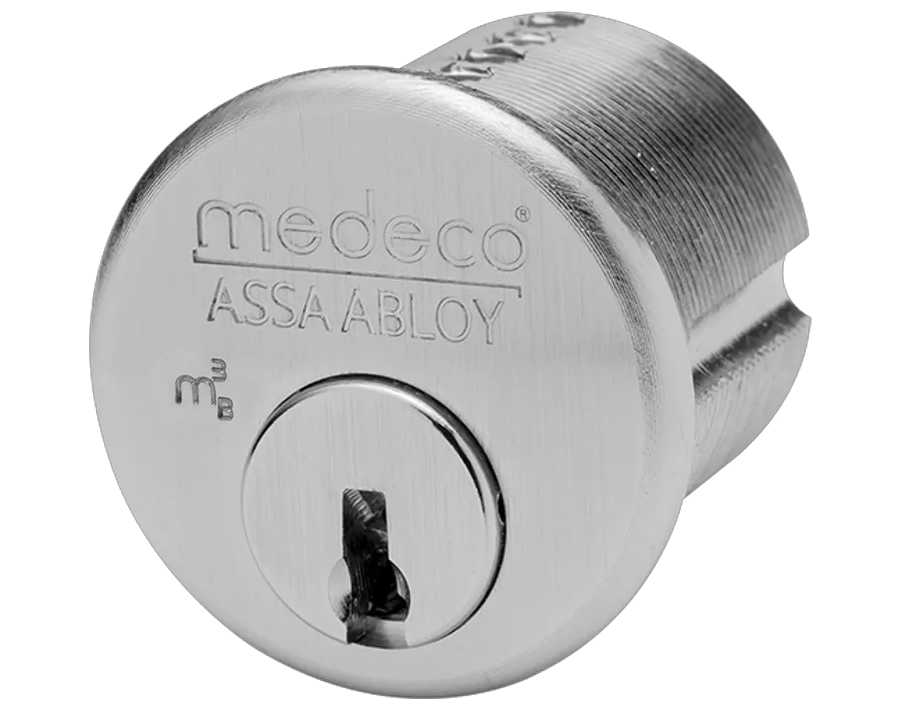

Medeco® rim and mortise cylinders provide patented key control and the Medeco³ version provides UL437 physical security in adaptable retrofit cylinder formats. Medeco® mortise cylinders have threads on the outside of the shell and are designed to be screwed into other manufacturer's mortise lock cases. A cam on the back of the cylinder operates the lock mechanism and a set screw holds the mortise cylinder in place. Medeco® rim cylinders are used with auxiliary rim locks such as: surface mounted deadbolts, night latches, panic devices and jimmy proof locks (also know as vertical drop bolts or interlocking deadbolts). Rim cylinders are held in place with a back plate and two mounting screws. 10 Series, rim and mortise cylinders, are UL437 listed for drill and pick resistance, and the those that incorporate the Medeco³, BiLevel, or Medeco X4 design, offer utility patented key control.

Features:

• Patented Key Control: Protects against unauthorized duplication of your keys. Uses existing hardware Medeco offers the largest selection of retrofit rim & mortise cylinders that reduce cost by eliminating the need to replace your existing hardware.
• Can Be Master keyed: Medeco³ and BiLevel rim & mortise cylinders can be master keyed into a system containing Medeco BiLevel and Medeco³ mechanical as well as Medeco³ CLIQ eCylinders.
• Protection From Physical Attack: Medeco³ rim & mortise cylinders are UL 437 listed and stand up to drilling, picking and other forms of physical attack.
• Special Angle Cut Keys: Requires a special key cutting machine and access to Medeco specific blanks, available in a variety of restrictions to support every need.
• Picking and Bumping Protection: Medeco³ cylinders use a sidebar that prevent the key from rotating until it is elevated, rotated and aligned in the correct position. This feature protects against bumping and picking attacks.

Specifications:

• BHMA A156.30 Certification assures patent protected key control and physical strength
• BHMA A156.5 Grade 1 certification assures consistent quality for heavy use applications
• Solid brass construction provides high quality and long cylinder life
• Set screw pin chamber caps allow quick and easy pinning and re-keying without the need to take the cylinder apart
• Large variety of cylinder lengths and cam/tailpiece configurations provide excellent retrofit capability and reduce the need to replace the entire locking device
• Applications: Flexible options designed to retrofit various manufacturers of mortise and rim locks

Key Technologies:

• - = Original
• K = Medeco KM
• T = Medeco³
• W = Biaxial
• J = Medeco³ BiLevel
• C = Classic CLIQ
• N = Medeco X4
• S = M³ CLIQ
• M = Medeco X4 CLIQ

Finishes:

• 05/US03 - Bright brass
• 06/US04 - Satin brass
• 09/US5 - Antique brass
• 11/US9 - Bright bronze
• 12/US10 - Satin bronze
• 13/US10B - Dark bronze/oil rubbed
• 18/US14 - Bright nickel
• 19/US15 - Satin nickel
• 20/US15A - Antique nickel
• 22/US19 - Flat black
• 24/US20A - Dark bronze/clear coat
• 25/US26 - Bright chrome
• 26/US26D - Satin chrome
