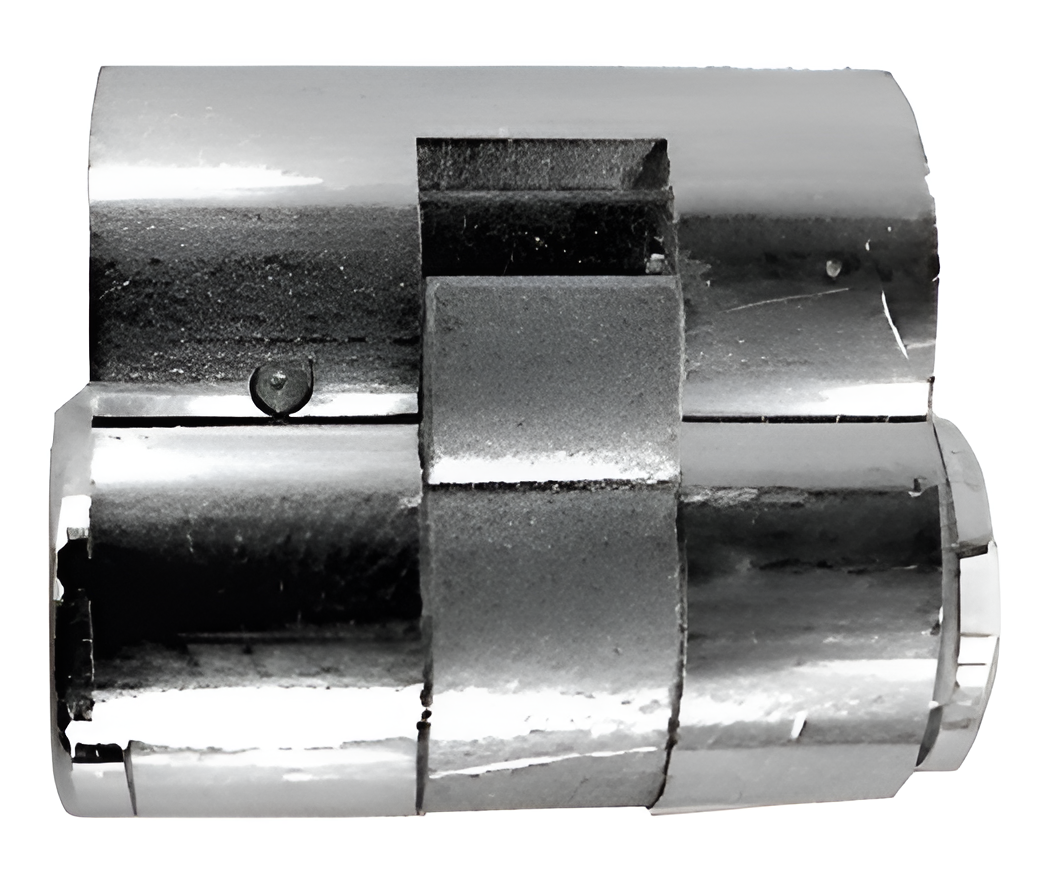

Medeco 320201-T-26-DLS M3 Medeco LFIC Core, 6 Pin, DL Keyway, Sub-Assembled, Satin Chrome 26

Medeco High Security Locks 320201-T-26-DLS M3 Medeco LFIC Core combines advanced security with user-friendly functionality. Designed for high-turnover environments, this 6-pin LFIC core allows for quick and easy cylinder changes without the need for technical expertise. Utilizing a special control key, personnel can swiftly replace the cylinder, providing an efficient rekeying solution that saves both time and money. This model features Medeco's patent-pending key control, which protects against unauthorized duplication, while its innovative design deters 3D printed key copies. Enhanced security is ensured through robust construction, including hardened inserts that resist drilling, along with multiple protections against picking and bumping. Rated to ANSI A156.30 and ANSI A156.5 Grade 1, the Medeco LFIC core is built for heavy-duty use in various applications, including offices, schools, hospitals, and perimeter doors. With a satin chrome finish, this cylinder not only offers aesthetic appeal but also durability. The ability to master key into larger systems and use existing hardware makes it an economical choice for security upgrades. Medeco’s LFIC cores are a reliable option for those seeking flexibility and peace of mind without compromising on security.

M3 Medeco LFIC Core, 6 Pin, DL Keyway, Sub-Assembled, Satin Chrome 26

Offering increased security without costly and time-consuming rekeying, interchangeable core cylinders enable quick and easy cylinder changes by non-technical personnel by using a special control key to remove the cylinder (core) from the lock housing. A core with a new combination can then be inserted, which in effect rekeys the lock. LFIC cylinders are often used on doors of high-turnover businesses, like fast-food or manufacturing environments, where rapid rekeying is often desirable. Medeco 4’s (M4) patent-pending high security technology provides protection against unauthorized duplication of keys, along with hardened inserts to resist drilling, and features that protect against other types of attack.

Features:

• Key Control: Patent-pending key control protects against unauthorized duplication of keys.
• Protection Against 3D Printing: A patent-pending movable element in the key deters unauthorized 3D printed copies of keys or blanks.
• Picking and Bumping Protection: M4 cylinders use cylinder side pins, a lift pin and a movable key element to engage a sidebar that prevents the key from turning until the elements are rotated and aligned in the correct position, protecting against bumping, picking and other attacks.
• Protection From Physical Attack: M4 LFIC cylinders are UL 437 listed to stand up to drilling, picking and other forms of physical attack.
• Special Angled Cut Keys: A special key cutting machine and access to Medeco specific blanks are required to duplicate M4 keys, which are available in multiple levels of restriction to support every need.
• Quickly Change Cores: Provides quick and easy cylinder changes in the event keys are lost or stolen.
• Uses Existing Hardware: Medeco offers a large selection of retrofit LFIC that reduce cost by eliminating the need to replace existing hardware.
• Master Keying Capabilities: M4 cylinders can be master keyed into a system that includes M4 and M4 BiLevel keys and cylinders. Very large systems are possible.

Specifications:

• Meets ANSI A156.30 assuring patent protected key control and physical strength (M4, M3)
• ANSI A156.5 Grade 1 certification assures consistent quality for heavy use applications (Medeco 4, M3)
• Solid brass construction provides high quality and long cylinder life
• Nickel plated pins provide exceptional wear resistance and additional hardened stainless steel pins provide drill resistance
• Ability to key with non-interchangeable core cylinders for cost effective system flexibility

Applications:

• Office buildings
• Schools and universities
• Apartments
• Perimeter doors
• Hospitals

Pinning:

• S: Sub assembled
• N: Sub assembled
• No side pins (M4 only)
• No slider (M3 only)
• P: Pinned
• M: Master keyed
• R: Master keyed blade and side pins (M4 only)

Technology:

• H: M4
• P: M4 BiLevel
• T: M3
• J: M3 BiLevel
• S: M3 CLIQ
• W: Biaxial
• -: Original
• K: KM
• C: Classic CLIQ
• N: X4
• M: X4 CLIQ
• G: XT

Finishes:

• 605/US03 - Bright brass
• 606/US4 - Satin brass
• 609/US5 - Antique brass
• 611/US9 - Bright bronze
• 612/US10 - Satin bronze
• 613/US10B - Oil rubbed bronze
• 618/US14 - Bright nickel
• 619/US15 - Satin nickel
• 620/US15A - Antique nickel
• 622/US19 - Black
• 625/US26 - Bright chrome
• 626/US26D - Satin chrome
