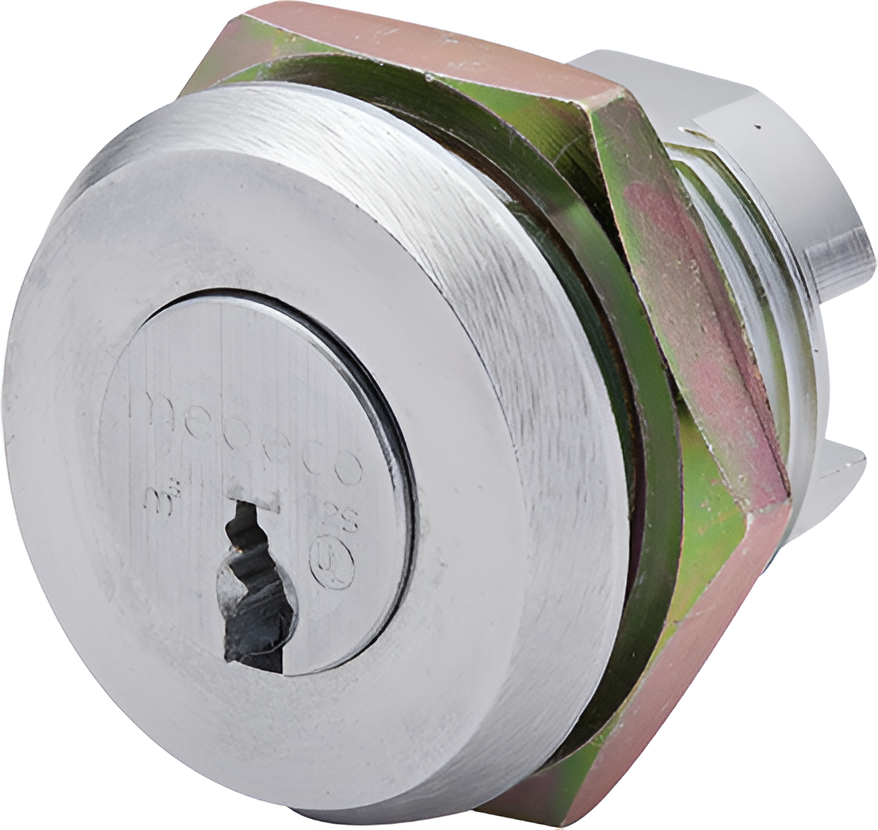

Medeco 640550AT-W-26-G8-S Biaxial Car Wash Lock, G8 Keyway, Sub-Assembled, Satin Chrome 26

Medeco High Security Locks 640550AT-W-26-G8-S Biaxial Car Wash Lock delivers unparalleled protection in a compact 3/4 inch diameter design. Engineered with hardened, stainless steel inserts, this cam lock offers exceptional resistance against drilling, pulling, and vandalism, making it the ideal choice for securing cabinets, safes, and access control systems. This high-security lock is UL 437 listed, ensuring superior physical strength and durability. Featuring triple locking technology, it provides advanced pick resistance, while the sidebar mechanism prevents key rotation until properly aligned, thwarting bumping and picking attempts. Constructed from solid brass, the 640550AT-W-26-G8-S is designed for long-lasting performance in both indoor and outdoor applications. The lock supports clockwise and counterclockwise rotation with options for 90 or 180-degree turns. It comes in a fixed core type and is available in various sizes to meet your specific needs, ensuring versatility for multiple applications. With a key retaining feature and the availability of keyed alike, keyed different, or master keyed systems, this lock enhances key control and system integrity. Backed by a 2-year limited warranty, Medeco High Security Locks 640550AT-W-26-G8-S combines robust security with reliable performance, making it an excellent choice for residential, commercial, and automotive use.

Biaxial Car Wash Lock, G8 Keyway, Sub-Assembled, Satin Chrome 26

High security cam locks are recognized throughout the world as the standard for protection in a 3/4 inch diameter lock. Medeco cam locks utilize hardened, stainless steel inserts throughout the cylinder to provide the ultimate defense against drilling, pulling, and other forms of vandal attacks. Patented key control programs prevent the unauthorized duplication of keys and maintain system integrity. Keyed alike, keyed different, or master keyed, Medeco offers a complete line of cam locks in a wide variety of sizes and functions to meet your specific needs.

Features:

• Medeco 3 cylinders meet BHMA test standards in the high security cylinders category.
• UL 437 listed for physical strength.
• Triple locking technology for ultimate pick resistance.
• Solid brass construction with strategically placed hardened inserts to thwart drilling attacks.
• For multiple applications requiring a 3/4" diameter lock.
• UL Listed and non-UL Listed models available (with or without security inserts).
• Clockwise or counterclockwise rotation, 90 or 180 degrees.
• Available in removable core format.
• Available in three standard sizes: 11/16 inch, 7/8 inch and 1 1/8 inch.
• Sidebar prevents the key from rotating until it is elevated, rotated, and aligned in the correct position. This feature protects against bumping and picking attacks.
• Stands up to picking, drilling, and other forms of physical attacks.
• Long-Lasting: made of durable machined brass for lasting performance.

Specifications:

• Body Material: Solid brass
• Core Type: Fixed
• Cylinder Format: Conventional
• Cylinder Pins: 3 pin, 4 pin, 5 pin
• Cylinder Type: Component
• Key Pull: 2.0
• Key Retaining: Key retaining
• Key System: Mechanical
• Lock Type: Cam Lock
• Maximum Length: 3"
• Minimum Length: 5/8"
• Number of Keys: 2
• Rotation Distance: 90, 180
• Security Type: High security [UL 437]
• Tennon Length: 3/8"
• Tennon Width: 109/500"
• Unlock Direction: Clockwise, counterclockwise
• Warranty: 2-year limited warranty
• Weather Resistance: Indoor/outdoor

Applications:

• Safes
• Banking
• Cabinets
• Access control
• Data encryption
