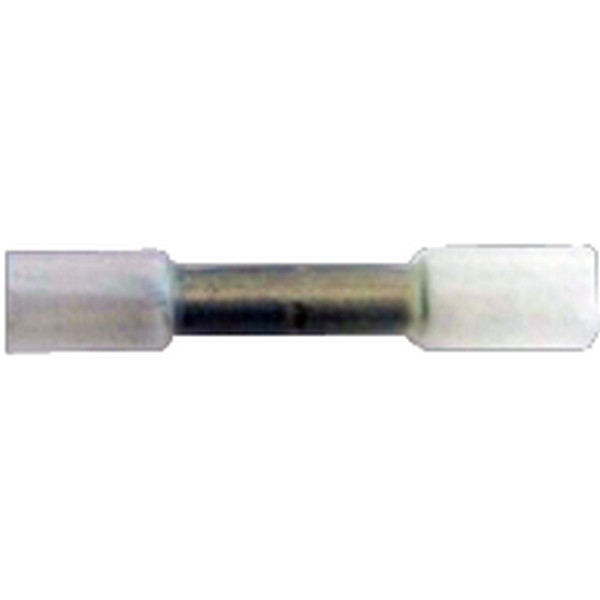

Morris 12331 Heat Shrinkable Butt Splice Supply Restock

Morris 12331 Heat Shrinkable Butt Splice is an essential addition to your electrical supply arsenal, designed for both durability and reliability. Constructed from high-strength tubular copper, this butt splice is electro-tin plated, ensuring excellent corrosion resistance for long-lasting performance in various applications. The insulation material is made from high-density polyethylene, providing enhanced protection. With an easy entry expanded insulation design, it effectively eliminates strand hang-ups, which increases crimping rates and offers superior mechanical strain relief. This means faster, more efficient connections, saving you time on the job. The Morris 12331 is versatile, accommodating a range of wire sizes from 26 AWG to 10 AWG, with maximum current ratings of up to 50 Amps for 10 AWG. It is rated for 600 Volts, making it suitable for both residential and commercial projects. The heat shrink temperature reaches 302°F (150°C), and it maintains functionality in a wide temperature range from 14°F to 221°F (-26°C to 105°C). Certified with a cULus listing, the Morris 12331 Heat Shrinkable Butt Splice is a dependable choice for professionals seeking high-quality, efficient wiring solutions.

Restock your supply of Heat Shrinkable Butt Splice with us.

• Resistant Temp: 14°F ~ 221°F (-26°C ~ 105°C)
• Max Current: 22 AWG - 9 Amps, 20 AWG - 12 Amps, 18 AWG - 17 Amps, 16 AWG - 18 Amps, 14 AWG - 30 Amps, 12 AWG - 35 Amps, 10 AWG - 50 Amps
• cULus Listed
• Max Ratings: 600 Volts
• Heat Shrinkable Butt Splice Material: High Strength Tubular Copper
• Shrink Temp: 302°F (150°C)
• Insulation Material: High Density PE
• Electro-Tin Plated for corrosion resistance
• Easy Entry Expanded Insulation eliminates strand "Hang Up", increasing crimping rates and provides mechanical strain relief
