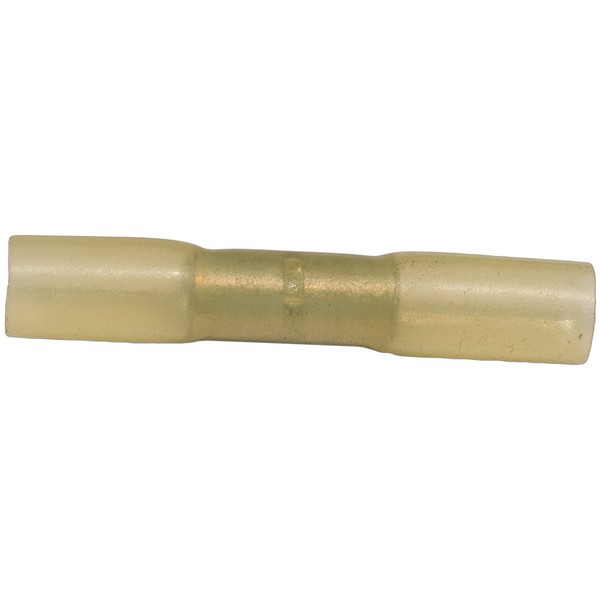

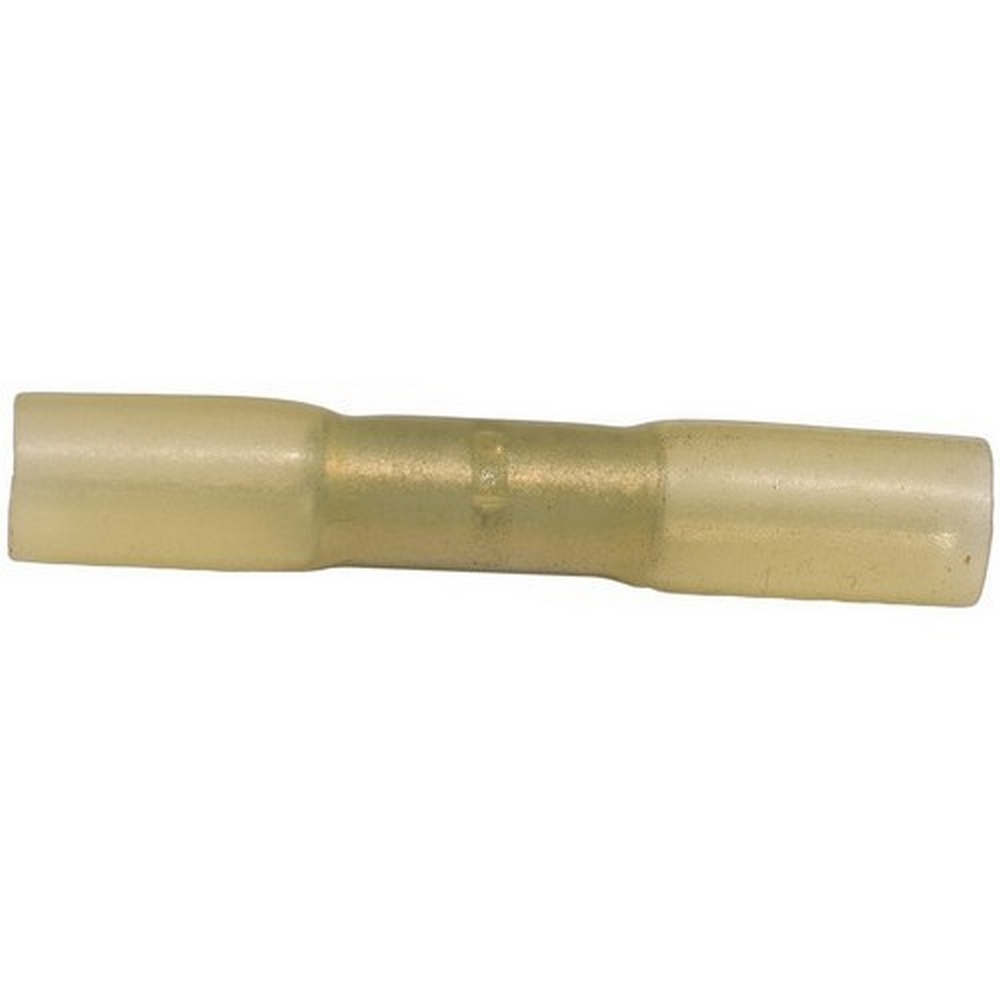

Morris 12336 Heat Shrinkable Butt Splice Supply Restock

Morris 12336 Heat Shrinkable Butt Splice offers a reliable solution for your electrical connections, ensuring durability and performance in various applications. Constructed from high-strength tubular copper, these butt splices are electro-tin plated to provide exceptional corrosion resistance, enhancing their longevity even in challenging environments. The insulation material is made from high-density polyethylene, which guarantees robust protection against external factors. An innovative easy entry expanded insulation design eliminates strand "hang up," significantly improving crimping rates and providing essential mechanical strain relief. With a maximum current rating of up to 50 amps for 10 AWG wire, this product accommodates a range of wire sizes from 12 AWG to 10 AWG, making it versatile for different projects. Morris 12336 is rated for 600 volts and can withstand temperatures from 14°F to 221°F, ensuring reliable performance in diverse conditions. Designed to shrink at temperatures of 302°F (150°C), these butt splices are cULus listed, meeting rigorous safety standards. Available in a bright yellow color, the Morris 12336 Heat Shrinkable Butt Splice is an essential addition

Restock your supply of Heat Shrinkable Butt Splice with us.

• Resistant Temp: 14°F ~ 221°F (-26°C ~ 105°C)
• Max Current: 22 AWG - 9 Amps, 20 AWG - 12 Amps, 18 AWG - 17 Amps, 16 AWG - 18 Amps, 14 AWG - 30 Amps, 12 AWG - 35 Amps, 10 AWG - 50 Amps
• cULus Listed
• Max Ratings: 600 Volts
• Heat Shrinkable Butt Splice Material: High Strength Tubular Copper
• Shrink Temp: 302°F (150°C)
• Insulation Material: High Density PE
• Electro-Tin Plated for corrosion resistance
• Easy Entry Expanded Insulation eliminates strand "Hang Up", increasing crimping rates and provides mechanical strain relief
