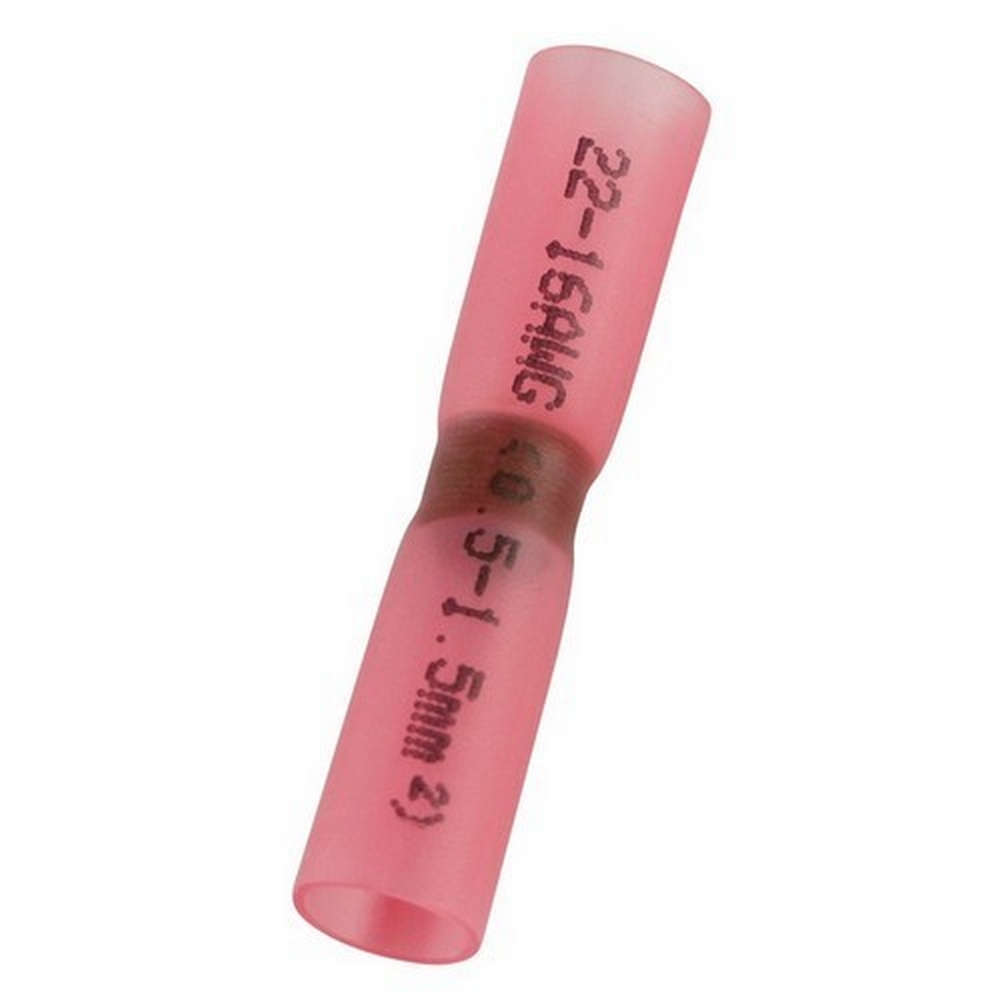

Morris 12346 Heat Shrinkable Parallel Solder Splices - Restock Your Supply

Morris 12346 Heat Shrinkable Parallel Splices - Solder provide a reliable solution for your electrical connection needs. Crafted from tubular tin, these splices are electro-tin plated to ensure superior corrosion resistance, making them ideal for both residential and industrial applications. The insulation material features high-density polyethylene heat shrink, which effectively protects against environmental factors and enhances durability. With a maximum electric current rating of up to 50 amps for 10 AWG wire, these splices accommodate a wide range of wire sizes from 22 AWG to 10 AWG, ensuring versatility for various projects. The maximum electric rating of 600 volts adds an extra layer of safety, allowing for dependable performance. Designed for ease of use, the heat shrink temperature reaches 302°F (150°C), while the splices can operate in temperature ranges from -40°F to 221°F (-40°C to 105°C). Additionally, these splices are cULus Listed, providing peace of mind regarding compliance with safety standards. Whether you're restocking your supplies or tackling a new project, the Morris 12346 Heat Shrinkable Parallel Splices - Solder are an essential addition to your toolkit. Trust in their quality to deliver strong, long-lasting connections every time.

Restock your supply of Heat Shrinkable Parallel Splices - Solder with us.

• Insulation Material: High Density PE Heat Shrink
• cULus Listed
• Resistant Temp: -40°F ~ 221°F (-40°C ~ 105°C)
• Maximum Electric Rating: 600 Volts
• Heat Shrinkable Parallel Splices - Solder Material: Tubular Tin
• Shrink Temp: 302°F (150°C)
• Maximum Electric Current: 22 AWG - 9 Amps, 20 AWG - 12 Amps, 18 AWG - 17 Amps, 16 AWG - 18 Amps, 14 AWG - 30 Amps, 12 AWG - 35 Amps, 10 AWG - 50 Amps
• Electro-tin plated for corrosion resistance

Resources

• Catalog PDF page
• Spec Data Sheets
• Spec Sheet
