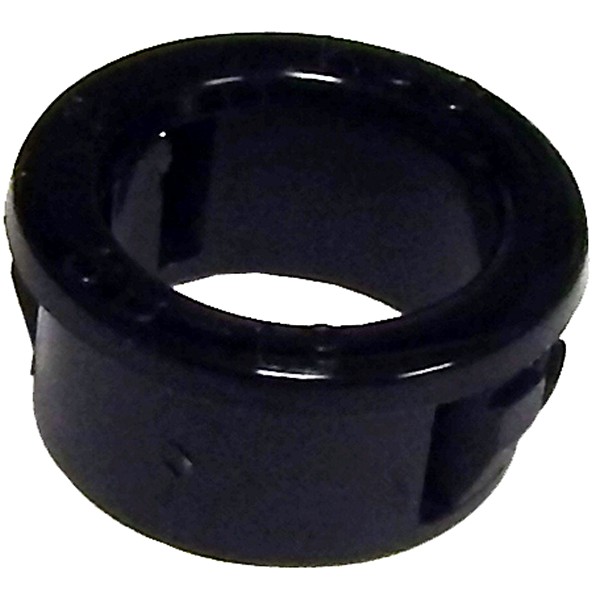

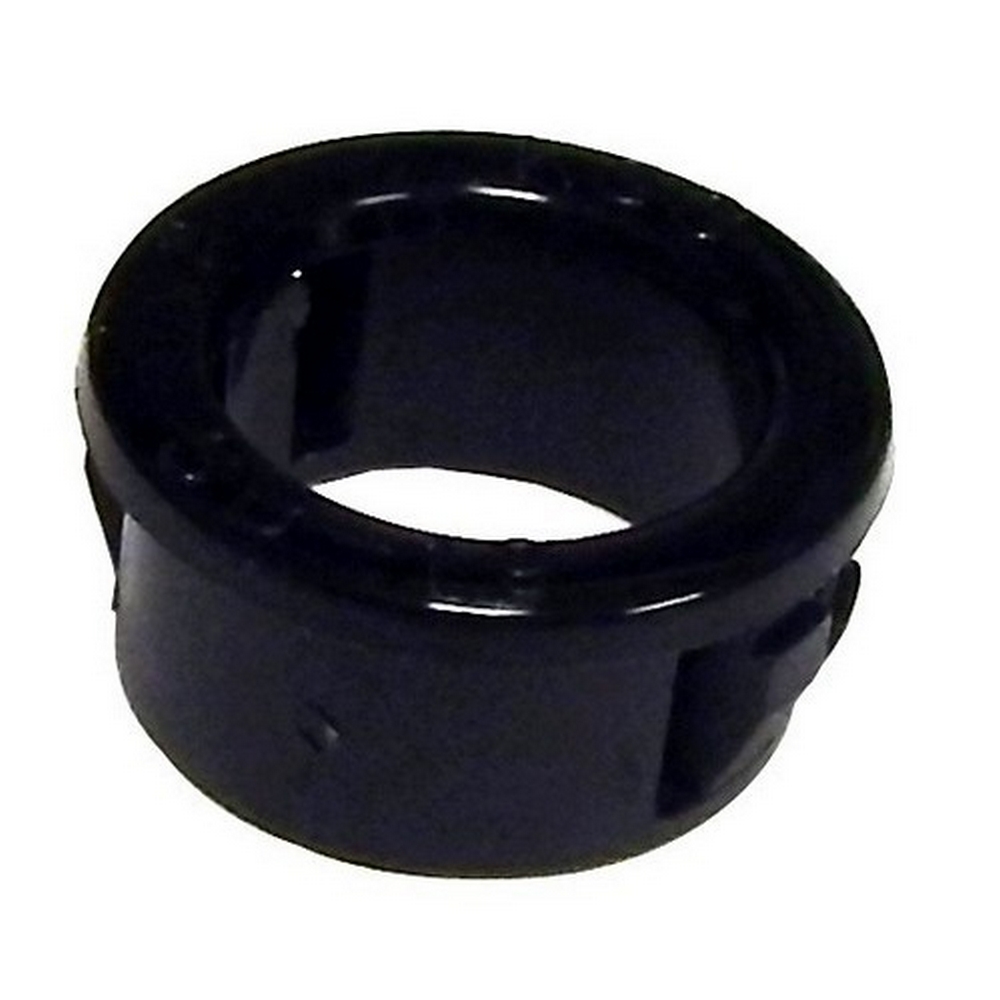

Morris 22314B Snap Bushings for Metal Panels keep wires safe.

Morris 22314B Snap Bushings for Metal Panels provide an effective solution for protecting wires in various applications. Designed specifically to eliminate sharp edges, these snap bushings insulate the holes in metal panels, ensuring the safety and longevity of your electrical cables, ropes, and utility lines as they pass through metal chassis. With a user-friendly design, the snap bushings easily lock into place with just fingertip pressure, providing a secure fit that you can rely on. They are suitable for steel thicknesses up to 1/8", making them versatile for different projects. Crafted from UL approved Nylon 6/6, 94V-2, these bushings not only meet safety standards but also offer durability and resilience in demanding environments. The specifications include a head diameter of 0.47", an inside diameter of 0.25", and a mounting hole diameter of 0.37", with an overall height of 0.41". Each bushing is UL Recognized, giving you peace of mind about their reliability. Please note a warning regarding cancer and reproductive harm. Morris 22314B Snap Bushings are an essential addition to your electrical toolkit, ensuring that your installation remains safe and efficient.

Snap Bushings for Metal Panels keep wires safe.

• Snap bushings Eliminate Sharp Edges and insulate your sharp-edged holes in metal panels
• 1/8" maximum steel thickness
• Snap Bushings Protect Electrical Cables, ropes, utility lines passing through metal chassis
• Easily Locks into Hole firmly with fingertip pressure
• UL Recognized
• Made from UL approved Nylon 6/6, 94V-2

Resources

• Catalog PDF page
• Spec Data Sheets
• Spec Sheet
