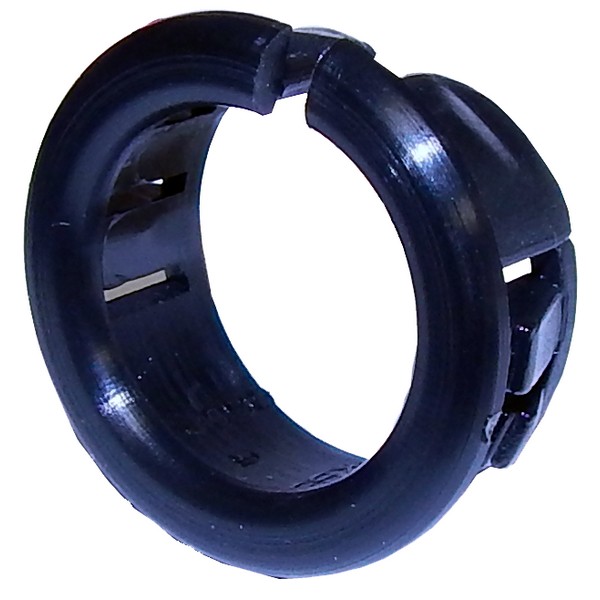

Morris 22364 Open/Closed Snap Bushings for Wire Integrity

Morris 22364 Open/Closed Snap Bushings offer a reliable solution for protecting wires and tubing from potential damage caused by sharp or uneven drilled and punched metal holes. Crafted with a smooth plastic chassis, these bushings ensure that your cables remain intact and are safeguarded against abrasions. Designed for versatility, the Morris 22364 can accommodate cable sizes too large to fit through the inside diameter of a standard bushing, making them a practical choice for various applications. With a maximum steel thickness of 1/8 inch, these bushings can be securely installed in a range of materials. The fingertip pressure snap-lock feature allows for quick and easy installation into a 1/2-inch mounting hole, even in situations where cables are already in place. Key dimensions include an overall height of 0.375 inches, a head diameter of 0.56 inches, and an inside diameter of 0.31 inches, ensuring that they fit seamlessly within your project specifications. Please note that the dimensions provided are actual sizes, not trade sizes. For professional builders and knowledgeable homeowners looking for reliable cable protection, the Morris 22364 Open/Closed Snap Bushings deliver both functionality and ease of use.

Open/Closed Snap Bushings keep wires intact.

• Protect Wires, Tubing, etc. from sharp/uneven drilled & punched metal holes with smooth plastic chassis
• Open/closed snap bushings can accommodate cables too large to fit through the inside diameter of a standard bushing
• 1/8" maximum steel thickness
• Dimensions are Actual Sizes Not Trade Sizes
• Finger tip pressure snap-locks the open/closed snap bushing into the mounting hole
• Can be applied where cables are already installed

Resources

• Catalog PDF page
• Spec Data Sheets
• Spec Sheet
