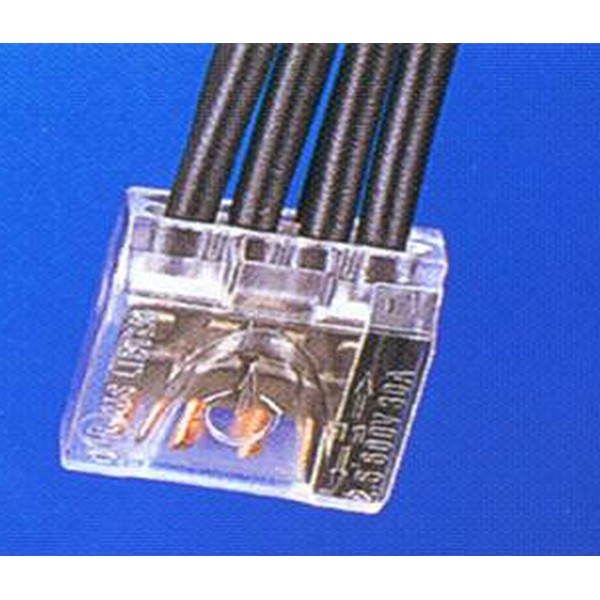

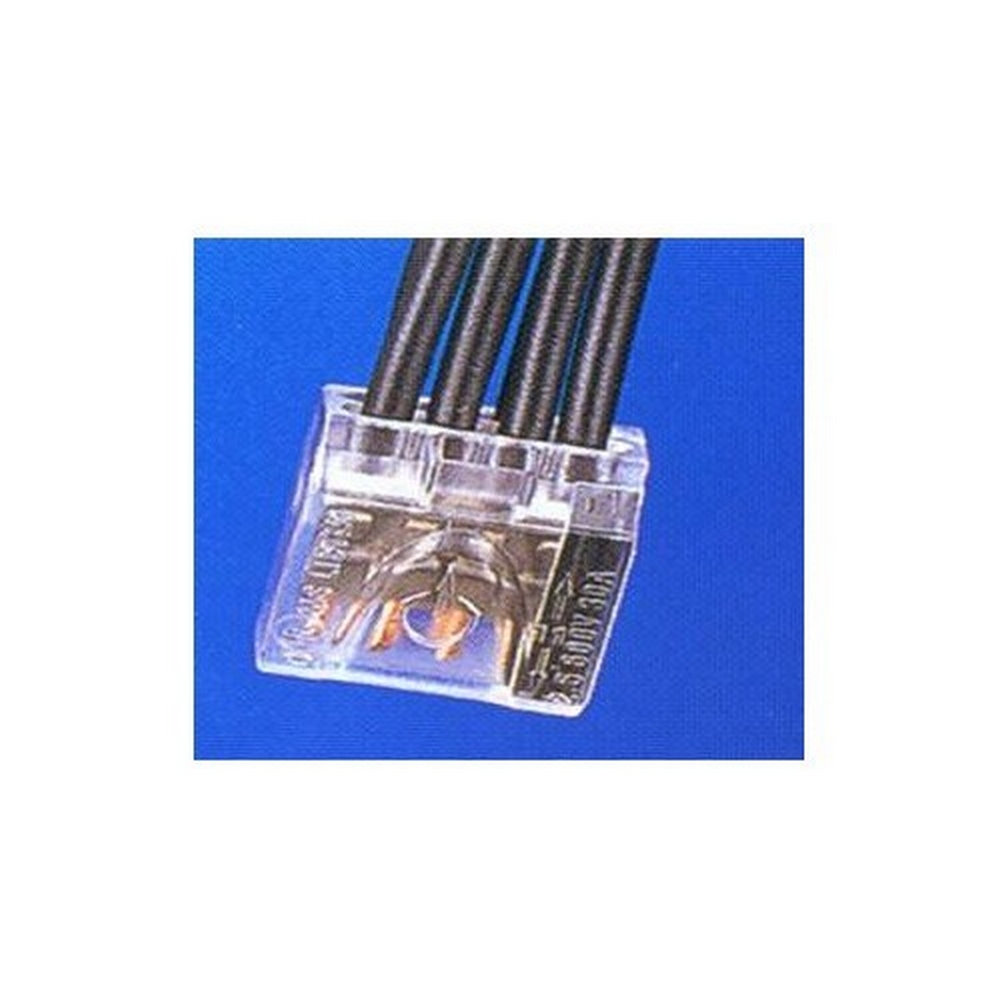

Morris 23018 Easy Push Wire Connectors Fast Alternative to Wire Nuts

Morris 23018 Easy Push Wire Connectors are a fast and effective alternative to traditional wire nuts. Designed for simplicity and efficiency, these connectors allow you to save time and money by simply pushing wires into the contact port, eliminating the need for twisting or taping. They accept both stranded and solid wire, accommodating a wire range of 12-22 AWG solid conductors. One standout feature is the low wire insertion force, ensuring quick and easy connections without the repetitive motion that can lead to fatigue. The clear housing provides visible confirmation of connections, while the check port allows for continuity testing. Made with electrolytic tin-plated internal copper bus, these connectors ensure high conductivity for reliable performance. Constructed from thermoplastic material that is UL 94V-2 flame retardant, the Morris 23018 is built to withstand working temperatures up to 230°F (110°C) and is cULus listed for safety. Each connector is reusable, allowing for easy modifications and reducing waste. Color-coded according to the number of poles, these connectors come conveniently packaged in a box of 50, making them a practical choice for professionals and DIY enthusiasts alike.

These Easy Push Wire Connectors are Fast and Effective Alternative to Wire Nuts.

• Easy Push-In Wire Connectors are simple to install - instead of Twisting or Taping, simply Push Wires Into Contact Port to save you time and money
• Housing Material: Thermoplastic, UL 94V-2 flame retardant
• No-Twist Connection reduces repetitive motion fatigue
• Voltage: UL-600V, VDE-450V
• Copper Wire Only
• Low Wire Insertion Force allows fast, easy connections
• Electrolytic Tin-Plated Internal Copper Bus for high conductivity
• Working Temperature: 230°F (110°C)
• Wire Range: 12-22 AWG Solid conductor
• Easy Push In Wire Connectors are Re-Useable, making changes easy and reducing waste of connectors
• Check Port for Continuity Testing
• Current: 24A (VDE)
• cULus Listed
• Color Coded according to # of poles
• Accepts Either Stranded or Solid Wire
• Clear Housing for Visible Connection Confirmation
