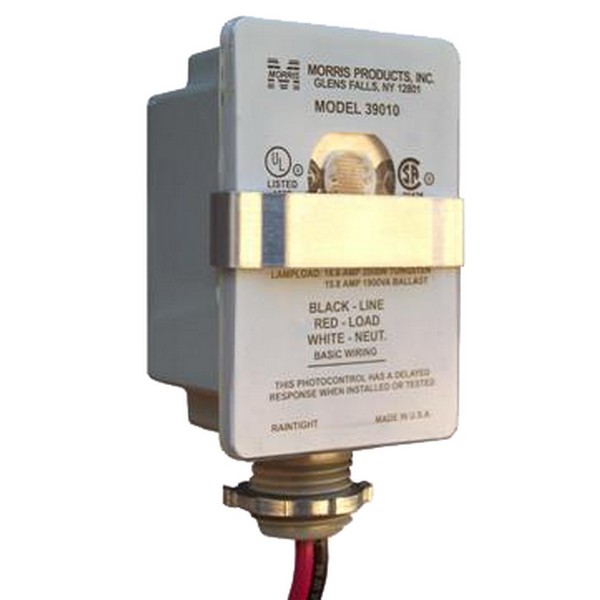

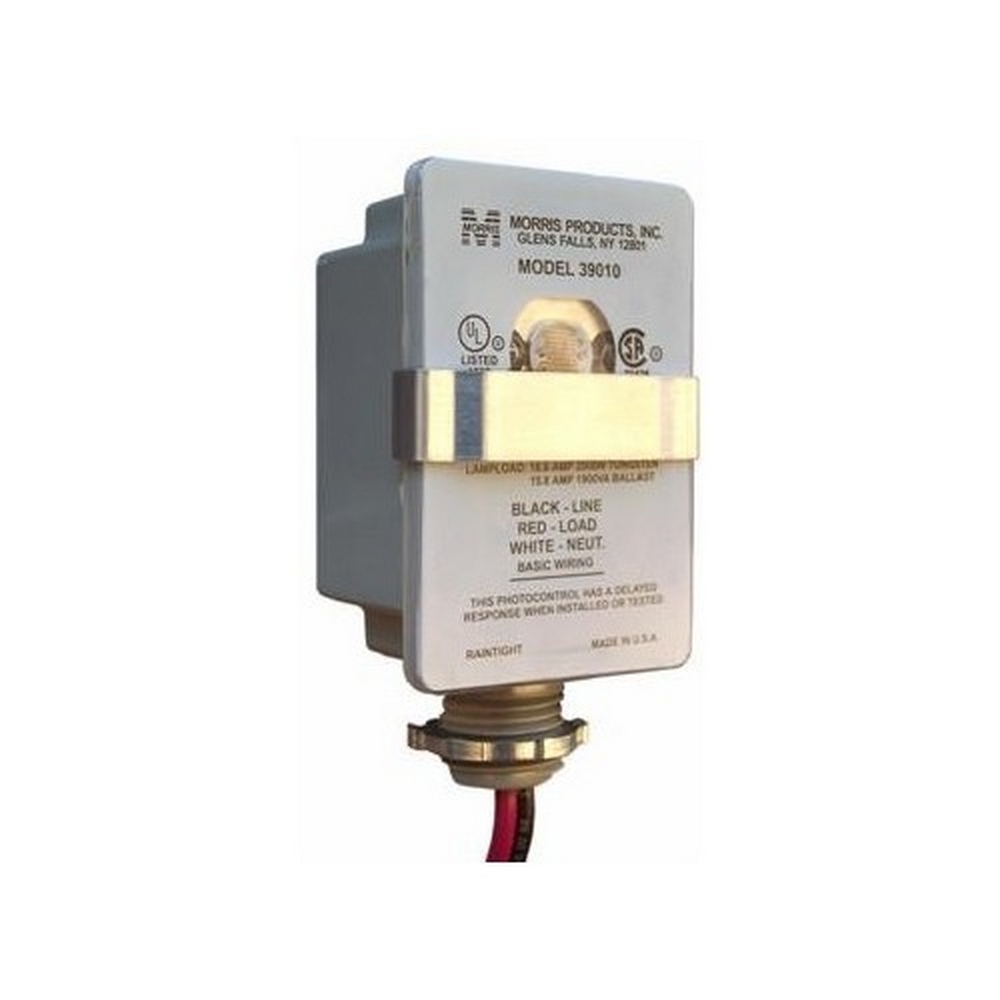

Morris 39010 Weatherproof Photocontrols with Useful Features

Morris 39010 Weatherproof Photocontrols are designed to enhance outdoor lighting efficiency while ensuring durability and reliability. This photocontrol features a heavy-duty thermal bi-metal switch that offers a 30-60 second time delay, effectively minimizing unwanted lamp cycling caused by external factors such as lightning and car headlights. The factory-set turn-on level can be easily adjusted in the field using the included slide shutter/bar, providing flexibility for various applications. Constructed with weatherproof polycarbonate housing, the Morris 39010 is built to withstand harsh environmental conditions. It operates as a single pole, single throw switch, with a normally closed contact position at night, ensuring that your lighting systems activate precisely when needed. With an impressive temperature range of -40°F to 158°F, this photocontrol is suitable for diverse climates. Power consumption is kept below 1.5 watts on average, making it an energy-efficient choice for your projects. It features standard 1/2" I.P.S. pipe threaded nipple, and comes complete with a gasket and locknut for easy installation. The 6" color-coded leads simplify wiring, and the included wiring diagram ensures straightforward setup. UL listed for safety, the Morris 39010 is a smart choice for residential, commercial, and industrial lighting solutions.

Our Weatherproof Photocontrols have many useful features.

• Power Consumption Below 1.5 Watts Average
• UL Listed
• 6" Color Coded Leads with Wiring Diagram on Control
• Typically mount on fixtures or boxes
• Standard 1/2" I.P.S. Pipe Threaded Nipple, Includes Gasket and Locknut
• Temperature Range: -40°F to 158°F
• Weatherproof Polycarbonate Housing
• Contact Position at Night is Normally Closed
• Single Pole, Single Throw Switch
• Photocontrol features a heavy-duty thermal bi-metal switch that provides a 30-60 second time delay. This virtually eliminates unwanted lamp cycling that could be caused by lightning, car headlights, etc
• Although the turn-on level is pre-set at the factory, each control is furnished with an adjustable slide shutter/bar that allows field adjustment
