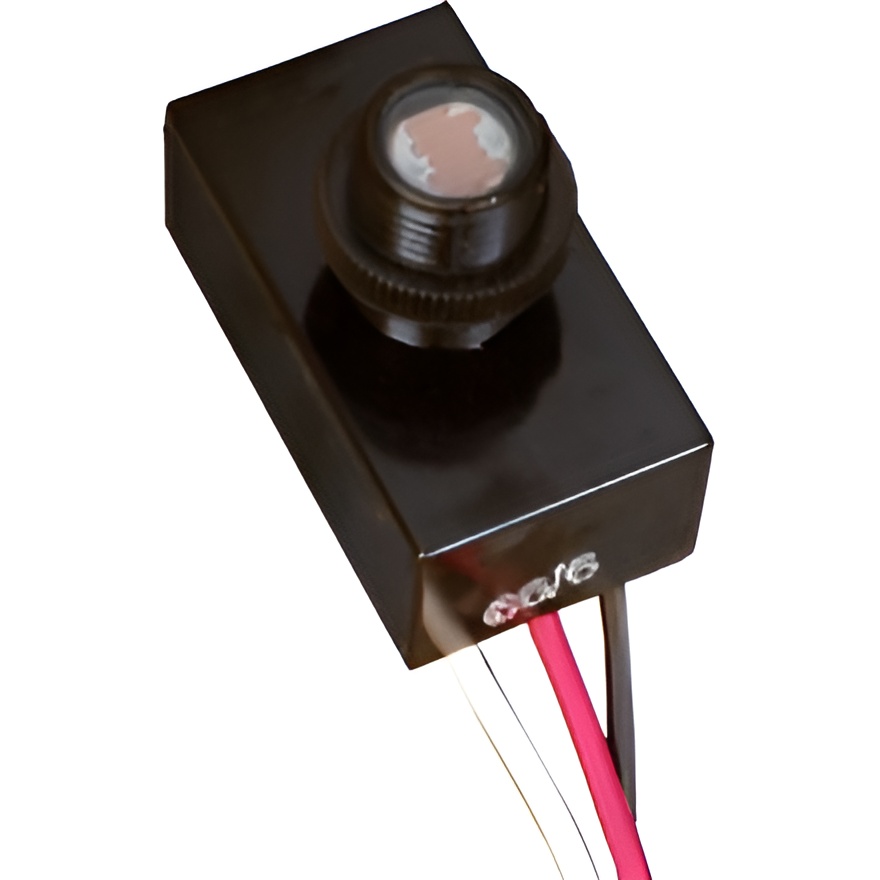

Morris 39032 Weatherproof Flush Mount Photocontrols are an exceptional solution for efficient fixture-mounted lighting control. Designed to withstand the elements, these photocontrols feature a robust weatherproof polycarbonate housing and lens, ensuring durability and reliability in various environments. With an SPST and normally open configuration, this unit includes a 1/2" CDS photocell that effectively manages light levels, switching on between 0.9 to 1.9 foot-candles and off at 2.8 to 5.6 foot-candles. The integrated thermal switch operates effectively within a temperature range of -40°F to 158°F, making it suitable for both extreme cold and heat. It boasts a minimal power consumption of less than 1.5 watts on average, promoting energy efficiency. A time delay of 30-60 seconds enhances functionality, preventing flickering from transient light changes. The product also incorporates a contact position that remains normally closed at night, ensuring consistent performance. With a life cycle of 6,500 cycles, it is designed for longevity. The 3/8"-18 thread nipple, rubber gasket, and plastic locknut facilitate easy installation, while the 6" leads exiting the rear of the housing allow for convenient placement in tight spaces. UL Listed for safety, the Morris 39032 is an outstanding choice for any lighting system.
Our Weatherproof Flush Mount Photocontrols are an excellent fixture mounted lighting control.
Ballast Rating: 2000VA
Cds Light Sensor Size: 1/2"
Color: Black
Contact Postion If Photocontrol Fails: Closed
Contact Postion Normally: Open
Country of Origin: China
Description: Photocontrols Flush Mount 208-277V
Fixture Type: Photocontrols Flush Mount
Material: Polycarbonate Housing & Lens
Photo Control Type: Button Type Flush Mount
Surge Protection: No
Switch Type: SPST
Temperature Rating: -40 to 158
Time Delay In Seconds: 30-60
Tungsten Rating: 2000W
Type: Photocontrols Flush Mount
Ul Listing: UL Listed
Upc: 601986390323
Voltage: 208-277V
Warning: Cancer and Reproductive Harm
Weatherproof: Yes
