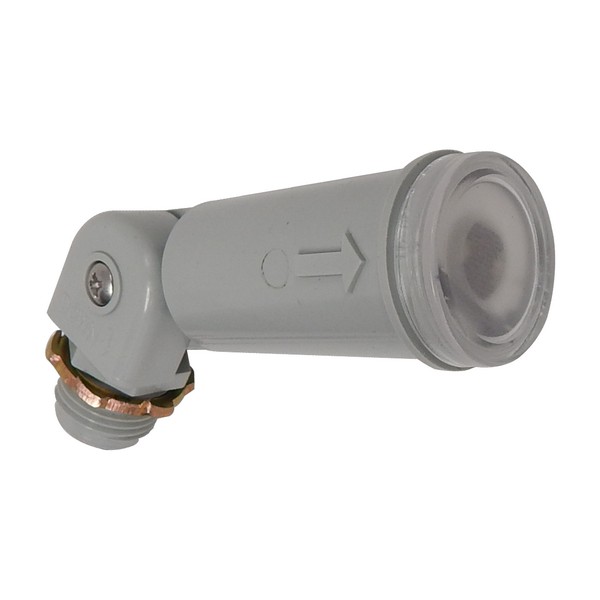

Morris 39060 Swivel Mount Photo Controls for Versatile Photography

Morris 39060 Swivel Mount Photo Control offers exceptional versatility for your lighting needs. Designed with a weatherproof polycarbonate housing and lens, this photo control is built to withstand the elements, ensuring reliable performance in any environment. The 1/2" CDS light sensor is equipped with a heat sink, providing optimal efficiency with a power consumption of just 1.5 watts max. This photo control features a thin cylindrical design, allowing it to fit seamlessly between twin floodlights or in other tight spaces. Its field-adjustable swivel base makes it easy to direct the photocell away from stray light, ensuring accurate light level detection. With light levels set to turn ON between 0.9 to 1.9 FC and OFF between 2.8 to 5.6 FC, you can rely on this control for effective lighting management. The Morris 39060 operates within a temperature range of -40°F to +158°F and can handle up to 1100 VA ballast rating and 1800W tungsten rating. With a life cycle of 6500 cycles and a standard 1/2" I.P.S. pipe thread nipple, installation is straightforward. Additionally, it comes UL Listed for safety. Keep your exterior lighting efficient and effective with this dependable photo control.

Our Swivel Mount Photo Controls give you versatility.

• 1/2" CDS Light Sensor with Heat Sink
• UL Listed
• Relative Humidity: 96%
• Field adjustable swivel base makes it easy to direct the photocell away from stray light
• Light Levels: ON: .9 to 1.9 FC OFF: 2.8 To 5.6 FC
• "O" ring sealed to prevent water from entering through the knuckle
• Life Cycle: 6500 Cycles
• Temperature Range: -40°F – +158°F
• Weatherproof Polycarbonate Housing & Lens
• Thermal Switch
• Contact Position at Night is Normally Open
• Power Consumption:1.5 Watts Max
• Standard 1/2" I.P.S. Pipe Thread Nipple
• Swivel Mount Photo Controls typically mounts on fixtures or boxes
• Single Pole, Single Throw Switch
• 6" Color Coded Leads with Wiring Diagram on Control
• Thin cylindrical shape Swivel Mount Photo Control fits neatly between twin floodlights or other tight applications
