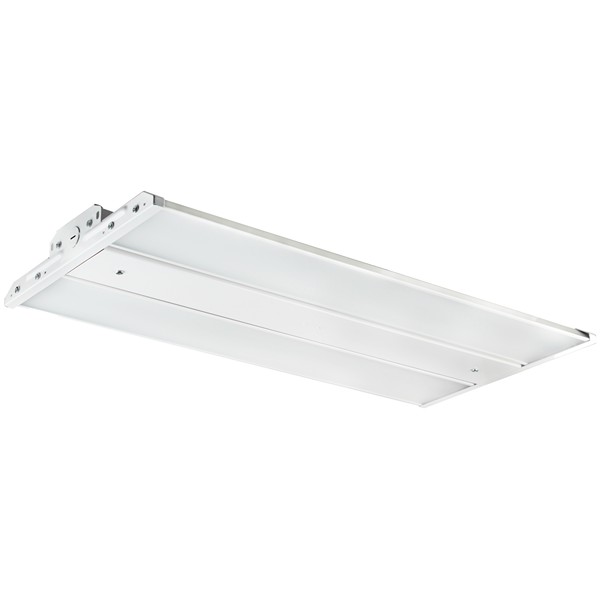

Morris 71705A Linear High Bay Gen 5 with Emergency Backup Motion Sensing

Morris 71705A Linear High Bay Gen 5 is designed to replace conventional fluorescent 4 and 6 lamp T8 and T5 high bay lighting with enhanced efficiency and functionality. This modern lighting solution is ideal for environments requiring emergency battery backup or motion sensing capabilities, with the motion sensor sold separately for added convenience. With a remarkable output of 7,157 lumens and a color temperature of 4000K, this high bay fixture delivers bright, consistent illumination. Its dimmable feature (1-10V) allows for customizable lighting levels, making it suitable for various applications. The high bay is constructed to last, boasting a life expectancy of over 50,000 hours and an operating temperature range of -40°F to 122°F, ensuring reliable performance in diverse conditions. Rated IP20 and cULus listed, the Morris 71705A adheres to high safety standards, providing peace of mind for users. It operates efficiently with a power factor greater than 0.90 and comes with a 5-year warranty, reflecting Morris Products' commitment to quality and durability. Perfect for warehouses, gymnasiums, and industrial settings, this fixture combines practicality with advanced features, making it a smart choice for your lighting needs.

Use Linear High Bay Gen 5 for replacement of conventional Fluorescent 4 & 6 lamp T8 & T5 High Bay Lighting where Emergency Battery Backup or Motion Sensing is required.

• Power Factor: >.90
• Motion Sensor Capable (Sold Separately)
• Beam Angle: 90°
• Dimmable: 1-10V
• CRI: >80
• 5 Year Warranty
• cULus listed
• Operating Temperature: -40°F to 122°F
• 50,000+ Hour Life Expectancy
• IP20 Rated

Resources

• Catalog PDF page
• Instruction Sheet
• Spec Data Sheets
• Spec Sheet
