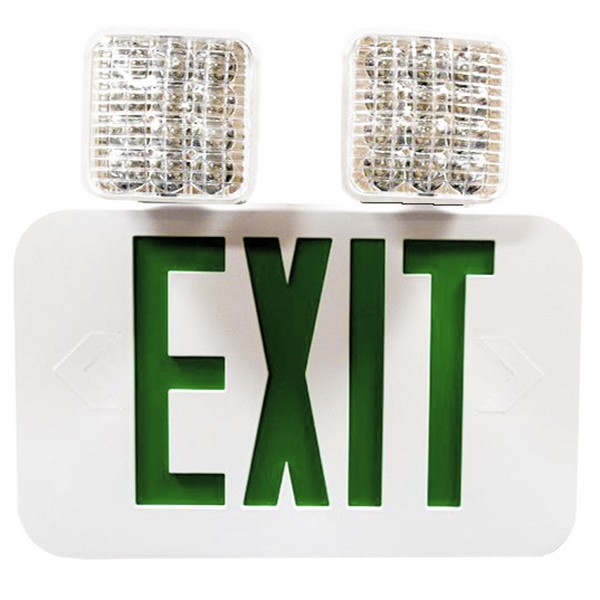

Morris 73472 LED Exit Sign Emergency Light Unit with Rotatable Lamp Heads

Morris 73472 Combination LED Energy Saving Exit Sign and LED Emergency Lighting Unit offers a reliable solution for both safety and energy efficiency. Designed with long-life LED lamps, this unit features rotatable lamp heads that can pivot 180°+ for maximum field flexibility, ensuring optimal illumination in any environment. The fully self-contained unit operates automatically and includes a convenient push-to-test switch for quick functionality checks. With an energy consumption of less than 4 watts for red letters and less than 2 watts for green, this exit sign is both economical and eco-friendly. The durable, injection-molded thermoplastic housing is flame retardant and high impact resistant, making it suitable for various applications. Installation is straightforward, thanks to integral wiring channels and a universal mounting canopy that accommodates both top and back J-box setups. This unit also features a 3.6-volt sealed Ni-Cad rechargeable maintenance-free battery, ensuring reliable performance during power outages. Additional features include a charge rate/power-on LED indicator light, self-diagnostic capability, and field-replaceable chevron directional indicators. Rated for damp locations and UL 924 listed, the Morris 73472 is an essential addition to any safety-conscious building. Backed by a 3-year warranty, it delivers peace of mind and dependable operation.

Combination LED Energy Saving Exit Sign and LED Emergency Lighting Unit with Rotatable Lamp Heads In One Compact Design.

• Self Diagnostic Capability
• Completely Self-Contained
• Damp Location Rated
• Environmentally-Coated, Solid State Charger
• 120 or 277 VAC Operation
• 3 Year Warranty
• Automatic Low Voltage Disconnect (LVD)
• Integral wiring channels to facilitate installation
• Universal Mounting Canopy for Top or Back J-box Installation & 2 Snap-fit Face Plates
• Field replaceable chevron directional indicators
• Fully Automatic Operation
• 3.6-Volt Sealed Ni-Cad Rechargeable Maintenance-Free Battery
• Charge Rate/Power On LED Indicator Light
• UL 924 Listed
• Energy Consumption of Less than 4 Watts for Red letters and Less than 2 Watts for Green Letters
• Heads Rotate 180°+ for Maximum Field Flexibility
• Long Life Energy Saving LED Lamps
• Input Current: .22A 120V .10A 277V
• Rotatable Lamp Heads
• Push to Test Switch
• Input Wattage: 1.8W Standard; 2.5W Remote Capable
• Injection-Molded, UL 94 V-O Flame Retardant, High Impact, Thermoplastic Housing
• Fully Adjustable Glare-Free LED Lamps
