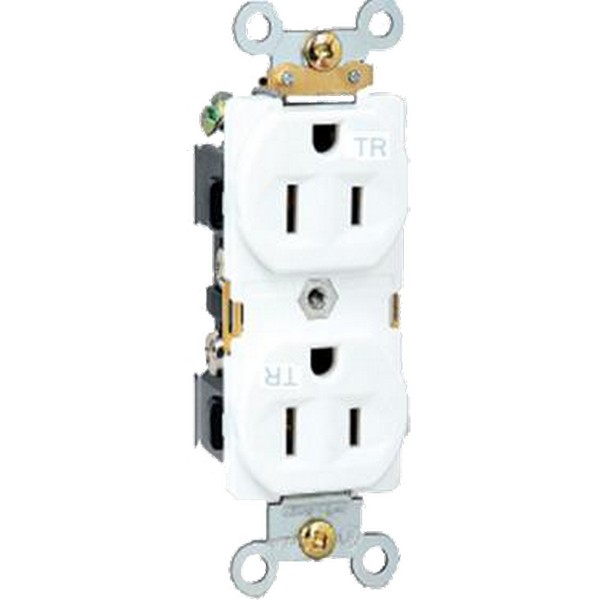

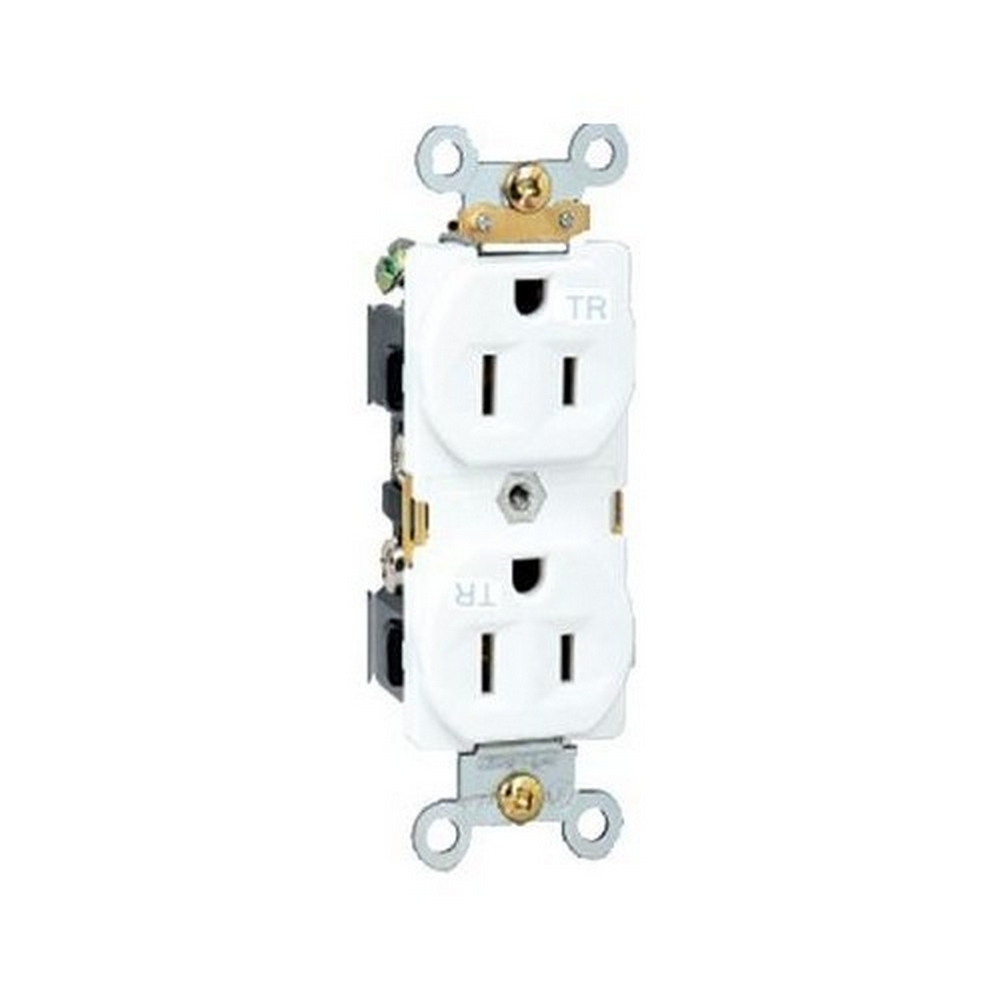

Morris 81951 Tamper Resistant Duplex Receptacle

Morris 81951 Duplex Receptacle is designed with safety and efficiency in mind, making it an ideal choice for both residential and commercial applications. This tamper-resistant receptacle features a built-in protective shutter mechanism, preventing the insertion of foreign objects and enhancing safety for children and pets. Its clear "TR" marking on the face provides immediate recognition of its tamper-resistant design. Engineered for versatility, the Morris 81951 accommodates #12 or #14 stranded or solid copper wire, with a push-in option available exclusively for #14 solid wire. The shallow design allows for maximum wiring room, ensuring ease of installation. It is back and side wired, featuring easy-access green hex-head ground screws and large tri-combination head captive screws that facilitate quick wiring. Constructed from durable GE Lexan with a steel mounting strap, this receptacle boasts a UL 94V-2 flame rating, ensuring reliability under various conditions. The washer-type break-off plaster ears guarantee the best flush alignment. Rated for 15 amps and a voltage of 125, it operates efficiently within a temperature range of -40°F to 167°F. The Morris 81951 Duplex Receptacle is UL listed, offering peace of mind and assurance of quality.

This Duplex Receptacle is Tamper Resistant.

• 2 pole, 3 wire
• Clear Visible "TR" marking on Face
• Large Tri-Combination Head Captive Screws for quick wiring
• UL listed
• Easy-access Green Hex-Head Ground Screw
• Shallow design for maximum wiring room
• Washer Type Break Off Plaster Ears for best flush alignment
• Temperature Rating: -40°F to 167°F
• UL 94V-2 Flame Rating
• Built-in Protective Shutter Mechanism Designed to Prevent Insertion of Foreign Objects
• Made of GE Lexan, Steel Mounting Strap
• Back & Side Wired
• Accepts #12 or #14 Stranded or Solid Copper Wire (Push-In #14 Solid Only)
