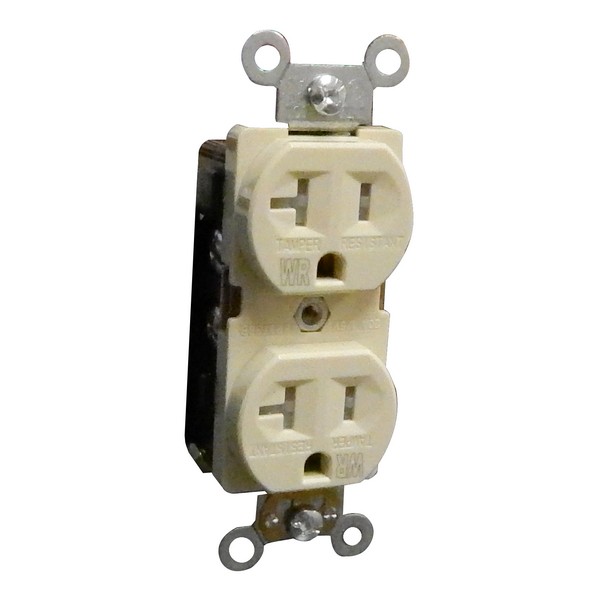

Morris 82505 Tamper-Resistant Weather-Resistant Duplex Receptacle

Morris 82505 Duplex Receptacle is designed with tamper and weather resistance in mind, making it an ideal choice for both residential and commercial applications. This receptacle features a clear "WR" marking on the face for easy identification, ensuring compliance with the 2011 NEC Article 406.9 for installations in wet and damp locations. The built-in protective shutter mechanism prevents the insertion of foreign objects, enhancing safety. Constructed from durable GE Lexan and equipped with a steel mounting strap, the Morris 82505 offers a shallow design that maximizes wiring room. It accommodates #12 or #14 stranded or solid copper wire, with a push-in option available for #14 solid wire only. The easy-access green hex-head ground screw and large tri-combination head captive screws facilitate quick and efficient wiring. With a temperature rating from -40°F to 167°F and a UL 94V-2 flame rating, this receptacle is built to withstand harsh conditions. It is UL listed for assurance of quality and safety. When properly installed with an approved weather protective cover, the Morris 82505 provides reliable protection from rain, snow, ice, moisture, and humidity. Upgrade your electrical installations with this dependable and robust weather-resistant receptacle.

This Duplex Receptacle is Tamper & Weather Resistant.

• 2 pole, 3 wire
• Large Tri-Combination Head Captive Screws for quick wiring
• UL listed
• Clear Visible "WR" marking on Face
• Easy-access Green Hex-Head Ground Screw
• Shallow design for maximum wiring room
• Complies with 2011 NEC Article 406.9 that states that all receptacles installed in wet & damp locations must be weather resistant. "WR" designations provide visual identification. Weather Resistant Receptacles offer protection from rain, snow, ice, moisture, & humidity when properly installed in an approved weather protective or while-in-use cover
• Washer Type Break Off Plaster Ears for best flush alignment
• Temperature Rating: -40°F to 167°F
• UL 94V-2 Flame Rating
• Built-in Protective Shutter Mechanism Designed to Prevent Insertion of Foreign Objects
• Made of GE Lexan, Steel Mounting Strap
• Back & Side Wired
• Accepts #12 or #14 Stranded or Solid Copper Wire (Push-In #14 Solid Only)
