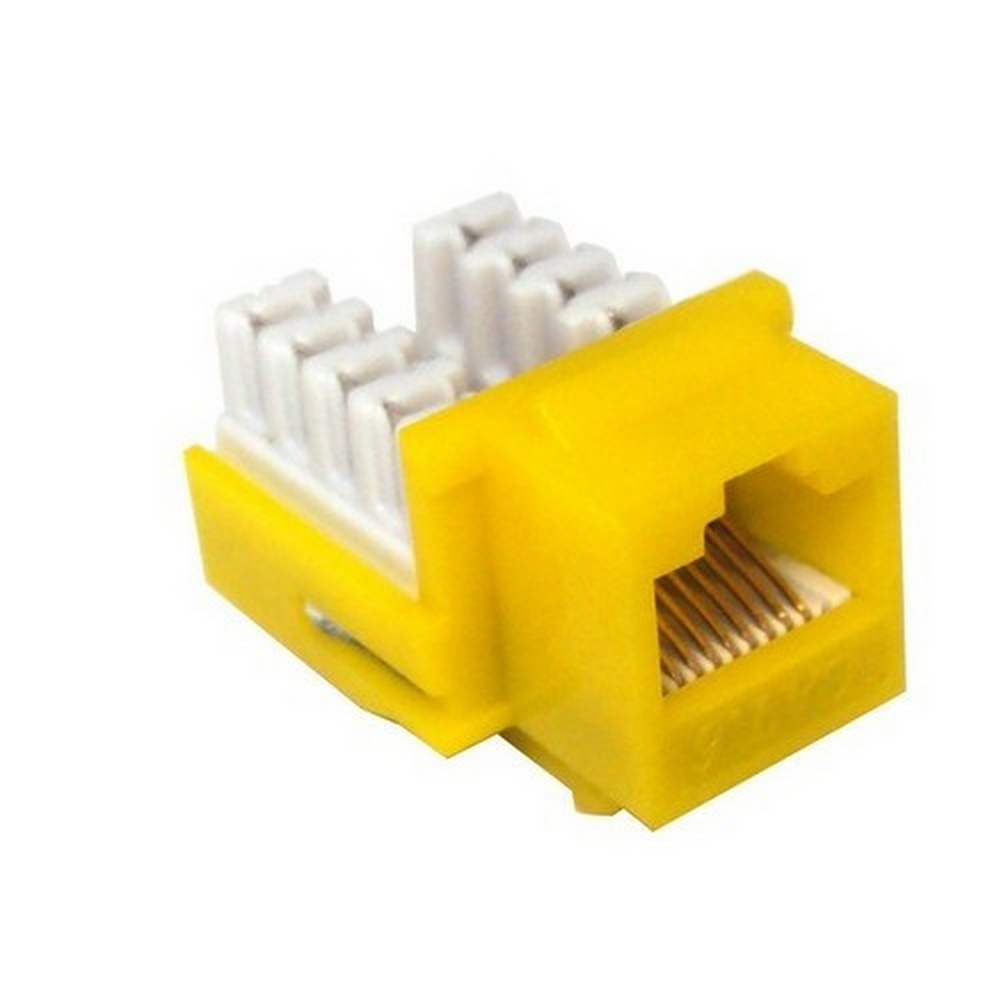

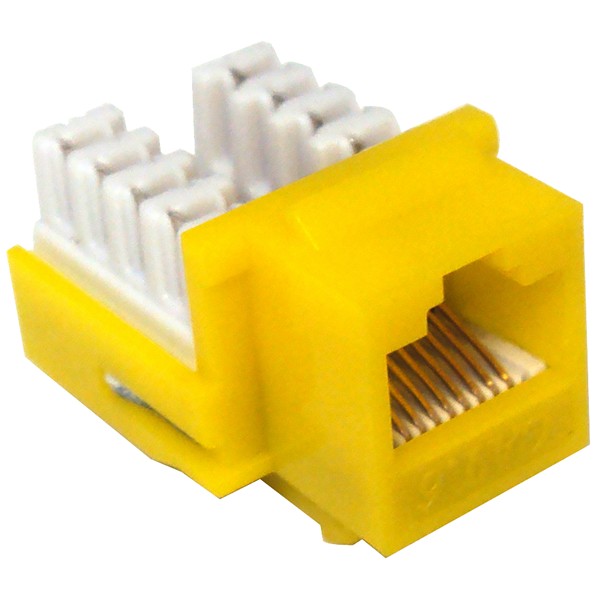

Morris 88424 Cat6 Keystone Jack is designed for high-speed datacommunications applications, ensuring a reliable network connection. This color-coded keystone jack excels with a bandwidth of 250 MHz and supports data transmission rates up to 10,000 Mbps (10 Gbps), making it an excellent choice for demanding environments. The Morris 88424 complies with industry standards such as TIA/EIA-568-C-2 and ISO 1801 2nd Edition Class E, ensuring top-notch performance. Its superior design features better insertion loss, return loss, and NEXT & FEXT characteristics, resulting in enhanced signal integrity and reduced data loss. The keystone jack accommodates 8 conductor 22-26 AWG solid and stranded wires, and it conforms to TIA/EIA 568A & 568B wiring color codes for easy installation. Termination is straightforward with the 110 punch down and Krone type methods, though a punch down tool is required for proper setup. Built with durability in mind, the contacts are gold-plated with 50u for optimal conductivity, and it meets a flammability rating of UL94V-0. The Morris 88424 is UL Listed, ensuring it meets rigorous safety standards. Ideal for professionals looking to enhance their network infrastructure, this keystone jack is an essential component for any installation.
A color-coded Cat6 Keystone Jack for Datacommunications applications.
Bandwidth: 10 Gbps 250MHz
Category: 6
Color: Yellow
Country of Origin: China
Datacommunications Component Type: RJ45 Unshielded Keystone Jack
Description: Cat6 (RJ45) Unshielded Keystone Jacks Yellow
Jack Connector Type: RJ45 UTP
Material: Polycarbonate Housing, Gold Plated Contacts
Mfg Standard: UL94V-0, Complies with TIA/EIA-568-A-5, ISO 1801 2nd Edition Class D, NEC Article 800
Termination Method: 110 Punchdown
Type: Cat 6 110 Type (RJ45) Unshielded Keystone Jacks 550 Mhz
Ul Listing: UL Listed
Upc: 601986884242
Warning: Cancer and Reproductive Harm
