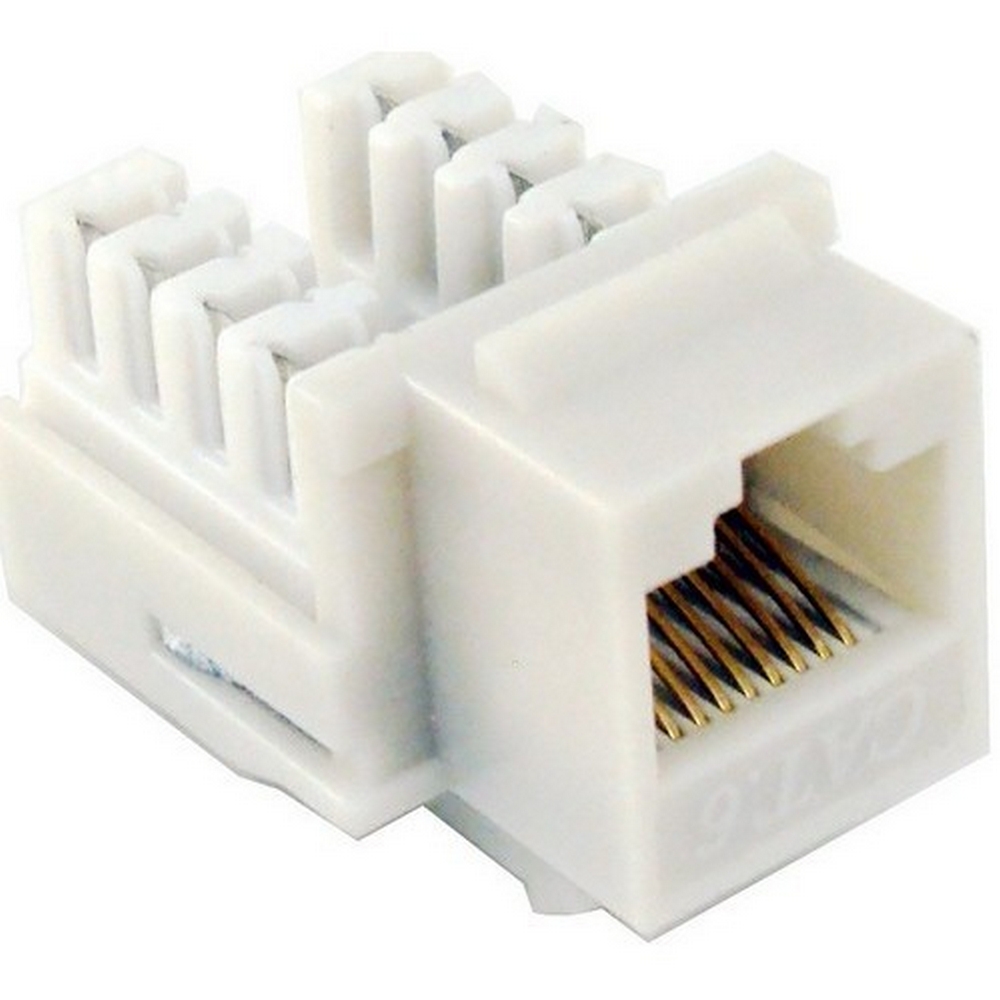

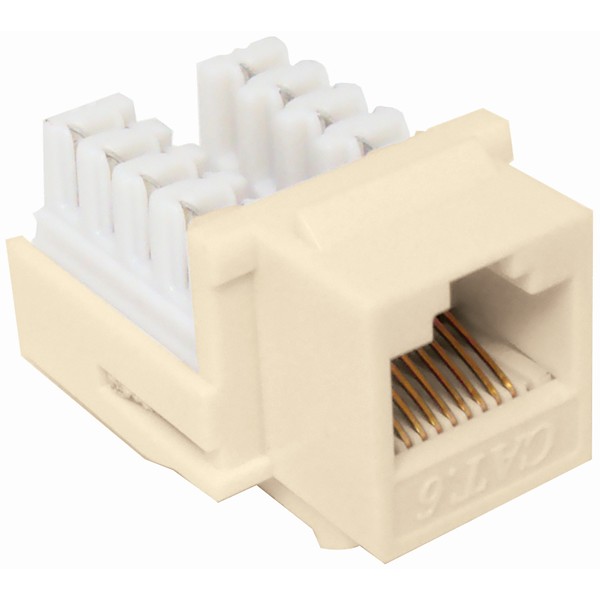

Morris 88428 is a color-coded Cat6 Keystone Jack designed for high-speed datacommunications applications. This advanced keystone jack is engineered to enhance network performance, boasting superior insertion loss, return loss, and NEXT & FEXT characteristics. These features result in higher signal-to-loss ratios, ensuring a more reliable network for your residential, commercial, or industrial needs. With a bandwidth of 250 MHz and a data transmission rate of up to 10,000 Mbps (10 Gbps), the Morris 88428 is perfectly suited for demanding networking environments. It complies with industry standards including TIA/EIA-568-C-2 and ISO 1801 2nd Edition Class E, as well as NEC Article 800, ensuring that it meets rigorous performance criteria. Installation is straightforward with 110 punch down and Krone type termination options, accommodating 8 conductor 22-26 AWG solid and stranded wire. The jack conforms to TIA/EIA 568A and 568B wiring color codes, simplifying the installation process. Notably, the contacts feature a 50µ gold plating for durability and performance. The Morris 88428 also has a UL94V-0 flammability rating and is UL Listed, making it a safe choice for a variety of applications. Available in a light almond color, this keystone jack ships via UPS for your convenience.
A color-coded Cat6 Keystone Jack for Datacommunications applications.
Bandwidth: 10 Gbps 250MHz
Category: 6
Color: Lt. Almond
Country of Origin: China
Datacommunications Component Type: RJ45 Unshielded Keystone Jack
Description: Cat6 (RJ45) Unshielded Keystone Jacks Lt Almond
Jack Connector Type: RJ45 UTP
Material: Polycarbonate Housing, Gold Plated Contacts
Mfg Standard: UL94V-0, Complies with TIA/EIA-568-A-5, ISO 1801 2nd Edition Class D, NEC Article 800
Termination Method: 110 Punchdown
Type: Cat 6 110 Type (RJ45) Unshielded Keystone Jacks 550 Mhz
Ul Listing: UL Listed
Upc: 601986884280
Warning: Cancer and Reproductive Harm
