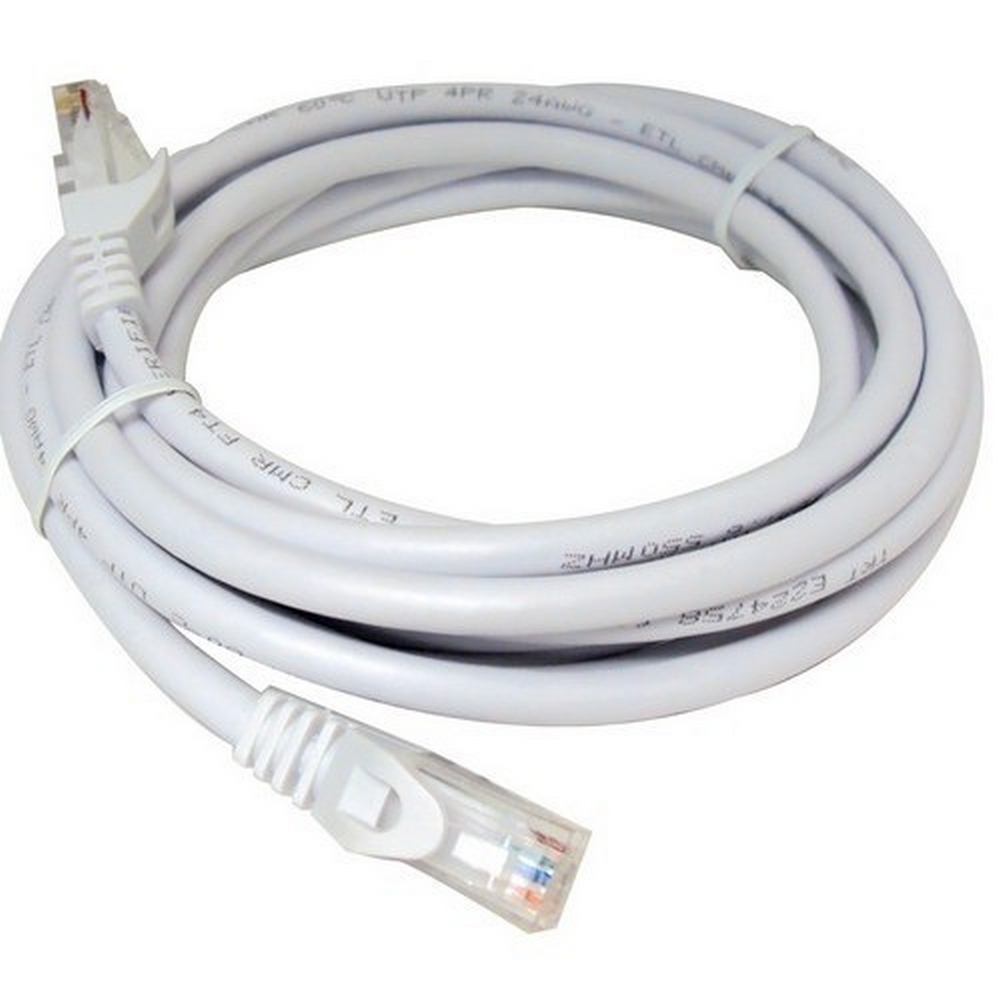

Morris 88460 Cat6 UTP Patchcords for High-Speed Data Networks

Morris 88460 Cat6 UTP Patchcords for High Speed Data Networks deliver exceptional performance for your networking needs. Designed to provide superior insertion loss, return loss, and NEXT & FEXT characteristics, these patch cords ensure a reliable and efficient network with a high signal-to-loss ratio. Compliant with TIA/EIA-568-C-2, ISO 1801 2nd Edition Class E, and NEC Article 800, these cables meet the highest industry standards. Constructed with stranded 24 AWG 4 pair wire, the Morris 88460 features two RJ45 50u gold-plated 8P8C plugs, ensuring optimal connectivity. With a frequency capacity of 250 MHz and a data transmission rate of up to 10 Gbps, these patch cords are perfect for high-speed data networks. The 14-foot length provides flexibility in setups, while the PVC jacket offers durability and protection. Additionally, the strain relief boot and anti-snag protector enhance usability and longevity. These Cat6 UTP patch cords are 100% tested to meet TIA/EIA-568A Cat6 standards and are UL Listed for safety assurance. Available in a clean white color, the Morris 88460 Cat6 UTP Patchcords are ideal for both residential and commercial applications, ensuring you stay connected with confidence.

Cat6 UTP Patchcords for High Speed Data Networks.

• UL Listed
• Strain Relief Boot and Anti-Snag Protector
• PVC Jacket
• Cat6 patch cords provide better insertion loss, return loss & NEXT & FEXT characteristics, resulting in higher signal to loss ratios and a more reliable network
• Color: White
• Complies with TIA/EIA-568-C-2, ISO 1801 2nd Edition Class E, NEC Article 800
• Stranded 24 AWG 4 Pair Wire
• Frequency: 250 Mhz
• 2 RJ45 50u Gold Plated 8P8C Plugs
• Cat6 UTP Patchcords are 100% Tested To meet TIA/EIA-568A Cat6 standards
• Data Transmission Rate: 10 Gbps

Resources

• Catalog PDF page
• Spec Sheet
