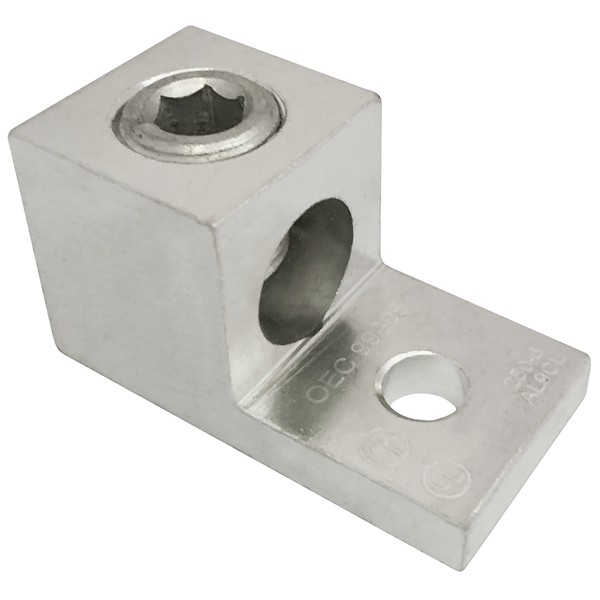

Morris 90720B Dual-Rated and Reusable One Hole Aluminum Conductor Lug offers versatility and reliability for electrical connections. Constructed from high-quality aluminum, this lug is designed to accommodate both copper and aluminum conductors, making it a dual-rated solution for various applications. The electro-tin plating enhances its corrosion resistance, ensuring longevity and durability in challenging environments. With a rating of 600V and a temperature tolerance of up to 194°F (90°C), the Morris 90720B is suitable for a wide range of residential, commercial, and industrial installations. It is cULus listed, providing assurance of compliance with rigorous safety standards. The lug supports a wire range from 250MCM to 6SOL, making it adaptable for different conductor sizes. Measuring 2.00" in length, 0.94" in width, and 1.12" in height, it features a 0.3125" bolt for secure fastening. This product ships via UPS, ensuring convenient delivery to your job site. Please be aware of the warning regarding cancer and reproductive harm associated with this product. For building professionals and knowledgeable homeowners seeking a dependable connection solution, the Morris 90720B is an excellent choice, combining quality construction with versatile applications.
Dual-Rated and Reusable One Hole Aluminum Conductor Lug
AWG: 250
Al9cu Dual Rating: AL9CU Dual Rated
Bolt: 0.3125"
Connector Style: Lug
Connector Type: Mechanical
Country of Origin: India
Description: Aluminum Mechanical Lugs One Conductor - One Hole Mount 250MCM-#6 Awg Bulk Box
Finish: Electro-Tin Plated
Height: 1.12"
Length: 2.00"
Material: Aluminum
Maximum Voltage: 600
Mfg Standard: UL 486B
Number Of Conductors: 1
Number of Holes: 1
Temperature Rating: 194oF 90oC
Type: Aluminum Mechanical Lugs One Conductor - One Hole Mount
Ul Listing: UL & CSA
Upc: 601986004459
Warning: Cancer and Reproductive Harm
Width: 0.94"
Wire Range: 250MCM - 6SOL.
Wire Size: 250MCM - 6SOL.
