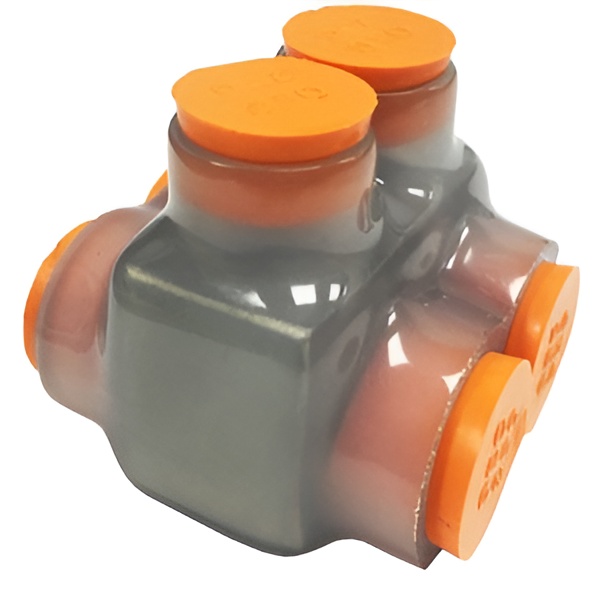

Morris 97312 Clear Multi Conductor Insulated Connector provides reliable performance with the added benefit of visual confirmation. The clear insulation allows users to easily verify that the conductors are properly inserted, ensuring a secure connection every time. Constructed from durable 6061-T6 aluminum, this dual-rated connector accommodates both copper and aluminum wire, making it versatile for various applications. Designed for ease of use, the single-piece clear molded insulation features a rugged high-dielectric plastisol dipped coating that is resistant to chemicals and abrasion. Pre-filled with an oxide inhibitor, the connector promotes longevity and reliability in electrical systems. The easy re-entry design facilitates changes, inspections, or troubleshooting, while removable plugs marked with wire sizes enhance accessibility during installation. With a temperature range of –49°F to 194°F (–45°C to 90°C), this connector is rated for indoor use only and supports cables rated up to 600 volts and 194°F (90°C). Its innovative design eliminates the need for time-consuming manual taping, significantly reducing installation time. ANSI C119.4 and cULus 486b listed, the Morris 97312 supports wire sizes ranging from 4 to 14 AWG, making it an essential component for building professionals and knowledgeable homeowners alike.
With our Clear Multi Conductor Insulated Connector, you'll see your termination is right every time
Al9cu Dual Rating: AL9CU Dual Rated
Color: Clear
Connector Type: Dual Entry
Country of Origin: India
Description: Clear Insulated Multi-Cable Connector - Dual Entry 2 Ports 4 - 14
Height: 1.38"
Insulation Type: Rubber
Length: 1.13"
Material: 6061-T6 Aluminum
Maximum Voltage: 600
Mfg Standard: UL 486B
No. of Ports: 2
Number of Positions: 2
Temperature Rating: -49oF to 194oF (-45o to 90oC)
Type: Clear Multi-Cable Connector - Dual Entry
Ul Listing: cULus
Upc: 601986973120
Warning: Cancer and Reproductive Harm
Width: 1.25"
Wire Range: 4-14
Wire Size: 4-14
