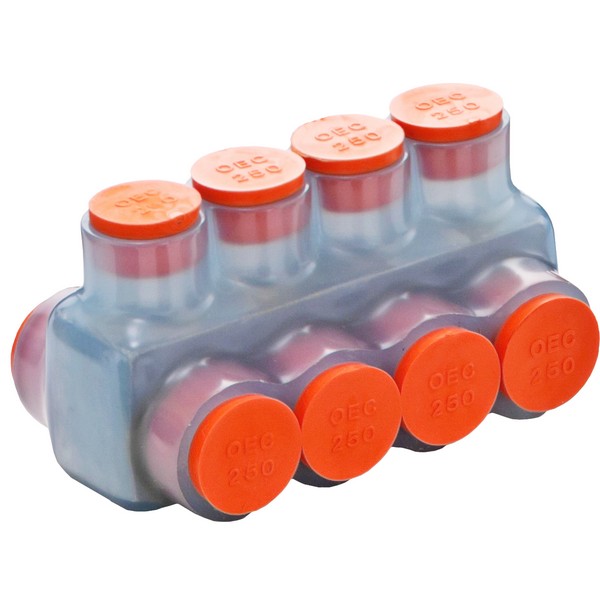

Morris 97316 Clear Multi Conductor Insulated Connector for Accurate Termination

Morris 97316 Clear Multi Conductor Insulated Connector offers a reliable solution for ensuring proper terminations every time. Designed with clear insulation, this connector allows for visual confirmation that conductors are correctly inserted, enhancing your installation confidence. Crafted from durable 6061-T6 aluminum, the dual-rated CU9AL connector accommodates both copper and aluminum wire, making it a versatile choice for various applications. The single-piece, clear molded insulation features a rugged, high-dielectric plastisol dipped coating that is resistant to chemicals and abrasion, ensuring long-lasting performance. Pre-filled with an oxide inhibitor, this connector simplifies maintenance, while its easy re-entry design facilitates changes, inspections, or troubleshooting as needed. With removable plugs labeled by wire size, installation is straightforward, and the wire entry from either side streamlines the process. The insulated aluminum construction eliminates the need for time-consuming manual taping, thereby reducing overall installation time. Rated for a temperature range of –49°F to 194°F and capable of handling 600 volts, the Morris 97316 is ideal for indoor use. Compliant with ANSI C119.4 and cULus 486b standards, it promises reliability and safety in your electrical projects.

With our Clear Multi Conductor Insulated Connector, you'll see your termination is right every time

• Wire Entry from Either Side of Clear Insulated Connector
• Clear Insulation allows Visual Confirmation that conductor is properly inserted
• Indoor Use Only
• Easy Re-Entry for Changes, Inspection or Troubleshooting
• PVC insulation reduces the likelihood & cost of power outages caused by improper or inconsistent insulated connections done manually in the field
• Rated for use with 194°F(90°C) Cables
• Insulated Aluminum Connector eliminates the need for time consuming manual taping, reducing installation time
• One Wire Per Terminal
• Removable Plugs marked with wire size provide easy access for installation.
• Single Piece Clear Molded Insulation with Rugged High-Dielectric Plastisol Dipped Coating is chemical and abrasion resistant
• Multi-Port 6061-T6 Aluminum Connector - CU9AL Dual Rated for use with Copper and/or Aluminum wire
• Pre-filled with Oxide Inhibitor
• 600 Volt
• Dimension Measurements = Inches
• Temperature range of –49°F to 194°F (–45° to 90°C)
• ANSI C119.4 & cULus 486b Listed
