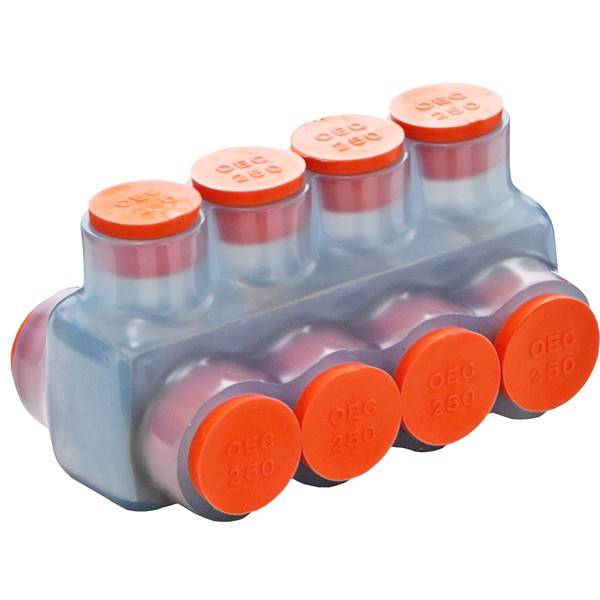

Morris 97356 Clear Multi Conductor Insulated Connector for Accurate Termination

Morris 97356 Clear Multi Conductor Insulated Connector provides reliable visual confirmation that your electrical terminations are executed correctly each time. Designed with clear insulation, this connector allows for easy verification that conductors are properly inserted, enhancing both safety and efficiency in your installations. Constructed from high-quality 6061-T6 aluminum, this multi-port connector is dual-rated for use with both copper and aluminum wire, accommodating a wide range of applications. The single-piece, clear molded insulation features a rugged high-dielectric plastisol dipped coating that is resistant to chemicals and abrasion, ensuring durability in demanding environments. Pre-filled with an oxide inhibitor and designed for easy re-entry, the Morris 97356 simplifies changes, inspections, and troubleshooting, making it an ideal choice for both professionals and knowledgeable homeowners. The removable plugs are clearly marked with wire sizes, facilitating quick access for installation tasks. With a temperature range of –49°F to 194°F and rated for 600 volts, this connector is suitable for indoor use and works effectively with cables rated for 194°F (90°C). Minimize the risk of costly power outages caused by improper connections with this insulated aluminum connector, which eliminates the need for time-consuming manual taping. Featuring four ports, the Morris 97356 is a dependable addition to your electrical supply toolkit.

With our Clear Multi Conductor Insulated Connector, you'll see your termination is right every time

• Wire Entry from Either Side of Clear Insulated Connector
• Clear Insulation allows Visual Confirmation that conductor is properly inserted
• Indoor Use Only
• Easy Re-Entry for Changes, Inspection or Troubleshooting
• PVC insulation reduces the likelihood & cost of power outages caused by improper or inconsistent insulated connections done manually in the field
• Rated for use with 194°F(90°C) Cables
• Insulated Aluminum Connector eliminates the need for time consuming manual taping, reducing installation time
• One Wire Per Terminal
• Removable Plugs marked with wire size provide easy access for installation.
• Single Piece Clear Molded Insulation with Rugged High-Dielectric Plastisol Dipped Coating is chemical and abrasion resistant
• Multi-Port 6061-T6 Aluminum Connector - CU9AL Dual Rated for use with Copper and/or Aluminum wire
• Pre-filled with Oxide Inhibitor
• 600 Volt
• Dimension Measurements = Inches
• Temperature range of –49°F to 194°F (–45° to 90°C)
• ANSI C119.4 & cULus 486b Listed
