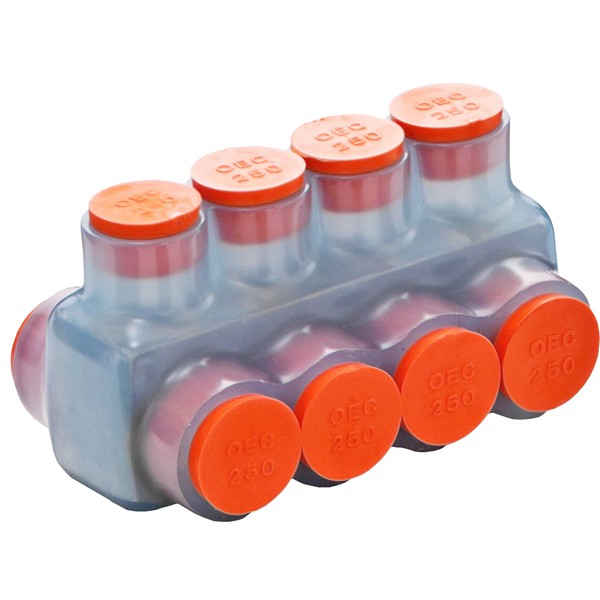

Morris 97374 Clear Multi Conductor Insulated Connector for Accurate Termination

Morris 97374 Clear Multi Conductor Insulated Connector offers an innovative solution for secure and efficient wire terminations. The clear insulation allows for visual confirmation, ensuring that conductors are properly inserted each time. Designed with a robust multi-port 6061-T6 aluminum construction, this dual-rated connector accommodates both copper and aluminum wires, streamlining your installation processes. The single-piece clear molded insulation features a rugged high-dielectric plastisol dipped coating that is resistant to chemicals and abrasion, providing longevity and reliability. Pre-filled with an oxide inhibitor, the Morris 97374 enhances connectivity and minimizes oxidation issues. The easy re-entry feature allows for quick changes, inspections, or troubleshooting, making it ideal for various applications. This connector also includes removable plugs marked with wire sizes for effortless installation. With the capability to handle temperatures ranging from –49°F to 194°F and rated for use with 194°F (90°C) cables, it is designed for indoor use only. The Morris 97374 accommodates a wire range of 3/0 - 14 and features four ports, ensuring versatility in your projects. With ANSI C119.4 and cULus 486b listings, this insulated aluminum connector not only simplifies installation by eliminating the need for manual taping but also significantly reduces the risk of power outages caused by improper connections.

With our Clear Multi Conductor Insulated Connector, you'll see your termination is right every time

• Wire Entry from Either Side of Clear Insulated Connector
• Clear Insulation allows Visual Confirmation that conductor is properly inserted
• Indoor Use Only
• Easy Re-Entry for Changes, Inspection or Troubleshooting
• PVC insulation reduces the likelihood & cost of power outages caused by improper or inconsistent insulated connections done manually in the field
• Rated for use with 194°F(90°C) Cables
• Insulated Aluminum Connector eliminates the need for time consuming manual taping, reducing installation time
• One Wire Per Terminal
• Removable Plugs marked with wire size provide easy access for installation.
• Single Piece Clear Molded Insulation with Rugged High-Dielectric Plastisol Dipped Coating is chemical and abrasion resistant
• Multi-Port 6061-T6 Aluminum Connector - CU9AL Dual Rated for use with Copper and/or Aluminum wire
• Pre-filled with Oxide Inhibitor
• 600 Volt
• Dimension Measurements = Inches
• Temperature range of –49°F to 194°F (–45° to 90°C)
• ANSI C119.4 & cULus 486b Listed
