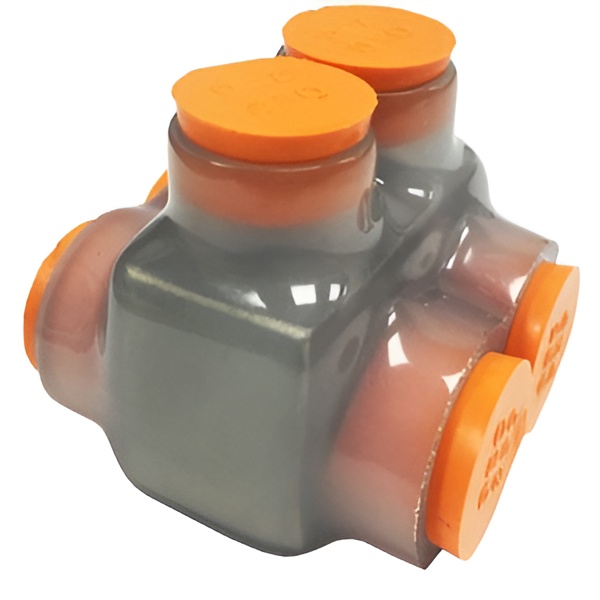

Morris 97392 Clear Multi Conductor Insulated Connector for Accurate Termination

Morris 97392 Clear Multi Conductor Insulated Connector ensures that your terminations are not only reliable but also visually verifiable. The clear insulation allows for instant confirmation that conductors are properly inserted, enhancing installation accuracy. Crafted from multi-port 6061-T6 aluminum, this dual-rated connector is compatible with both copper and aluminum wire, ensuring versatile use across various applications. The single-piece, clear molded insulation features a rugged, high-dielectric plastisol dipped coating that is resistant to chemicals and abrasion, providing durability in demanding environments. Pre-filled with an oxide inhibitor, this connector facilitates easy re-entry for changes, inspections, or troubleshooting, making it a favorite among professionals. Designed for ease of installation, removable plugs marked with wire sizes provide straightforward access, simplifying the process. With wire entry available from either side of the connector, flexibility is maximized. Rated for 600 volts and capable of handling temperatures from –49°F to 194°F, it accommodates a wide range of applications. ANSI C119.4 and cULus 486b listed, this connector guarantees safety and compliance. Ideal for indoor use, the PVC insulation minimizes the risk and costs associated with power outages due to improper connections. With dimensions of 2.37" height, 2.18" length, and 2.48" width, the Morris 97392 is an essential component for any electrical project.

With our Clear Multi Conductor Insulated Connector, you'll see your termination is right every time

• Wire Entry from Either Side of Clear Insulated Connector
• Clear Insulation allows Visual Confirmation that conductor is properly inserted
• Indoor Use Only
• Easy Re-Entry for Changes, Inspection or Troubleshooting
• PVC insulation reduces the likelihood & cost of power outages caused by improper or inconsistent insulated connections done manually in the field
• Rated for use with 194°F(90°C) Cables
• Insulated Aluminum Connector eliminates the need for time consuming manual taping, reducing installation time
• One Wire Per Terminal
• Removable Plugs marked with wire size provide easy access for installation.
• Single Piece Clear Molded Insulation with Rugged High-Dielectric Plastisol Dipped Coating is chemical and abrasion resistant
• Multi-Port 6061-T6 Aluminum Connector - CU9AL Dual Rated for use with Copper and/or Aluminum wire
• Pre-filled with Oxide Inhibitor
• 600 Volt
• Dimension Measurements = Inches
• Temperature range of –49°F to 194°F (–45° to 90°C)
• ANSI C119.4 & cULus 486b Listed
