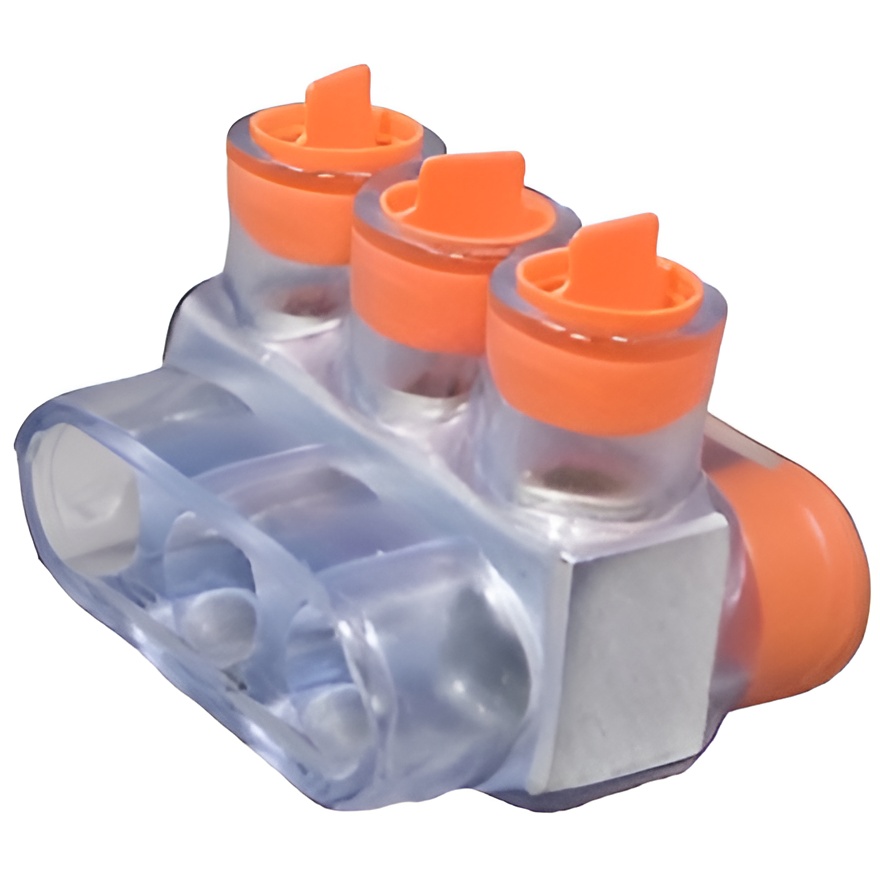

Morris 97394 Clear Multi Conductor Insulated Connector for Accurate Termination

Morris 97394 Clear Multi Conductor Insulated Connector offers a reliable solution for ensuring your electrical terminations are correct every time. Designed with clear insulation, this connector allows for visual confirmation that conductors are properly inserted, enhancing installation efficiency. Its multi-port, 6061-T6 aluminum construction is dual-rated for use with both copper and aluminum wire, making it versatile for various applications. The single-piece, clear molded insulation features a rugged high-dielectric Plastisol dipped coating, providing chemical and abrasion resistance. Pre-filled with an oxide inhibitor, this connector is designed for easy re-entry, facilitating changes, inspections, or troubleshooting without hassle. Removable plugs are conveniently marked with wire sizes to streamline installation. Capable of withstanding a temperature range of –49°F to 194°F (–45° to 90°C), the Morris 97394 ensures durability in various environments. The insulated aluminum design eliminates the need for time-consuming manual taping, significantly reducing installation time. With a wire range of 250 - 6 and a maximum voltage rating of 600 volts, this connector is ANSI C119.4 & cULus 486b listed for indoor use only. Optimize your electrical installations with the Morris 97394 Clear Multi Conductor Insulated Connector.

With our Clear Multi Conductor Insulated Connector, you'll see your termination is right every time

• Wire Entry from Either Side of Clear Insulated Connector
• Clear Insulation allows Visual Confirmation that conductor is properly inserted
• Indoor Use Only
• Easy Re-Entry for Changes, Inspection or Troubleshooting
• PVC insulation reduces the likelihood & cost of power outages caused by improper or inconsistent insulated connections done manually in the field
• Rated for use with 194°F(90°C) Cables
• Insulated Aluminum Connector eliminates the need for time consuming manual taping, reducing installation time
• One Wire Per Terminal
• Removable Plugs marked with wire size provide easy access for installation.
• Single Piece Clear Molded Insulation with Rugged High-Dielectric Plastisol Dipped Coating is chemical and abrasion resistant
• Multi-Port 6061-T6 Aluminum Connector - CU9AL Dual Rated for use with Copper and/or Aluminum wire
• Pre-filled with Oxide Inhibitor
• 600 Volt
• Dimension Measurements = Inches
• Temperature range of –49°F to 194°F (–45° to 90°C)
• ANSI C119.4 & cULus 486b Listed

Resources

• Catalog PDF page
• Spec Data Sheets
• Spec Sheet
