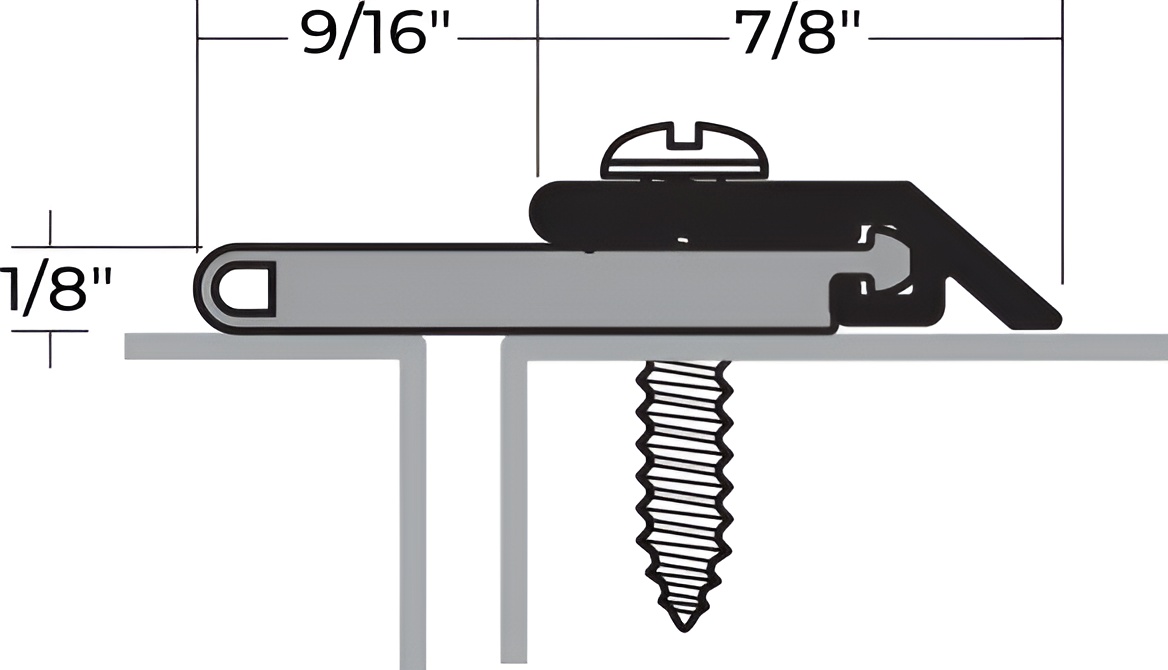

NGP 114SDKB 72" DKB-finish Aluminum Overlapping Astragal With Silicone Seal combines durability and functionality for commercial restroom applications. Crafted from aluminum alloy 6063 with a T5 temper, this astragal is designed to withstand harsh environments while ensuring excellent flexibility and memory, thanks to its Siloxane closed cell sponge silicone seal. With a robust temperature range of -100°F to 500°F, the NGP 114SDKB maintains its flexibility even under extreme conditions. This product is flame resistant and moisture resistant, making it ideal for use in areas equipped with FM200 or Halon Fire Suppression Systems. Additionally, it offers superior resistance to ozone, UV exposure, and aging, ensuring a long-lasting performance. This astragal is BHMA Certified to ANSI/BHMA A156.22 performance tests for heat and cold, ensuring compliance with industry standards. The dark bronze finish adds a touch of elegance, while the included #6 x 3/4" stainless steel sheet metal screws and slotted screw holes facilitate easy installation and adjustment. Whether you are outfitting a new restroom or upgrading existing partitions, the NGP 114SDKB is a reliable choice that meets both aesthetic and functional requirements.
Attributes
Application: Excellent flexibility and memory
BHMA: BHMA Certified to ANSI/BHMA A156.22 performance tests for heat and cold
Color: Silicone is black
Fasteners: #6 x 3/4" stainless steel sheet metal screws furnished
Finish: Dark bronze finish
Fire Rated: Recommended for areas using FM200 or Halon Fire Suppression Systems
Length: 72.0"
Material: Synthetic rubber polymer: Siloxane closed cell sponge
Moisture Resistant: YES
Resistance: Excellent resistance to ozone, UV and aging
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standard-3: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Standard-4: ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
Temperature Range: Temperature range -100°F to 500°F, remains flexible at extreme temperatures
