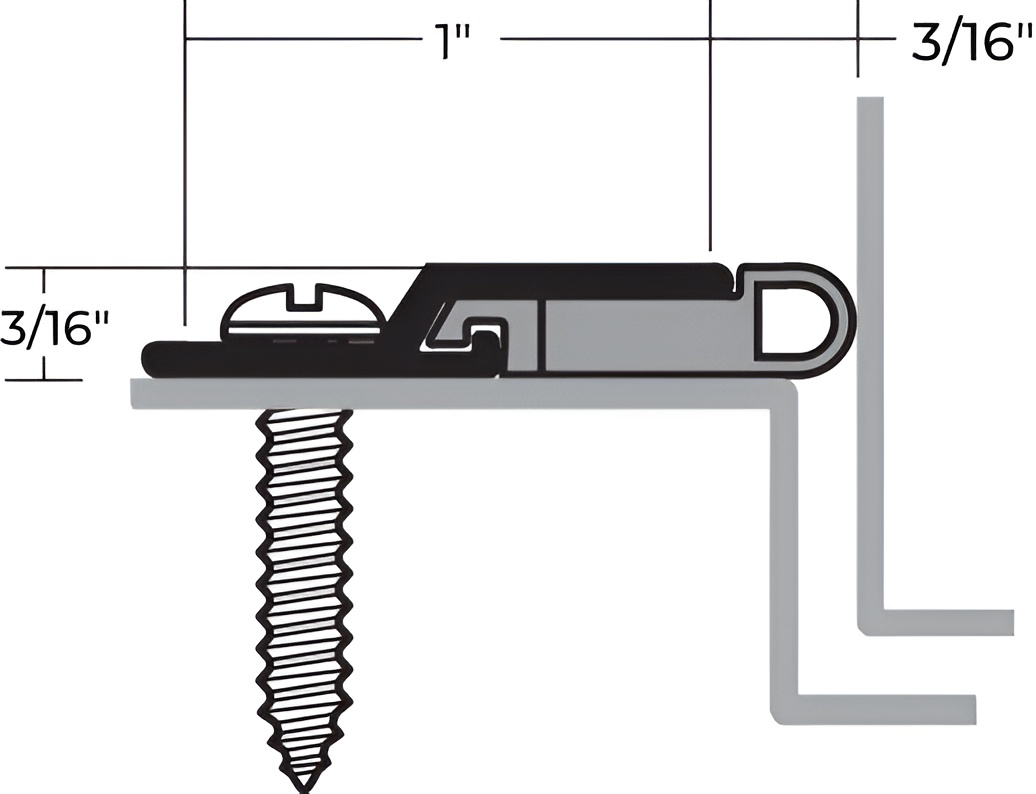

NGP 127SA 96" Anodized Aluminum Silicone Sponge Seal is engineered to provide exceptional performance in commercial restroom environments. Constructed from high-grade Aluminum Alloy 6063 with T5 temper, this seal is both durable and reliable. The innovative silicone sponge, composed of a synthetic rubber polymer, offers excellent flexibility and memory, ensuring a tight fit even in the most demanding conditions. Designed to withstand extreme temperatures ranging from -100°F to 500°F, this seal remains flexible, making it ideal for a variety of applications. Its flame-resistant and moisture-resistant properties enhance safety and longevity, while its resistance to ozone, UV, and aging guarantees enduring performance. The NGP 127SA is BHMA Certified to ANSI/BHMA A156.22 standards, ensuring compliance with industry performance tests for heat and cold. For easy installation, it comes with #6 x 3/4" stainless steel sheet metal screws, and slotted screw holes allow for precise adjustments. This product is particularly recommended for areas utilizing FM200 or Halon fire suppression systems, providing peace of mind in fire safety. With its sleek anodized aluminum finish and black silicone, the NGP 127SA seamlessly integrates into any restroom design while enhancing functionality.
Attributes
Ship via: No UPS - Common Carrier Only
Application: Excellent Flexibility and Memory
BHMA: BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat and Cold
Color: Silicone is Black
Fasteners: #6 x 3/4" Stainless Steel Sheet Metal Screws Furnished
Finish: Anodized Aluminum
Fire Rated: Recommended for Areas Using FM200 or Halon Fire Suppression Systems
Length: 96.0"
Material: Synthetic Rubber Polymer: Siloxane Closed Cell Sponge
Moisture Resistant: YES
Patented: Patent Pending Microcellular Silicone
Resistance: Excellent Resistance to Ozone, UV and Aging
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standard-3: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Standard-4: ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
Temperature Range: Temperature Range -100°F to 500°F, Remains Flexible at Extreme Temperatures
